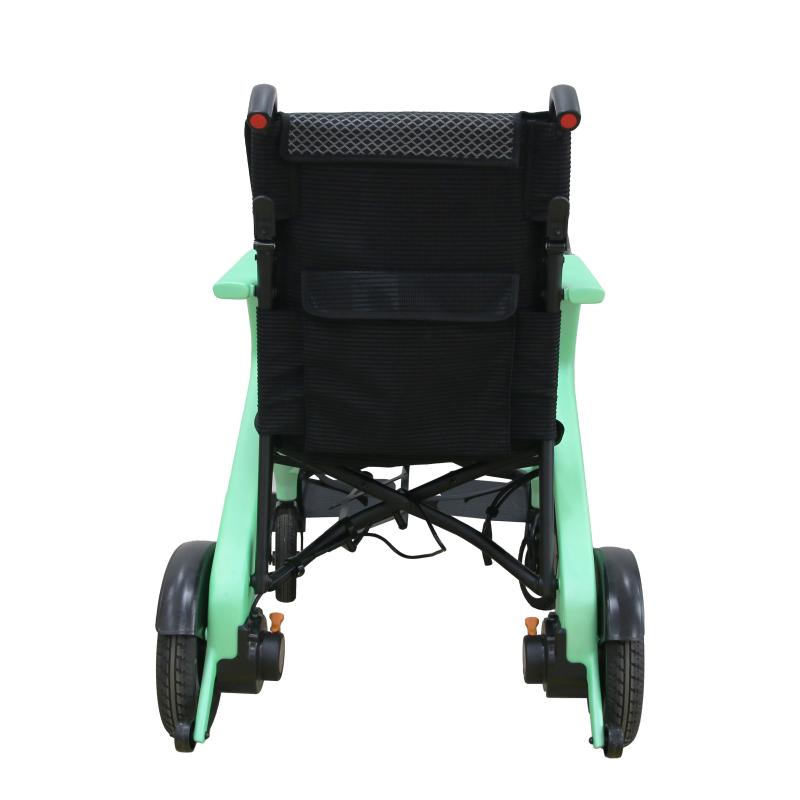

This collapsible wheelchair features an innovative and minimalist structural design. The overall body is lightweight and aesthetically pleasing, making it easy to carry and move.

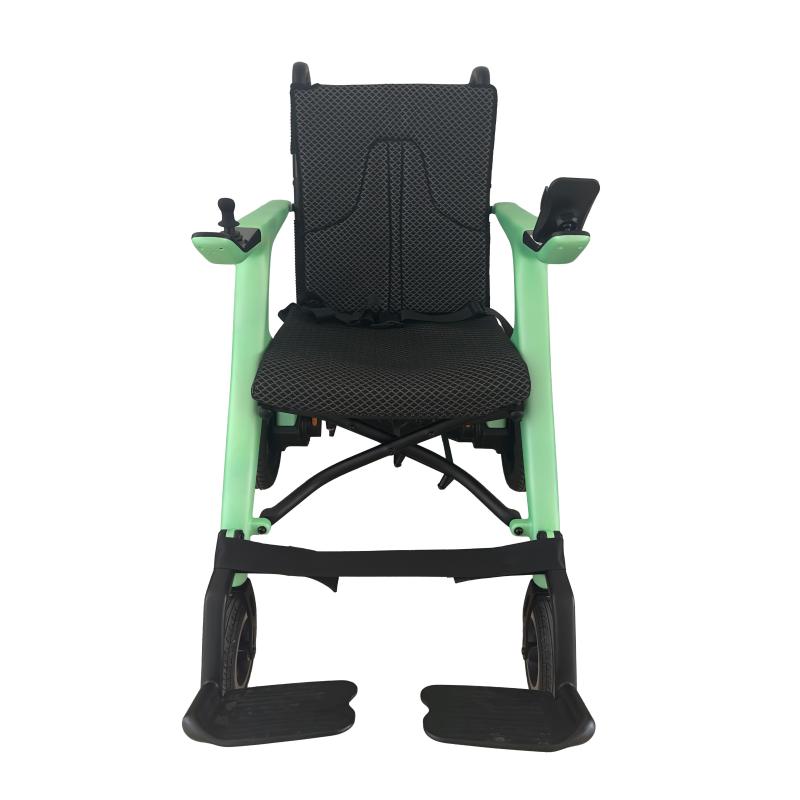

The main body of this lightweight electric wheelchair is manufactured using high-strength carbon fiber integral molding technology, embodying true structural innovation. The carbon fiber tubes, while exceptionally thin with a wall thickness of only 2 mm, maintain outstanding strength, providing the entire machine with excellent portability along with an impressive load capacity of up to 136kg. With its foldable footrests and compact folding design, this carbon fiber electric wheelchair can be conveniently stored in a car trunk, facilitating spontaneous outings to parks, appointments, or short trips.

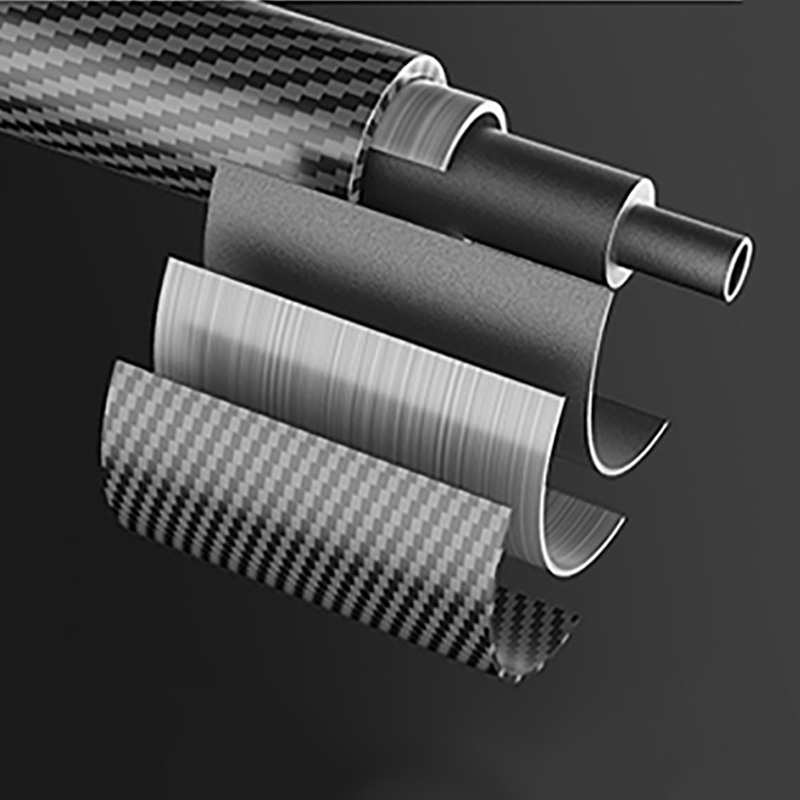

2 mm thick ultralight carbon fiber tube, high-temperature resistant, wear- resistant, corrosion-resistant

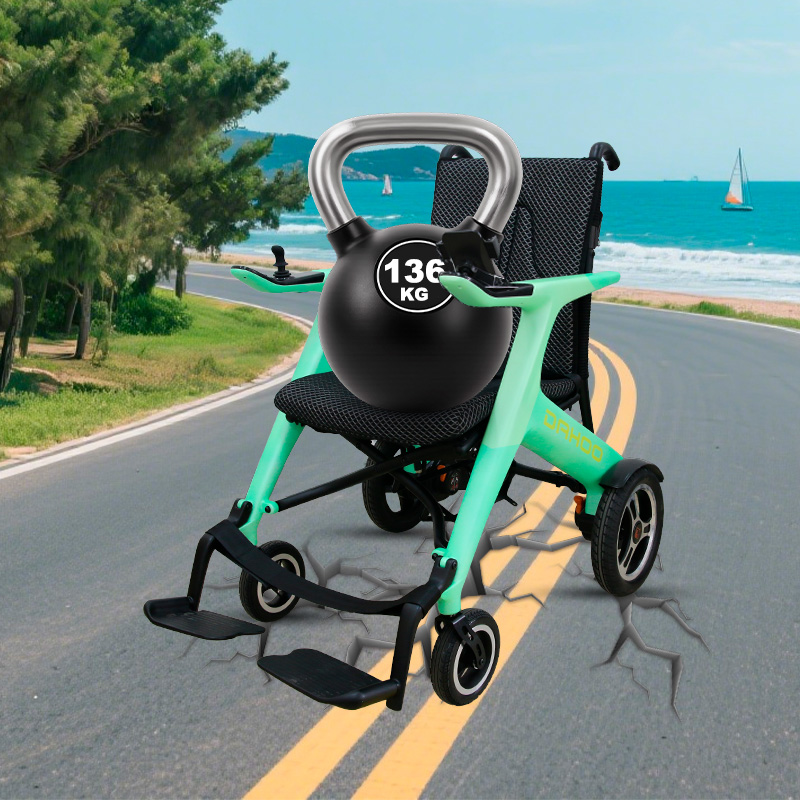

The load-bearing capacity is 136 kg, suitable for overweight individuals

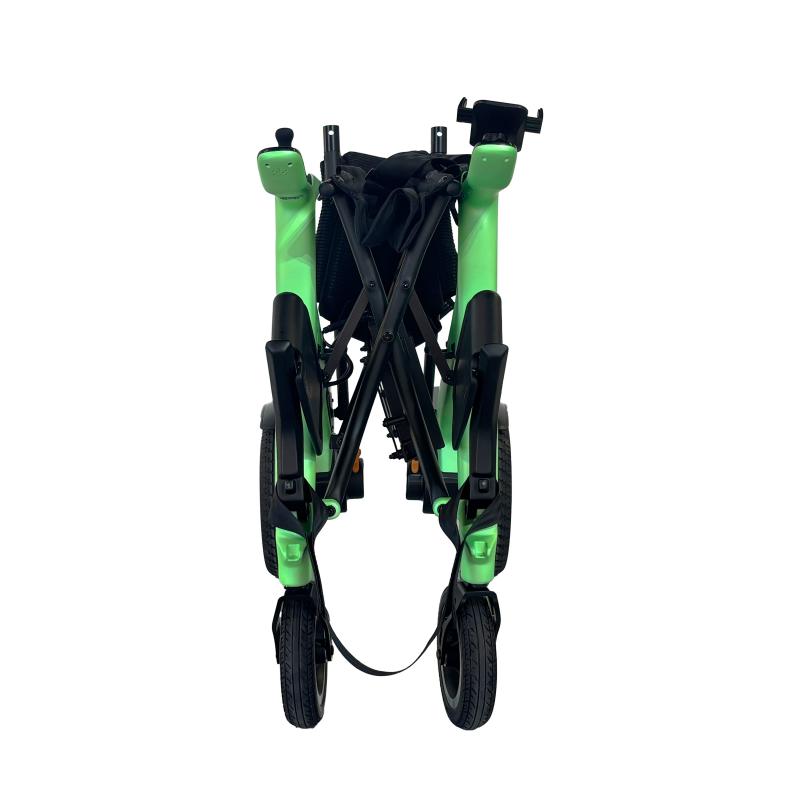

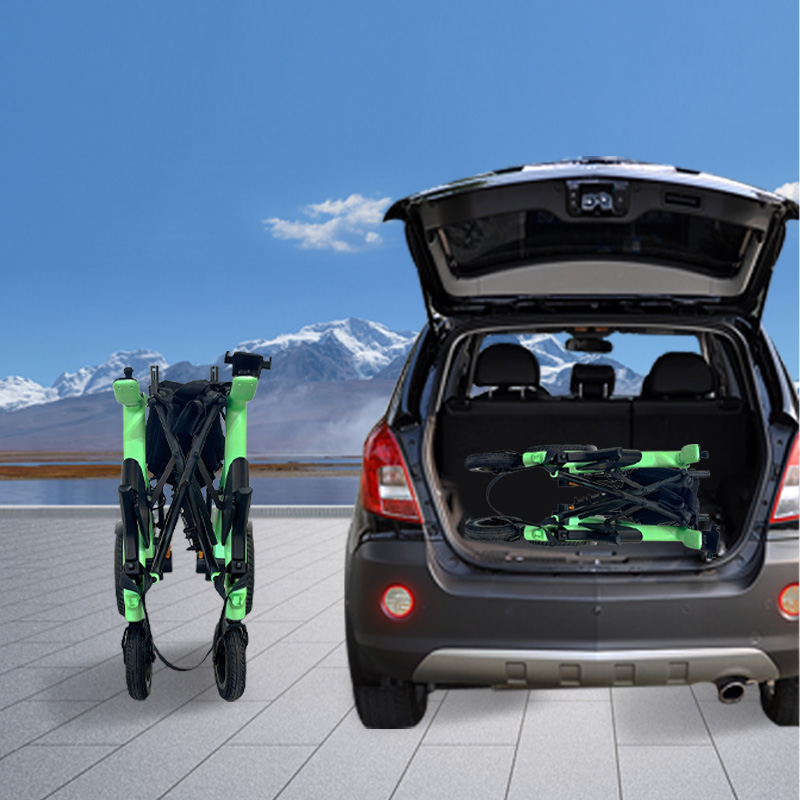

Foldable and portable, with a compact size that can be placed in the trunk

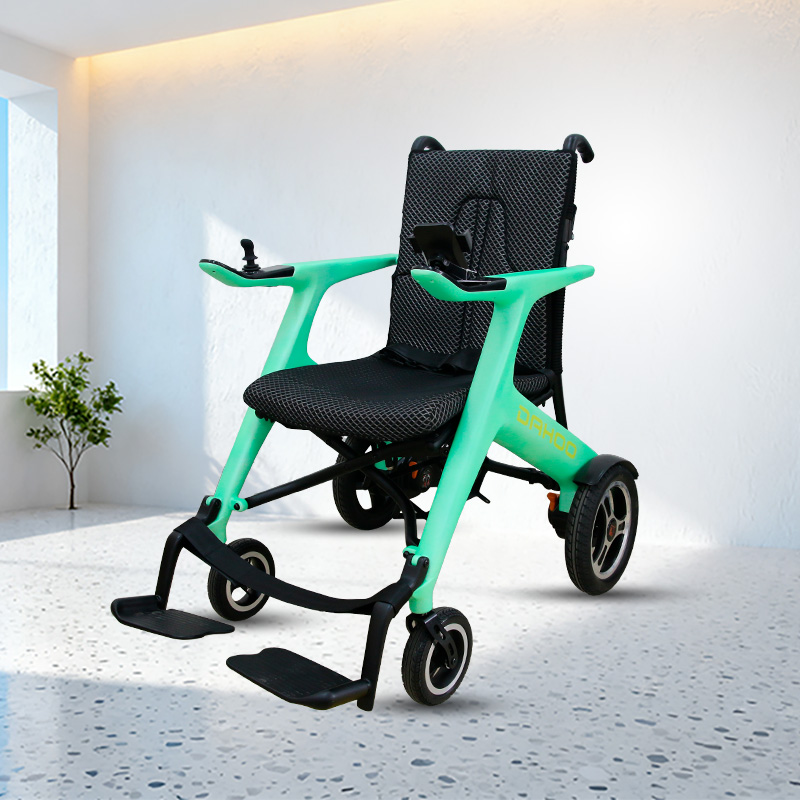

The entire electric wheelchair features a contrasting color combination of a mint green frame and black breathable mesh fabric, balancing modern aesthetics with practical functionality. The seat cushion and backrest are sewn together with high-strength nylon fabric and mesh fabric, and the inner layer is reinforced with a reinforcing canvas inter layer. While achieving an overall tensile strength of up to 5000 N, it ensures a soft, breathable, anti-slip and smooth riding experience. As a carbon fiber wheelchair, its seat cushion and backrest can be independently disassembled for convenient cleaning and drying, making daily maintenance effortless and worry-free.
This collapsible wheelchair is equipped with a real-time speed display screen and an intelligent control stick, the clear keys combined with the sensitive joystick make the operation more convenient. In addition, it is equipped with a mobile phone stand, allowing you to easily watch TV series, make video calls or navigate during your trip.
The overall tensile strength of the seat cushion is as high as 5000 N

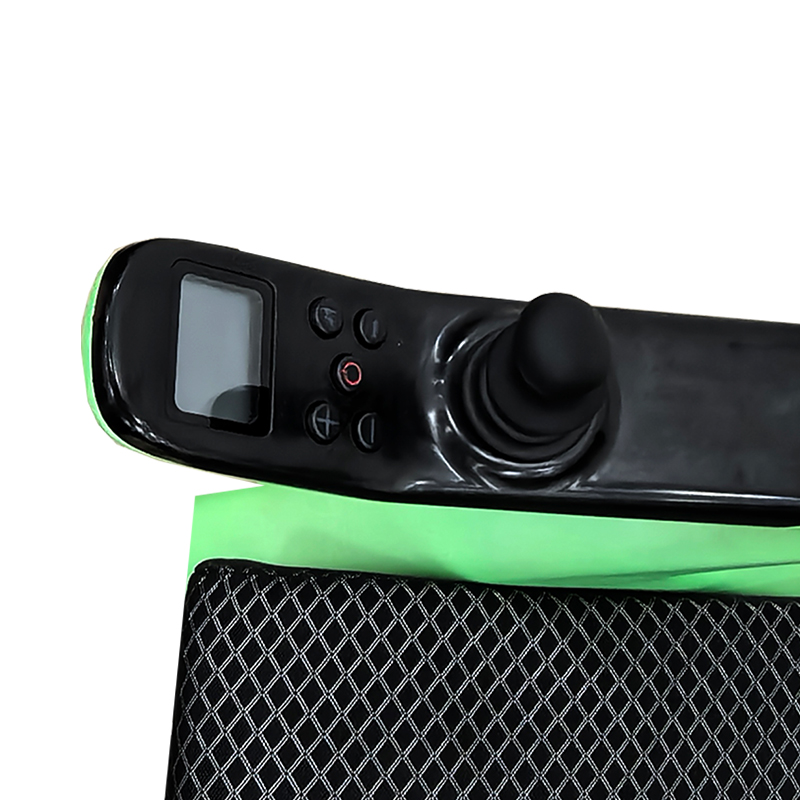

Real-time speed display, low-battery intelligent brake control

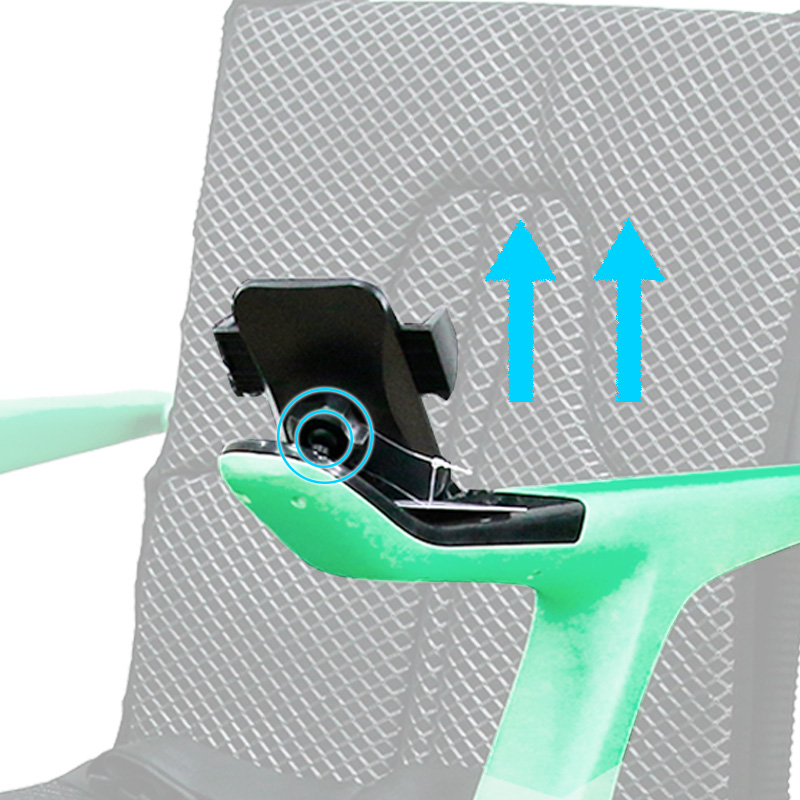

Mountable phone holder
In terms of the driving system, this carbon fiber wheelchair features 7.5-inch airless PU tires and aluminum alloy rims on the front wheels. Combined with shock-absorbing springs and universal joints, it offers both flexible steering and effective shock absorption. The rear wheels are equipped with 12-inch high-elasticity PU tires and aluminum alloy rims. While optimizing comfort, they work in coordination with the rigid structure of the vehicle body to ensure overall stability during driving. The vehicle has a solid structure and is made of wear-resistant materials. While ensuring safety and reliability in daily use, it can also stand the test of time.
Equipped with a 300W flange brushless motor and an electromagnetic braking system, it is lightweight, energy-efficient and powerful, capable of easily handling complex terrains and ensuring smooth and stable passage of the electric wheelchair in various road conditions.

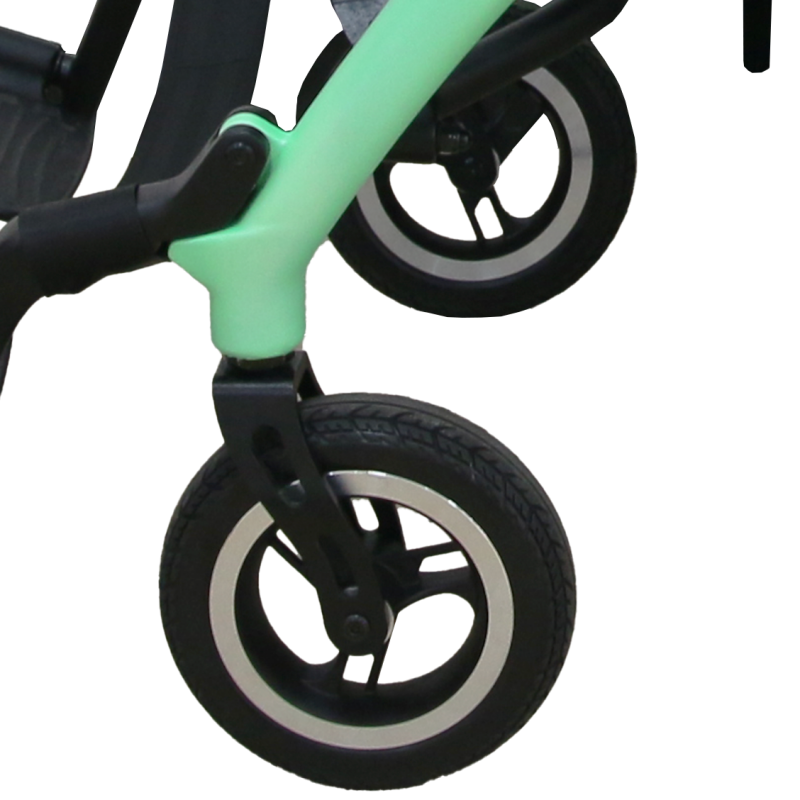

Equipped with 7.5-inch airless PU tires and aluminum alloy rims

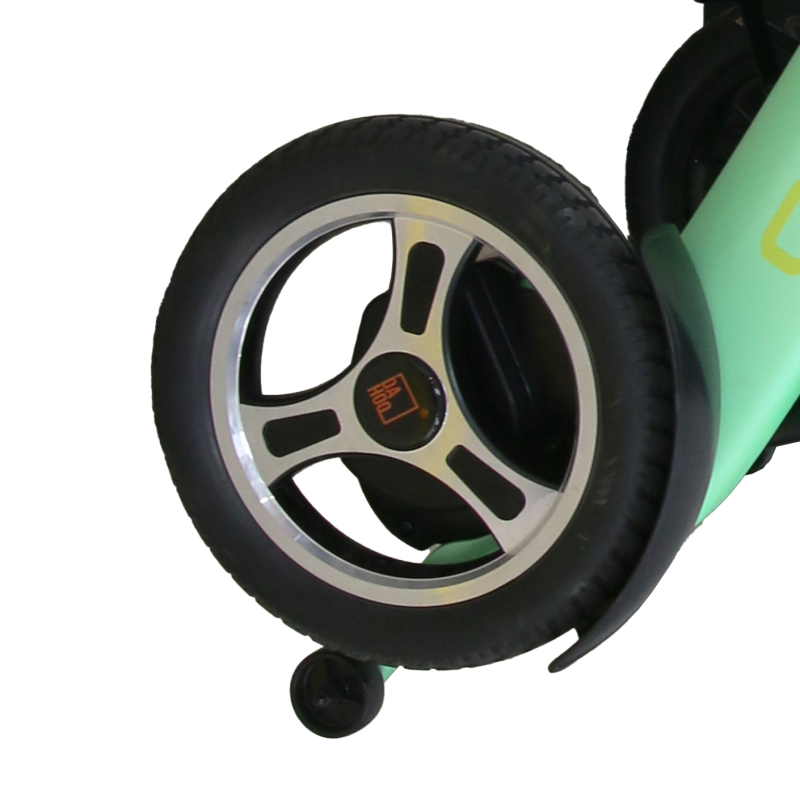

Rear wheels adopt 12-inch high-elasticity PU tires and aluminum alloy rims

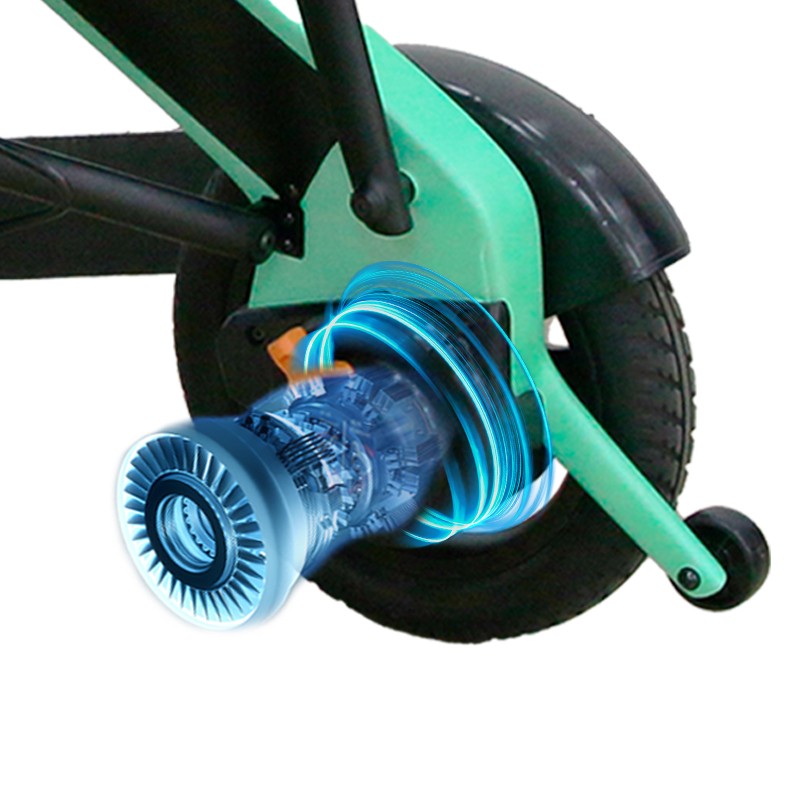

300 W brushless motor with electromagnetic brakes, suitable for complex terrains
| Name | Parameters | Name | Parameters | Name | Parameters |
| Total length | 1090±10 mm | Angle of the footrest to the seat surface | 106° | Turn diameter | ≤1800 mm |
| Overall width | 700±10 mm | Handrail structure front position | 550±10 mm | Theoretical driving distance | 15 km |
| Total height | 990±10 mm | Loading capacity | 136 kg | Endurance | 15 km |
| Folded length | 900±10 mm | Application type | þindoor ¨ outdoor | Carton size | 950*430*930 mm |
| Folded width | 390±10 mm | Maximum speed | ≤4.5 km/h | Net weight | 18.8 kg |
| Folding height | 830±10 mm | Braking performance of horizontal road surface | ≤1.0 m | Weight of important components | 16.4 kg |
| Backrest height | 480±10 mm | Maximum safety gradient braking | ≤1.6 m (3°) | Front wheel | 7.5 Inches |
| Seat plane angle | 4° | Braking performance | 6° | Back wheel | 12 Inches |
| Effective seat width | 450±10 mm | Static stability | ≥6° | Frame material | Carbon fiber tube |
| Effective seat depth | 440±10 mm | Dynamic stability | ≥3°(without tilting) | Motor | Brushless motor |
| Front seat surface height | 480±10 mm | Obstacle crossing height | ≥25 mm | Motor power | 150W*2pcs |
| Backrest angle | 12° | Over-groove width | 100 mm | Battery | 24 V 12 AH |
| Foot support to seat distance | 500±10 mm | Climbing ability | ≥3° | ||
CE, ISO9001, ISO13485, US FDA, ANVISA, TGA, Free Sale Certificate
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
