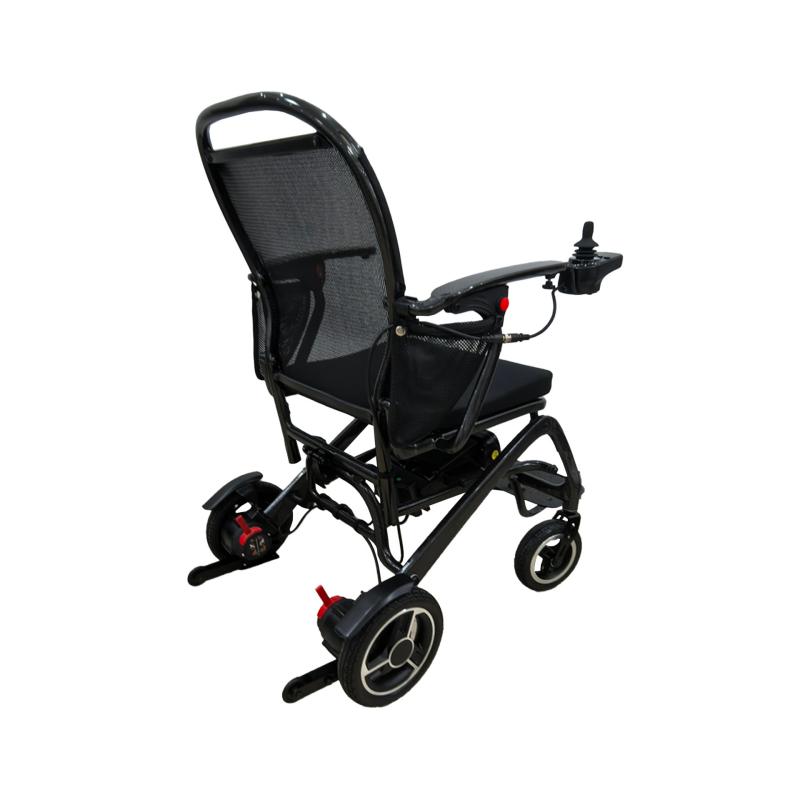

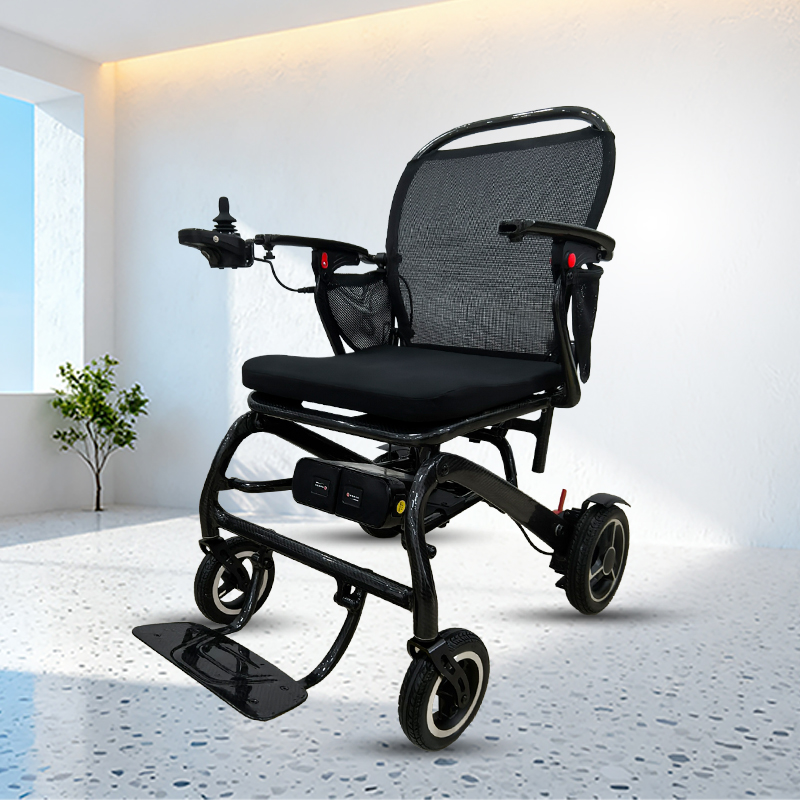

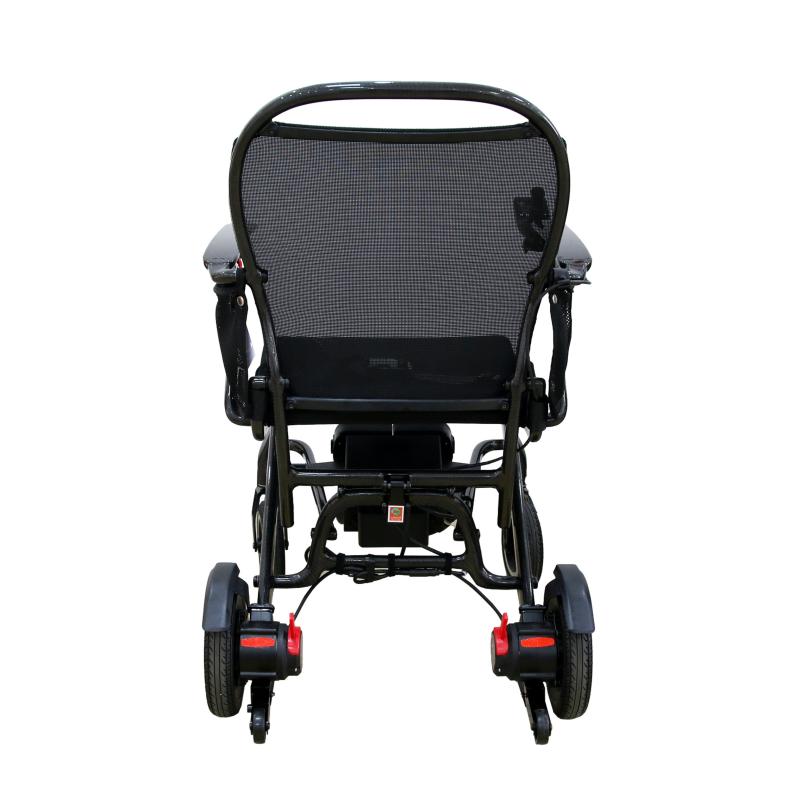

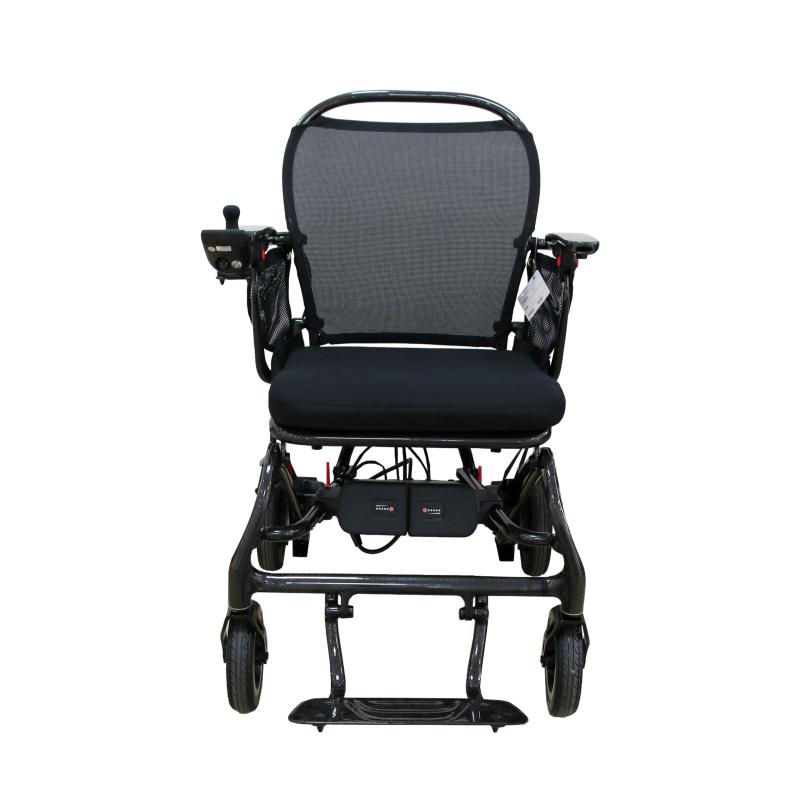

Engineered for Convenient Lightweight Carbon Fiber Electric Wheelchair
Crafted from high-strength carbon fiber, the main frame of this electric wheel chair provides exceptional vibration absorption, effectively dampening subtle road vibrations for a noticeably smoother and more comfortable ride than traditional metal frames—ideal for extended daily use. With an average wall thickness of 1.8 mm, the frame strikes an optimal balance between lightweight design and structural strength, supporting a robust load capacity of 300 lbs (136 kg). It is rust-resistant and performs in various climates and environments. The carbon fiber electric wheelchair frame showcases a refined 3K textured weave finish with a glossy clear coat, offering both a premium technological aesthetic and enhanced resistance to aging and oxidation.
Average wall thickness of 1.8 mm
With a 300 lbs (136 kg) load capacity
Lightweight rust-proof construction with 3K glossy
The foldable frame design greatly improves everyday convenience while offering superior portability and space adaptability. When folded, the frame becomes compact, weighing just 15.6 kg in total, transforming it into portable electric wheel chairs. Featuring flip-up armrests, it significantly lowers the risk of falls during transfers, enhances daily mobility, and promotes quality of life and independence through meticulously considered details.

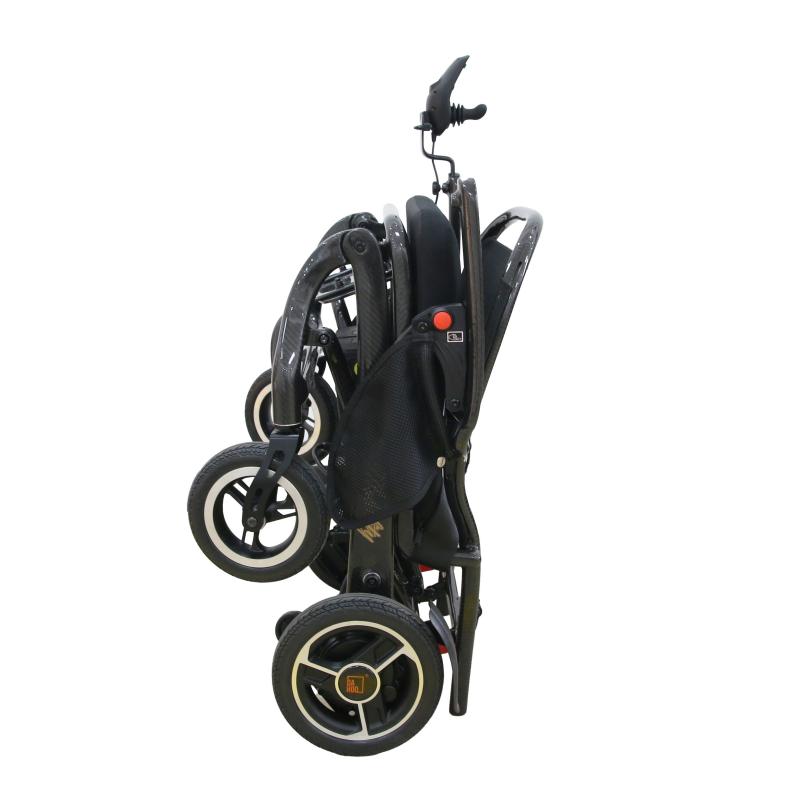

The 15.6 kg frame folds compactly for easy carrying and storage
Flip-up armrests simplify transfers and enhance daily independence
The 105° ergonomic backrest achieves a scientific balance of comfort, health, and dynamic stability, making it a classic configuration for market mobile wheelchair. Paired with a breathable mesh Teslin fabric seat cushion, this carbon wheelchair ensures ventilation, quick-drying, and easy cleaning, providing reliable support for everyday comfort and well-being.
The 105° ergonomic backrest integrates comfort, health, and stability
The breathable mesh cushion offers ventilation, quick-drying, and easy cleaning

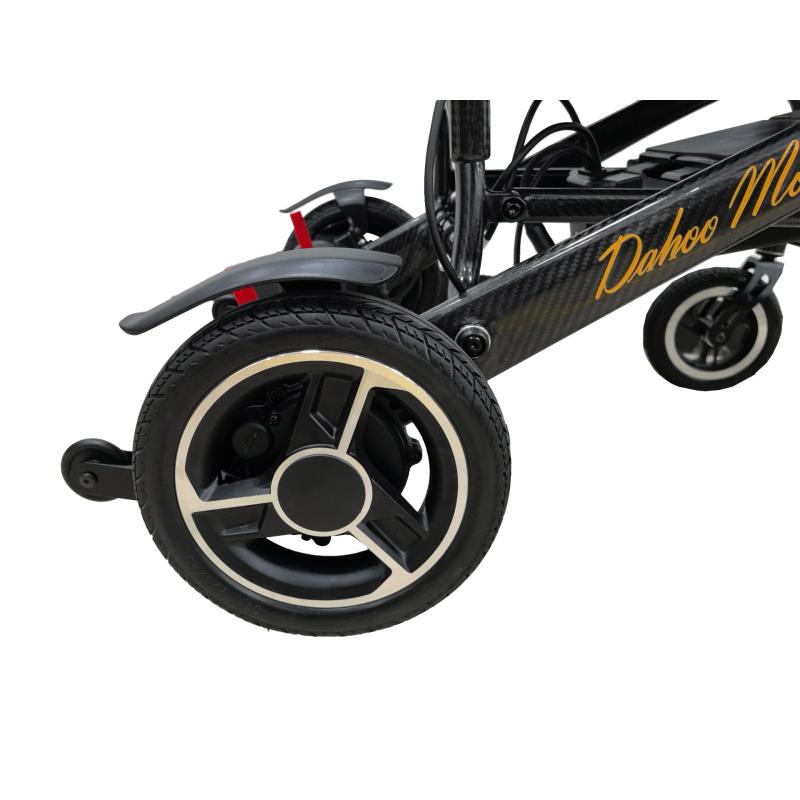

The electric wheel chair is equipped with a 500W brushless motor that delivers powerful and energy-efficient performance, offering a range of up to 25 km. It seamlessly switches between electric and manual modes for versatile use. Paired with a 7″ front hub featuring PU tires and a swivel caster for responsive maneuverability and precise steering, along with 8.5″ rear wheels and an integrated chassis design, this carbon wheelchair ensures comfort, stability, and reliability across diverse terrains.

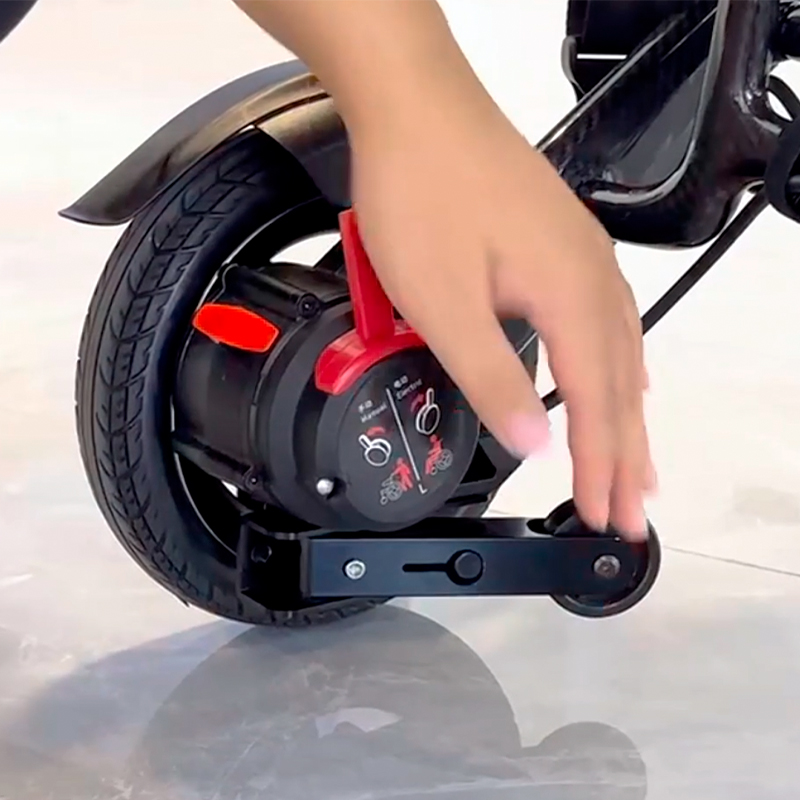

A 500W brushless motor delivers a 25 km range with one-touch electric/manual switching
Air-free PU tires, suitable for city streets and indoor floors
Equipped with an intelligent electromagnetic braking system, it stops immediately when released, making operation both convenient and safe. This electric wheel chair features a detachable lithium battery with real-time power display, allowing usage status to be clearly understood at a glance. In addition, the foldable anti-tip wheels further enhance its portability and operational stability.
Instant-stop electromagnetic brakes with dual 10AH batteries & real-time monitoring
Foldable anti-tip wheels
Name | Parameters | Name | Parameters | Name | Parameters |

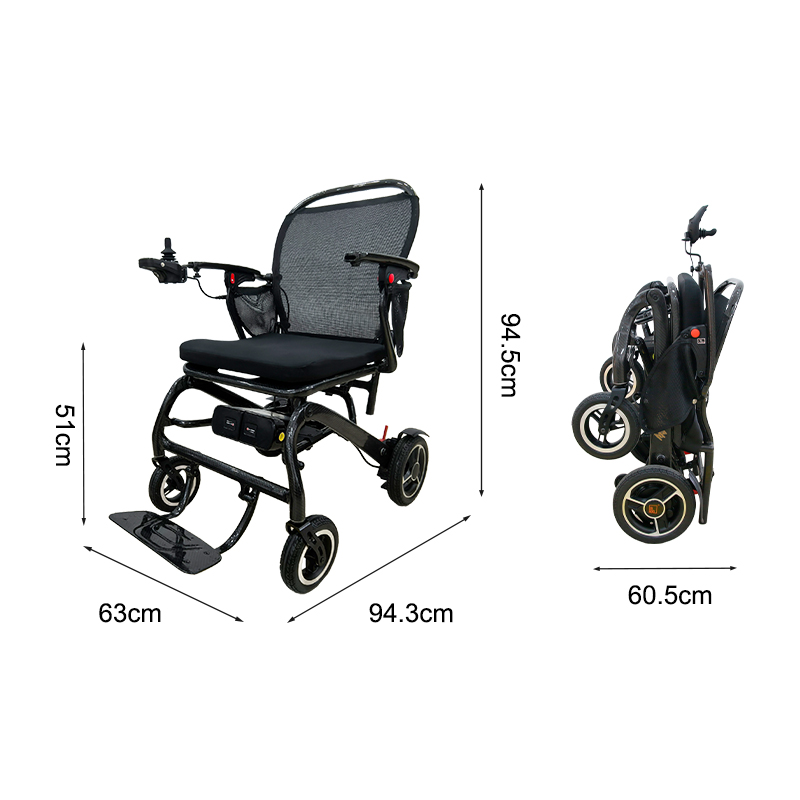

Total length | 94.3cm | Angle of the footrest to the seat surface | 102° | Turn diameter | ≤1800 mm |
Overall width | 63cm | Handrail structure front position | 31cm | Theoretical driving distance | ≥10 km |
Total height | 94.5cm | Bearing weight | 136kg | Endurance | 25 km |
Folded length | 60.5cm | Application type | þindoor ¨ outdoor | Carton size | 630*420*810mm |
Folded width | 72.6cm | Maximum speed | ≤4.5 km/h | Net weight | 15.6kＧ |
Folding height | 38.6cm | Braking performance of horizontal road surface | ≤1.0m | Height from armrest to seat | 226mm |
Backrest height | 48.8cm | Maximum safety gradient braking | ≤1.6m（3°） | Front wheel | 7 Inches |
Seat plane angle | 4.6° | Braking performance | 6° | Back wheel | 8.5 Inches |
Effective seat width | 43.9cm | Static stability | ≥6° | Frame material | Carbon fiber |
Effective seat depth | 42.5cm | Dynamic stability | ≥3°(without tilting) | Motor | Brushless motor |
Front seat surface height | 51cm | Obstacle crossing height | ≥25 mm | Motor power | 250W*2pcs |
Backrest angle | 110° | Over-groove width | 100 mm | Battery | Lithium battery 10AH*2 |
Foot support to seat distance | 41.5cm | Climbing ability | ≥3° |
CE, ISO9001, ISO13485, US FDA, ANVISA, TGA, Free Sale Certificate
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
