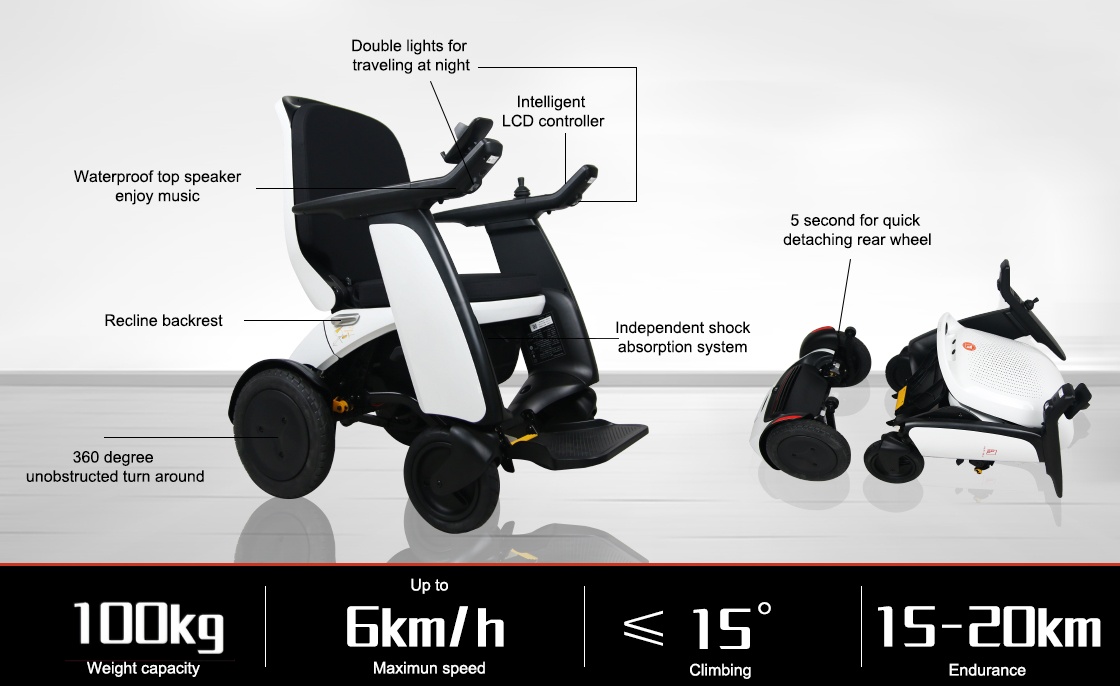

The intelligent wheelchair features a 360-degree unobstructed turning capability and an independent shock absorption system.

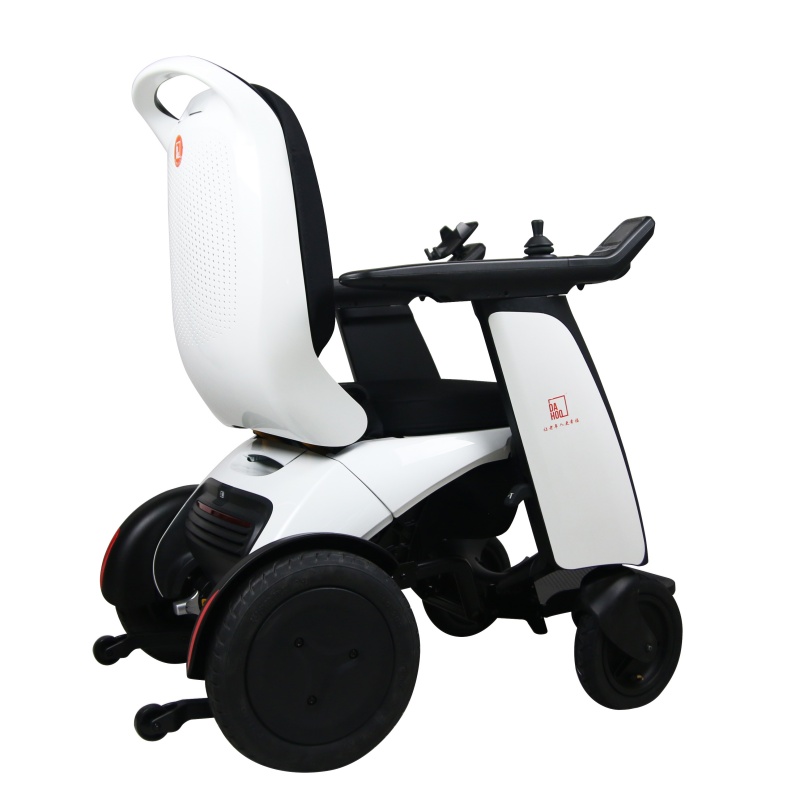

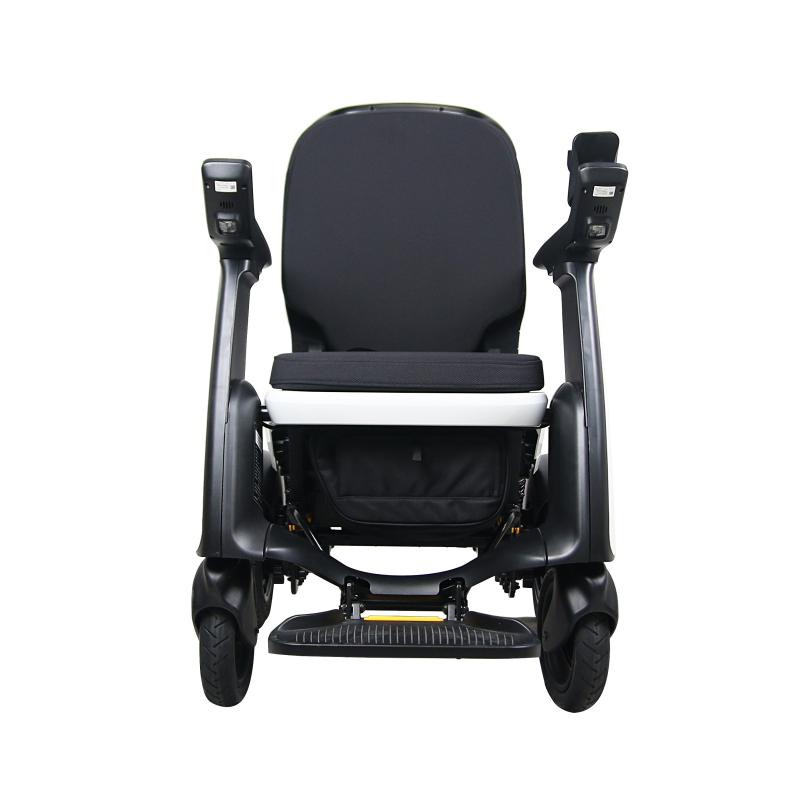

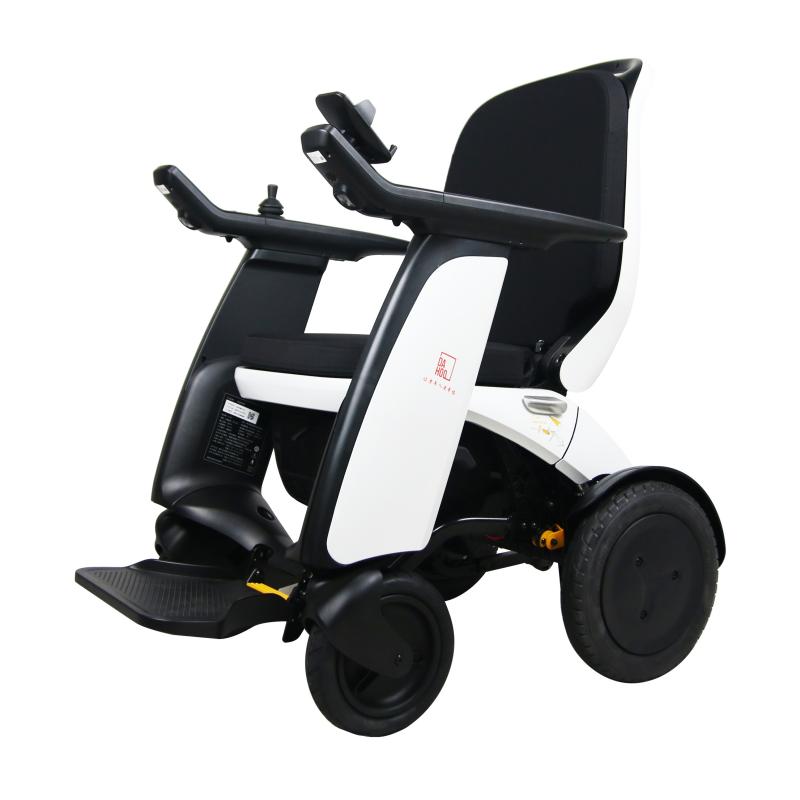

The electric wheelchair features a body shell with a smooth, curved design and no sharp edges, ensuring both safety and a lightweight appearance. Its "one-piece wrapping" armrests offer an anti-slip texture and can be flipped upward for easy entry and exit. The footrests are foldable and can be retracted when not in use to save space. The wheels follow a 'small front, large rear' configuration, with the large rear wheels equipped with black anti-slip treads for enhanced stability.

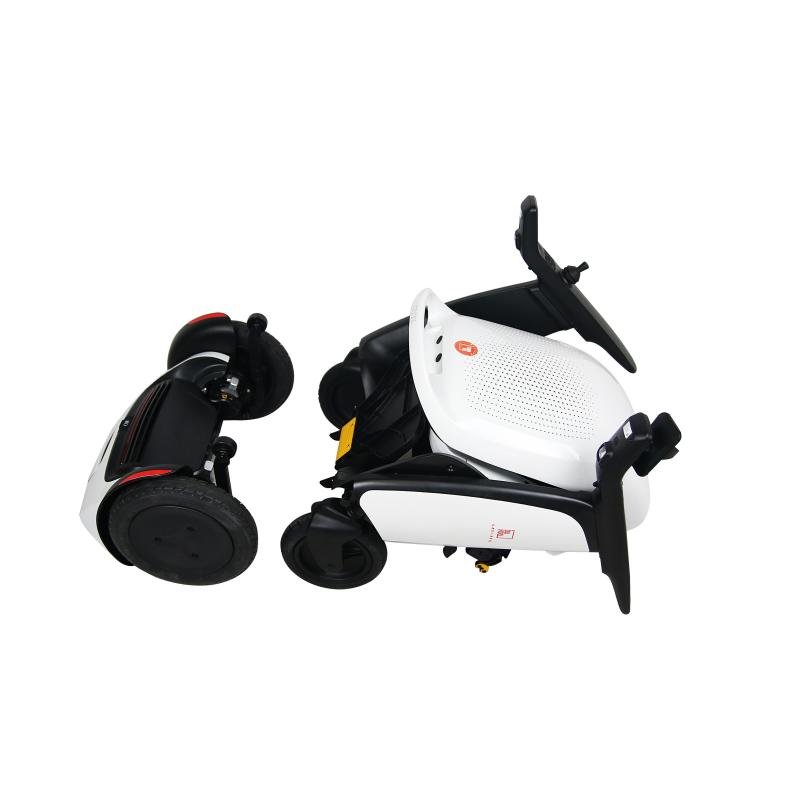

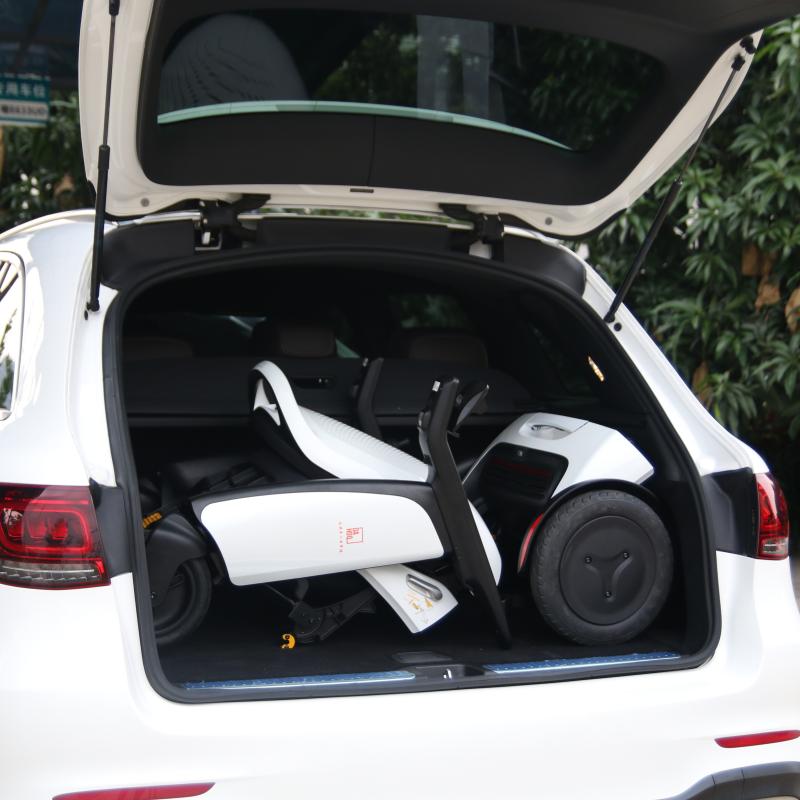

Assembly and disassembly of this collapsible wheelchair can be completed in just two steps. Whether it’s being placed easily into a car trunk during road trips, stored compactly at home, or quickly handled during public transit transfers, the 5-second quick-disassembly system makes travel for users with mobility needs as simple and convenient as daily commuting.

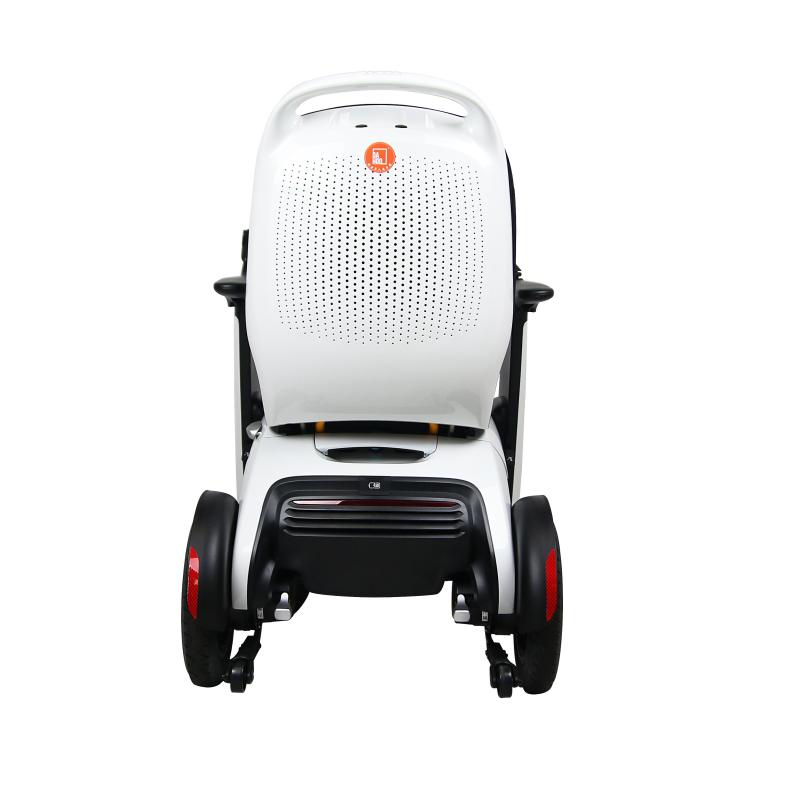

Streamlined body

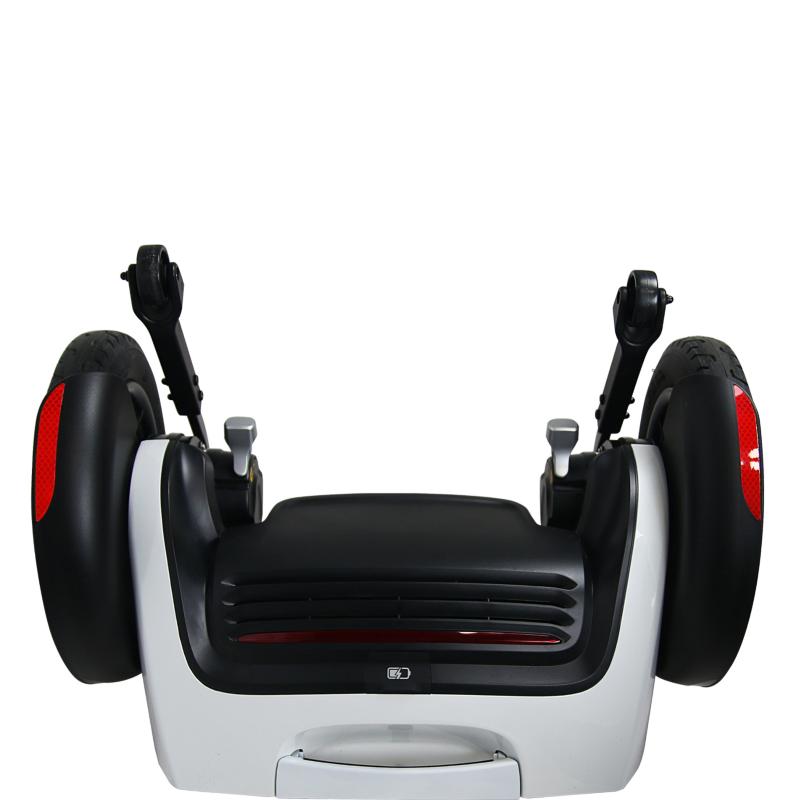

Removable rear wheel

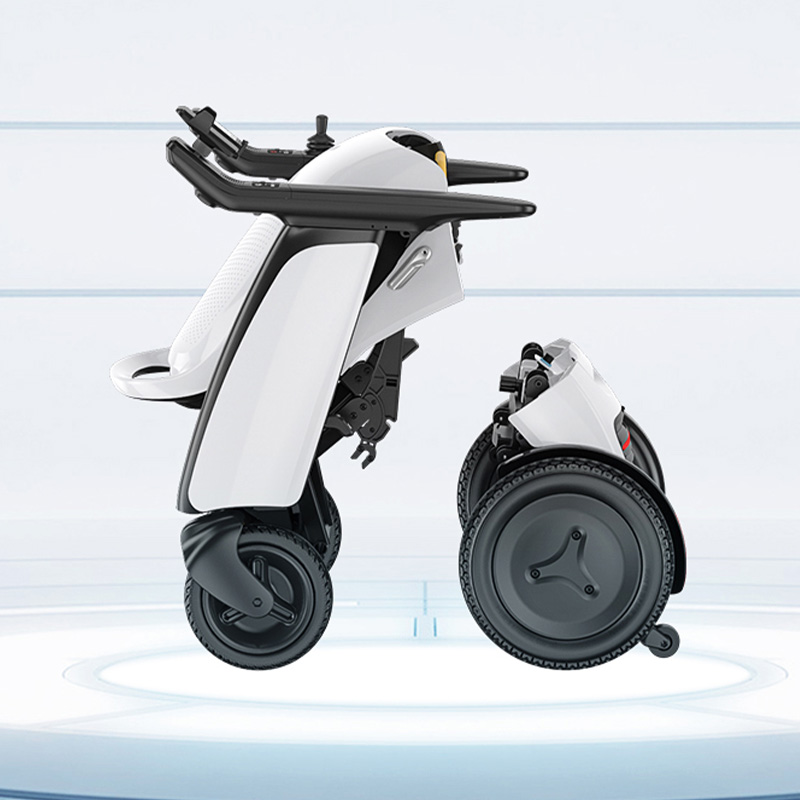

Quick disassembly in 5 seconds, easy transfer
The backrest of this compatible wheelchair can be freely adjusted between 90° and 135°. The upright mode meets the needs of daily work and life. Tilting backward to a comfortable angle can immediately relieve the pressure on the back and waist, making people who sit for a long time feel less tired. The scientific reclining angle design aims to distribute spinal pressure, relax muscle groups, promote blood circulation and optimize breathing efficiency, significantly enhancing comfort and health during long rides.

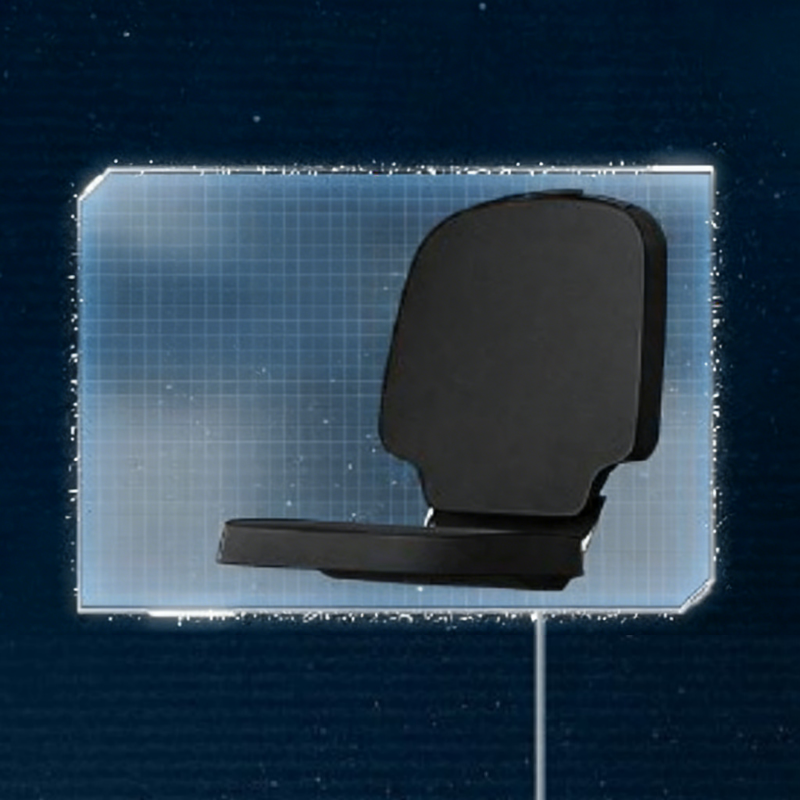

Both the seat cushion and backrest of this intelligent wheelchair are designed for easy removal, allowing for convenient separate cleaning and air-drying to maintain freshness with minimal effort. This design also enables the replacement of individual worn parts, helping to reduce long-term maintenance costs. Once disassembled, the wheelchair’s storage footprint is minimized, and accessories can be carried separately for added convenience.
The backrest can be freely adjusted between 90° and 135°

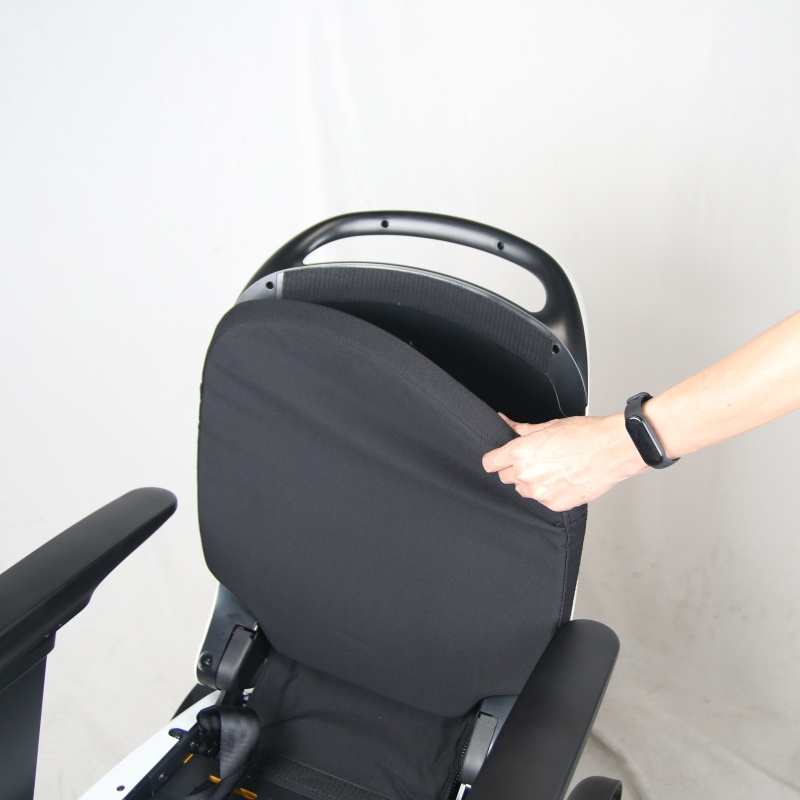

Detachable backrest

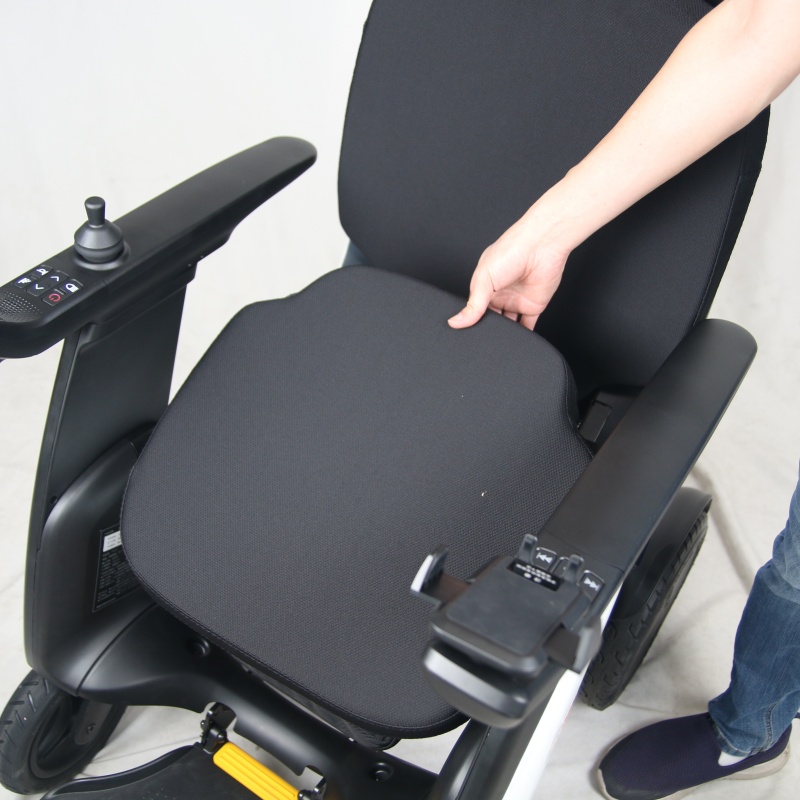

Detachable seat cushion
This multifunctional wheelchair is equipped with a rear-wheel shock absorption system and thickened high-elasticity seat cushions, effectively filtering out road bumps to ensure smooth driving, comfortable riding, and a nearly silent travel experience. Meanwhile, thanks to the FOC magnetic induction control system, the vehicle features outstanding precise handling, enabling it to move freely and flexibly through narrow Spaces and corners.

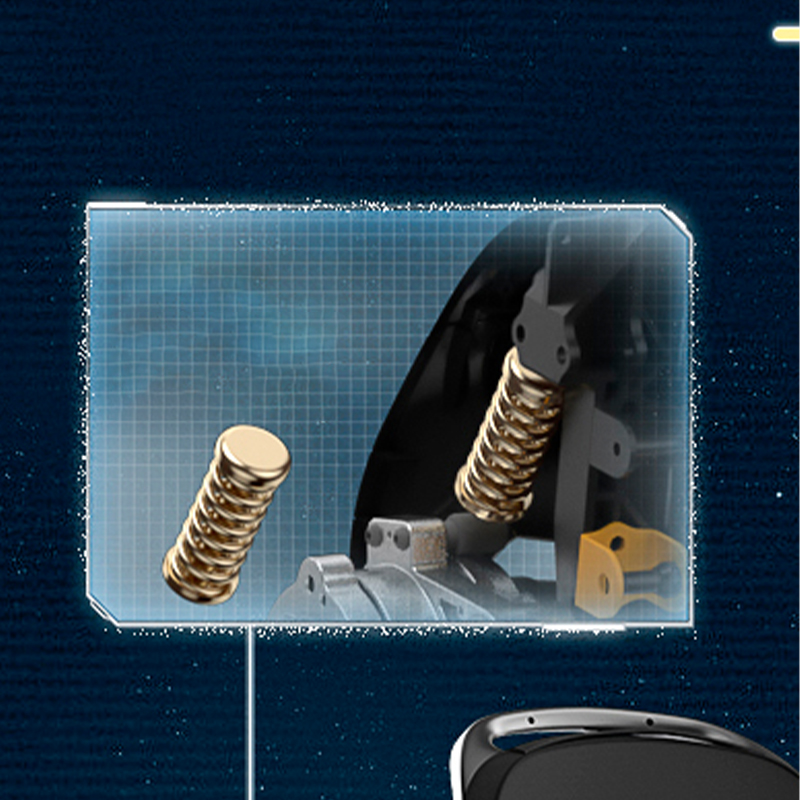

Shock absorption system
High-elasticity seat cushions

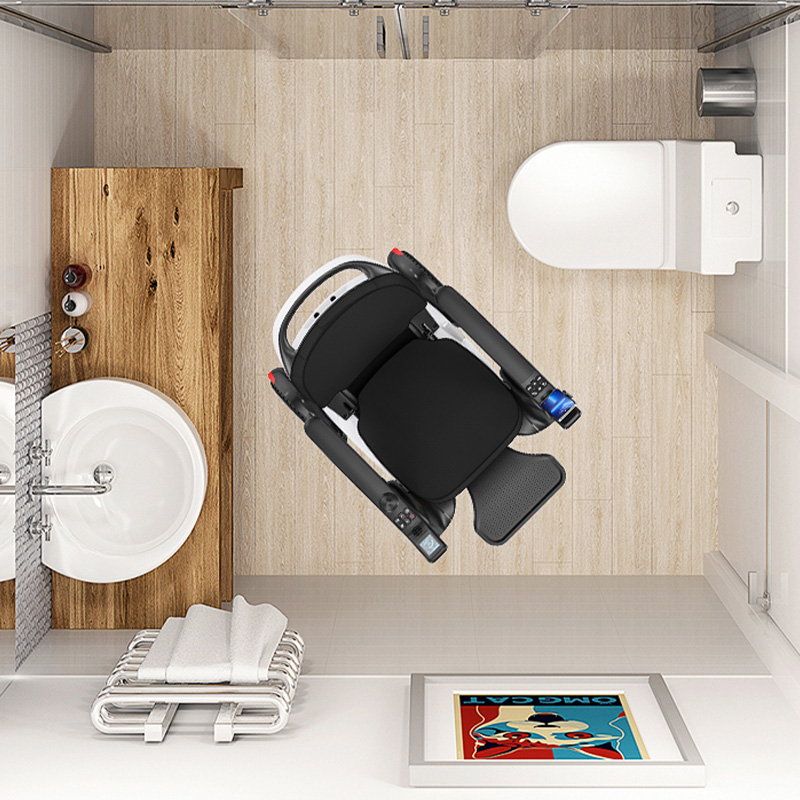

360 degree unobstructed turn around
One-click switch between manual and self-driving modes. With just a light press, even first-time users can easily push it. Automotive-grade lighting system, effectively expanding the warning range by more than 6 meters, with triple light protection, ensuring clear penetration even in rainy and foggy weather. The taillights are equipped with high-reflective stickers, adding safety guarantees for night travel. A mobile phone stand is set at the handrail, combined with a surround sound system, providing both driving guidance and entertainment. And this multifunctional electric wheelchair is also equipped with a shopping bag.

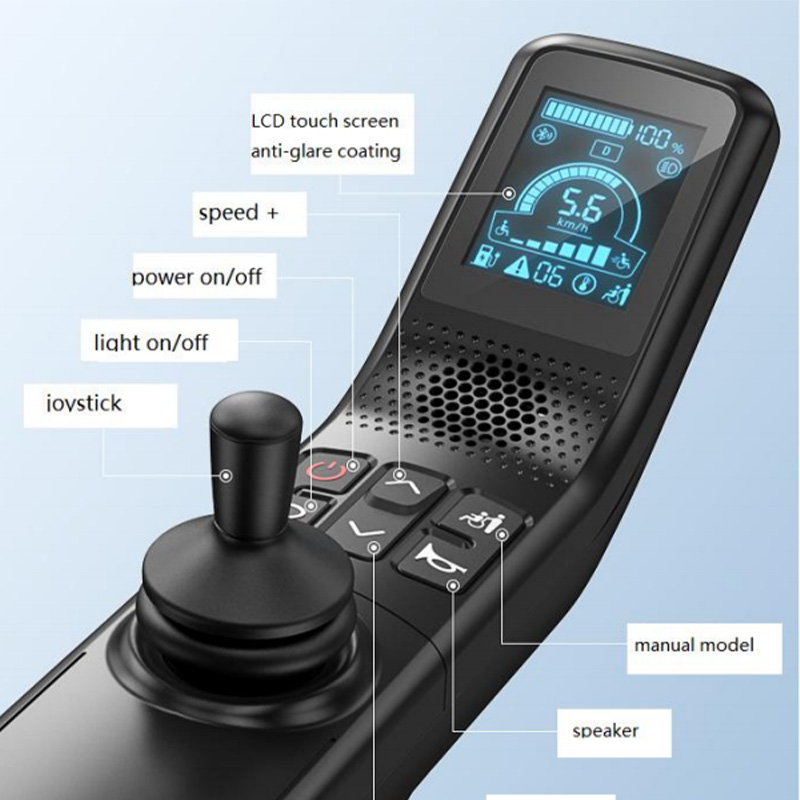

Intelligent LCD controller

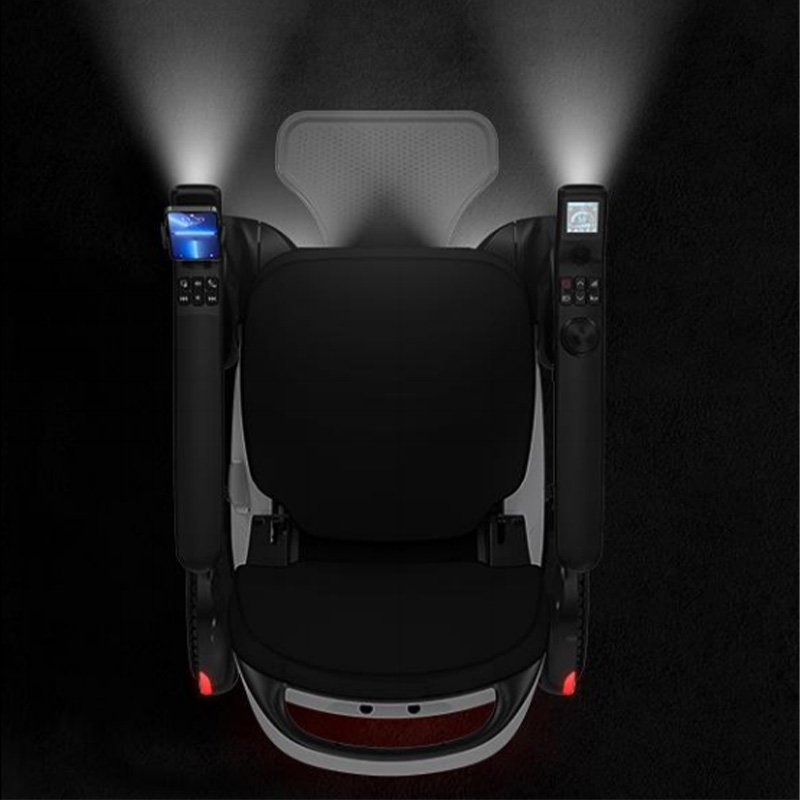

Automotive-grade lighting design

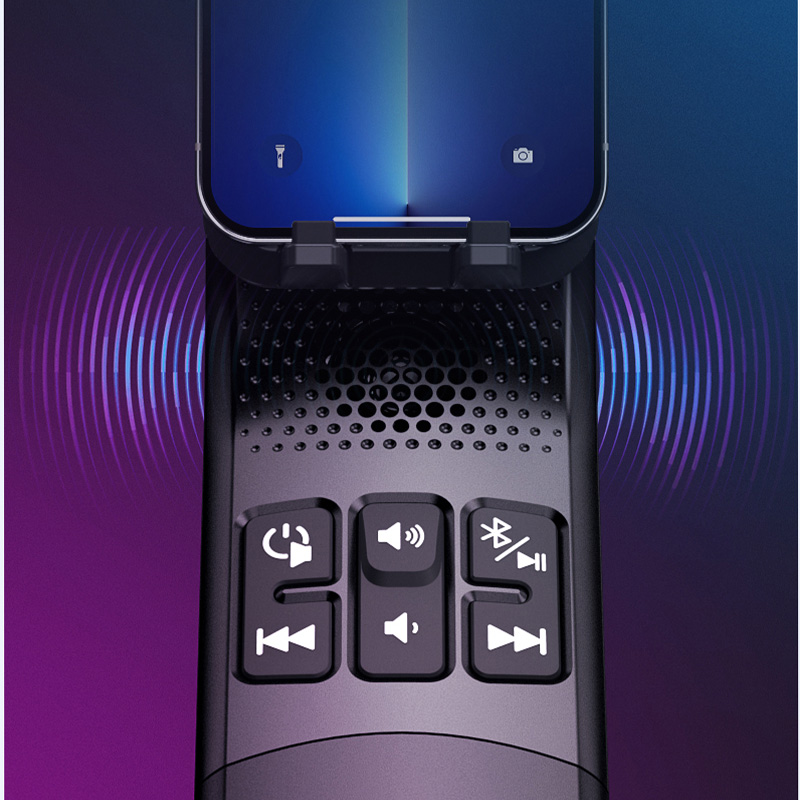

3D stereo surround sound system
Equipped with a 300 W high-efficiency motor, it not only has strong power and a light weight, but also can achieve low-noise and smooth operation. The electric wheelchair can easily cross 4-centimeter step obstacles and has a range of up to 20 km. It is equipped with a 10° intelligent parking function on slopes, and in combination with the anti-rollover safety wheel design, it provides dual protection to ensure safe and stable driving on slopes.

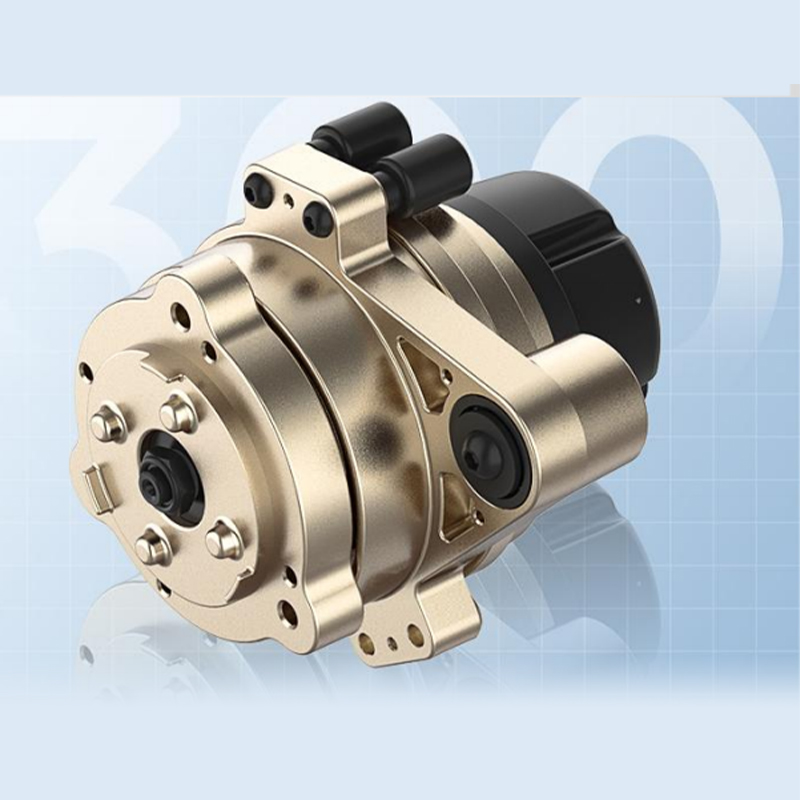

Equipped with 300 W high-efficiency motor

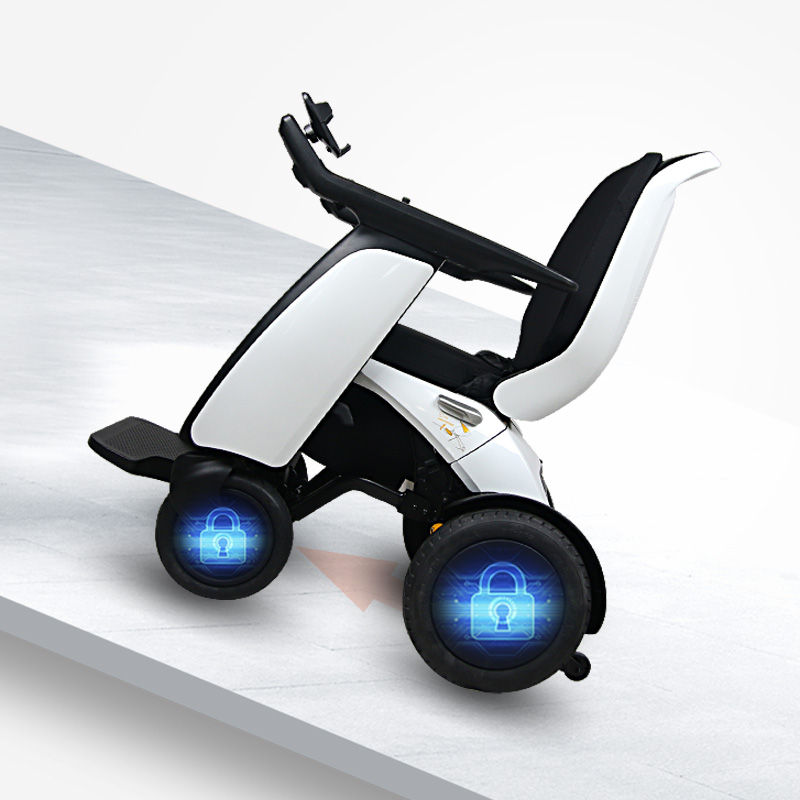

Equipped with a 10° intelligent parking function on slopes

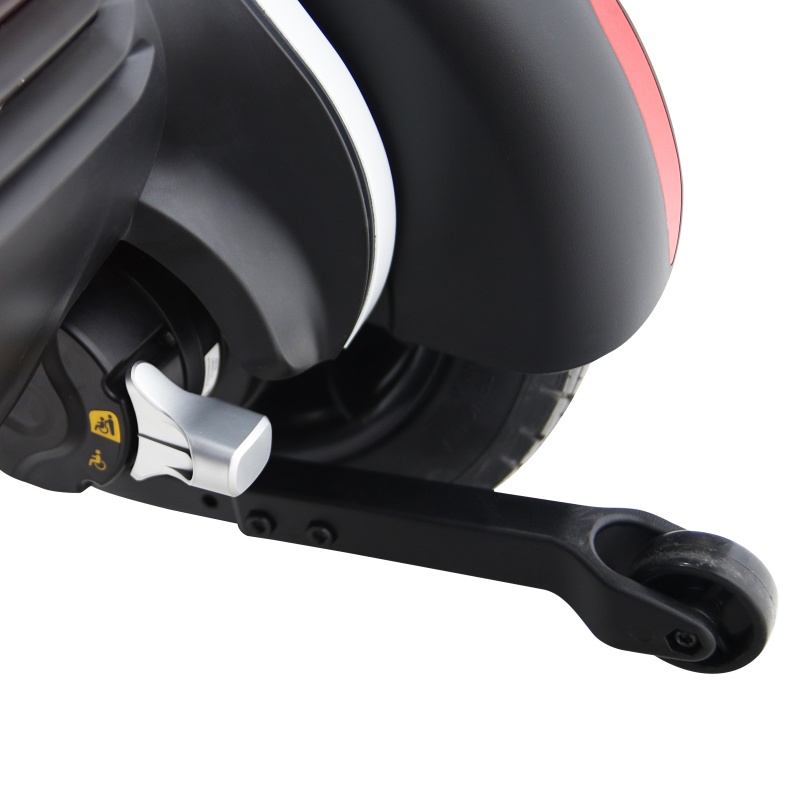

Anti-tipover safety wheel design
Three classic color combinations are offered: brilliant gold, rose red and high-end gray, to interpret different styles.

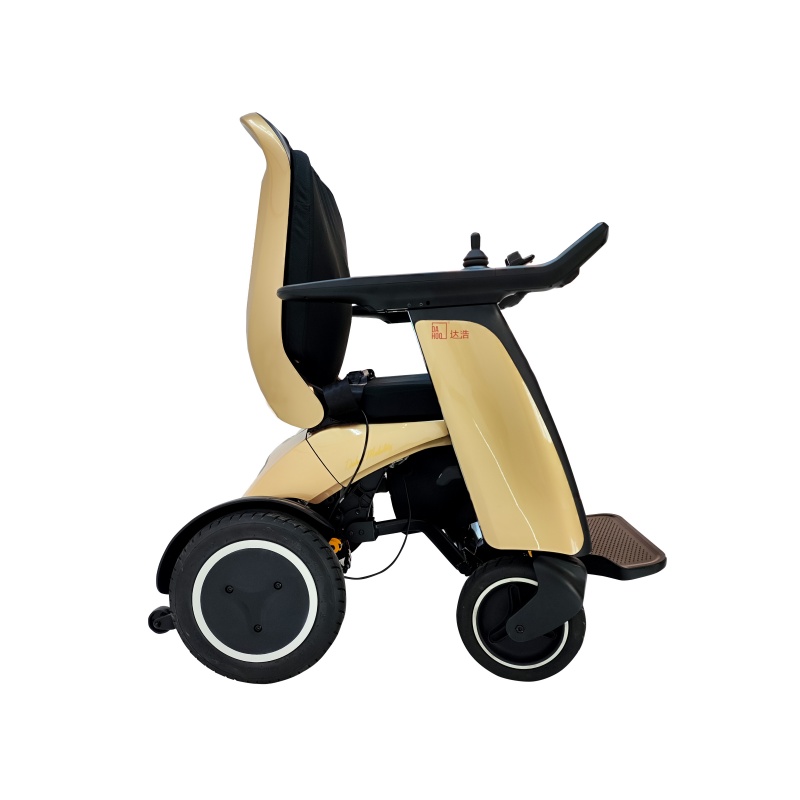

Brilliant gold

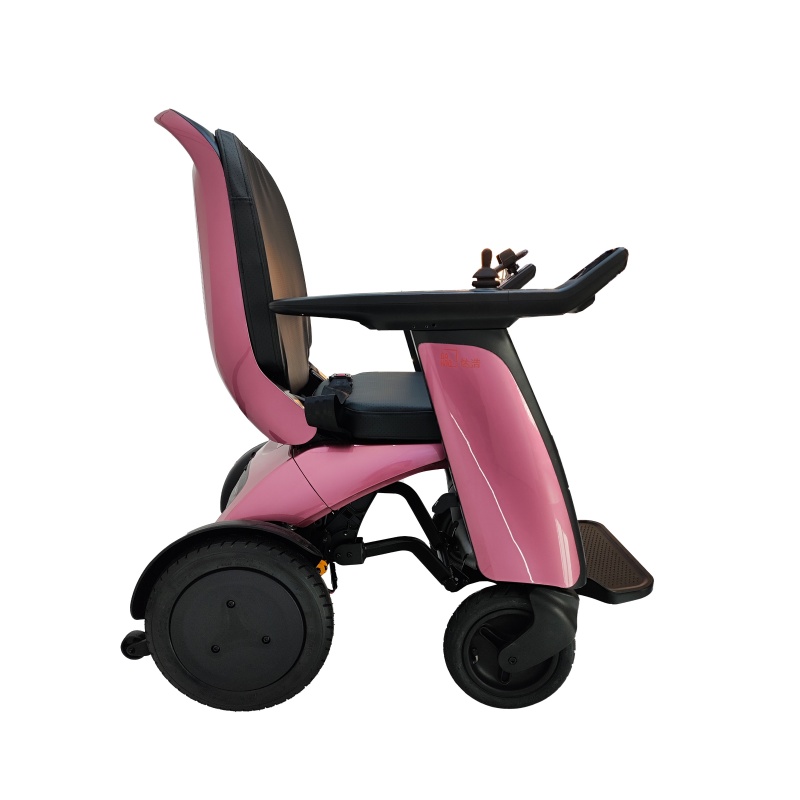

Rose red
High-end gray
Name | Parameters |
Total length (±5 mm) | 1045 mm |
Overall width (±5 mm) | 620 mm |
Total height (±5 mm) | 1020 mm |
Seat width (±5 mm) | 480 mm |
Seat depth (±5 mm) | 450 mm |
Seat height (±5 mm) | 535 mm |
Handrail structure front position (±5 mm) | 550 mm |
Backrest height (±5 mm) | 510 mm |
Climbing ability | ≥6° |
Maximum speed | ≤6 km/h |
Endurance | 20 km |
Tire type | Pneumatic tire |
Front wheel | 9” |
Rear wheel | 12.5” |
Net weight | ≤41 kg |
Bearing weight | 100 kg |
Battery | Lithium DC24 V15.6 Ah |
Motor | 150 W*2 pcs |
Noise | <65 dB |
Product type | Outdoor |
