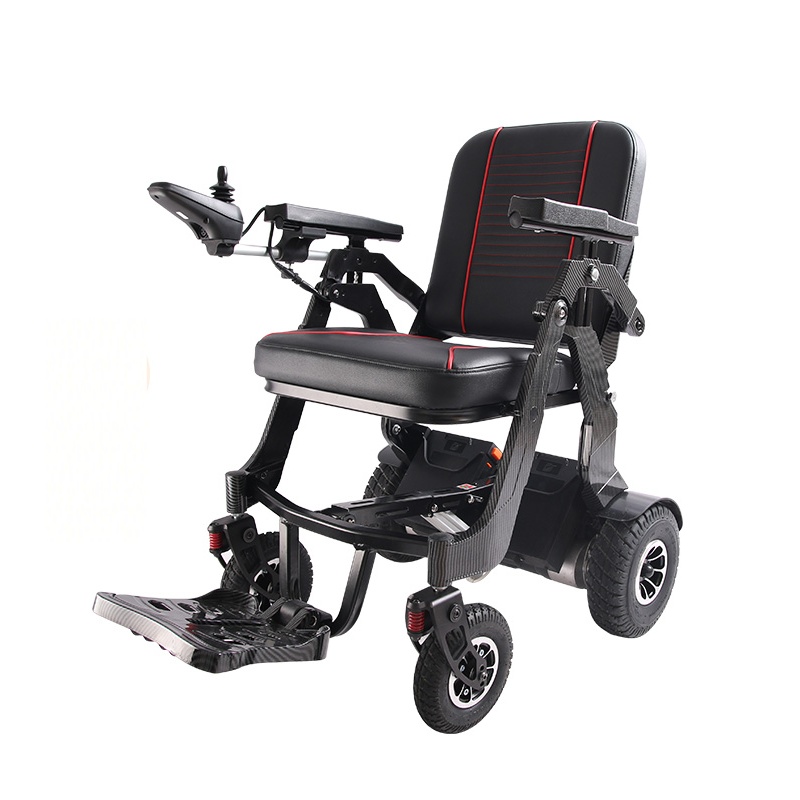

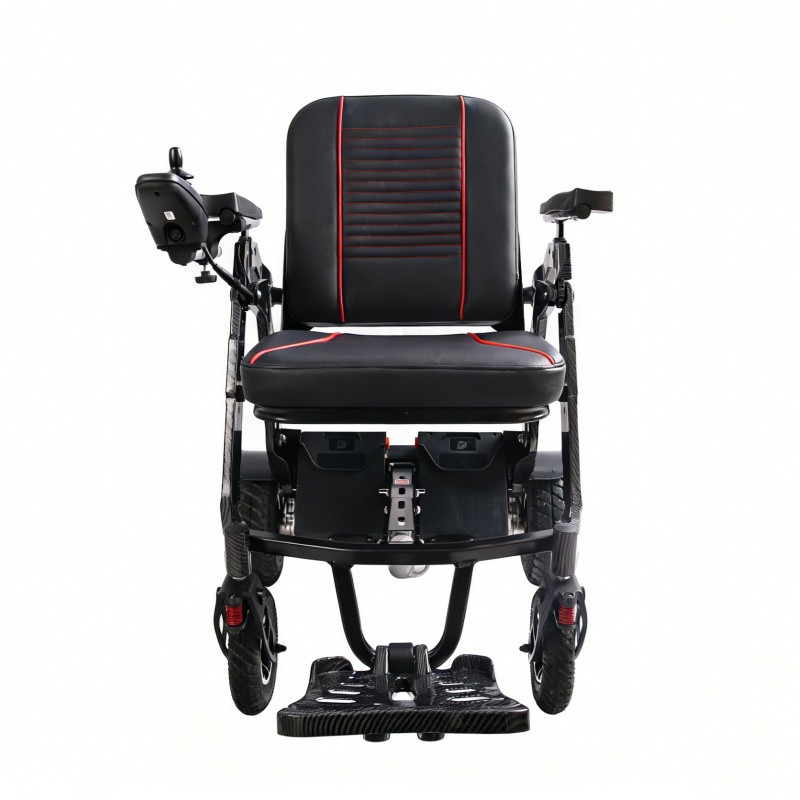

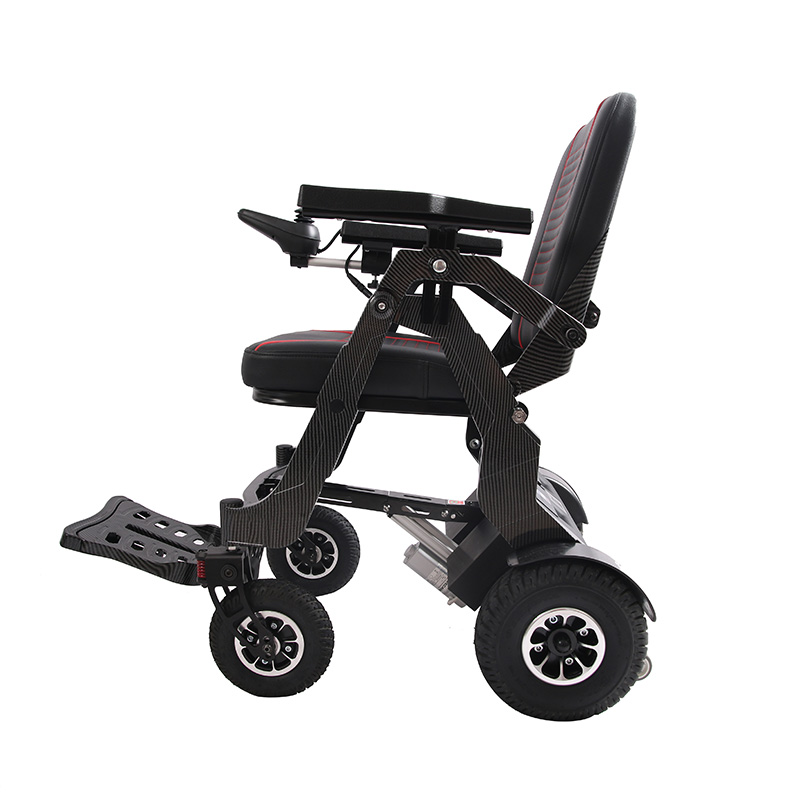

This smart electric wheelchair features a lightweight frame constructed from high-strength magnesium alloy, which is lighter than ordinary aluminum alloy. Combined with high-precision machining and internal reinforcing ribs in key areas, the frame ensures stability and a load-bearing capacity of 100kg. The ergonomic soft seat cushion and backrest closely conform to the body's curves, reducing fatigue during long journeys.
Magnesium frame

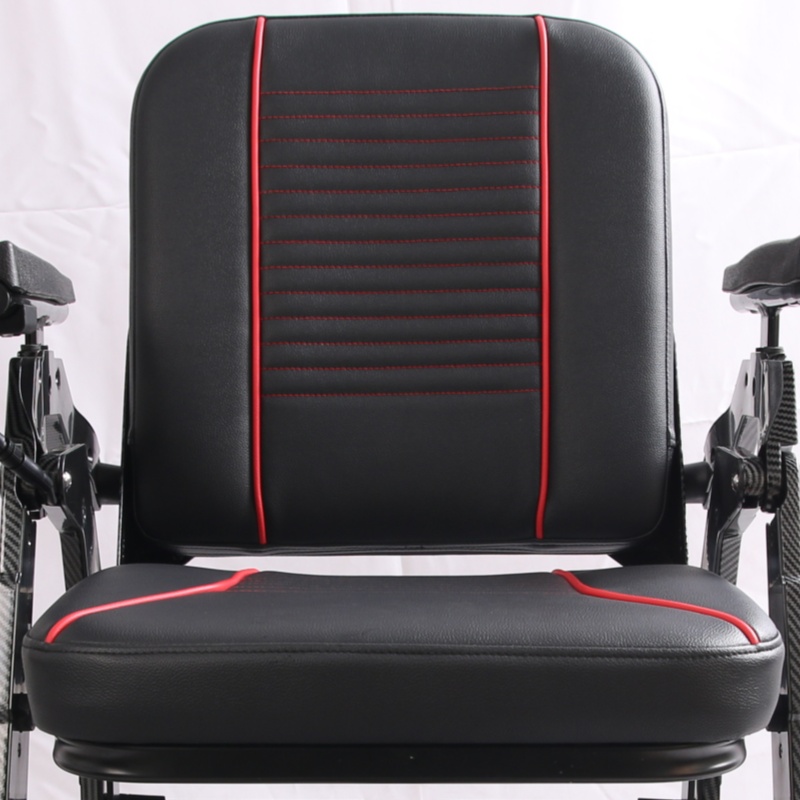

Comfortable cushion
The magnesium wheelchair is equipped with 8-inch front and 10-inch rear padded PU shock-absorbing and anti-slip tires for high wear resistance. Combined with the frame's inherent damping properties, this effectively absorbs road bumps, ensuring a smooth and comfortable ride.

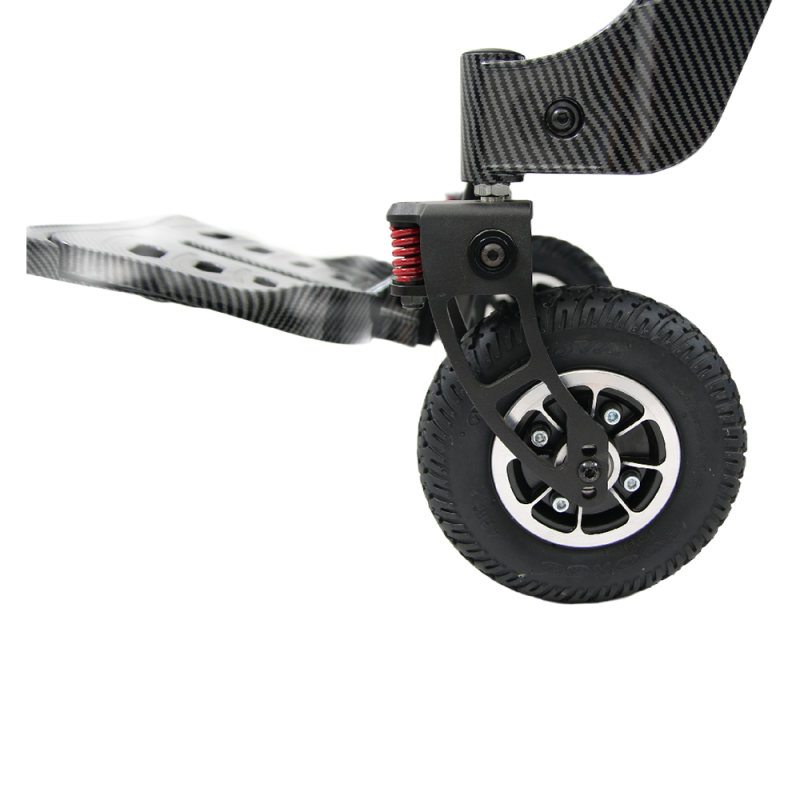

New style PU solid front wheel

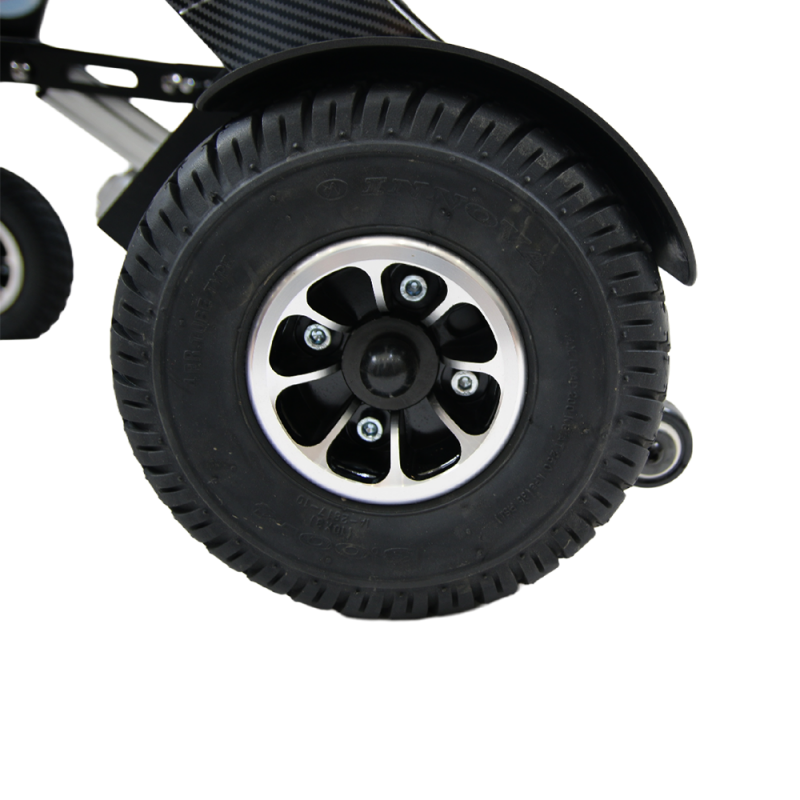

10-inch rear wheel

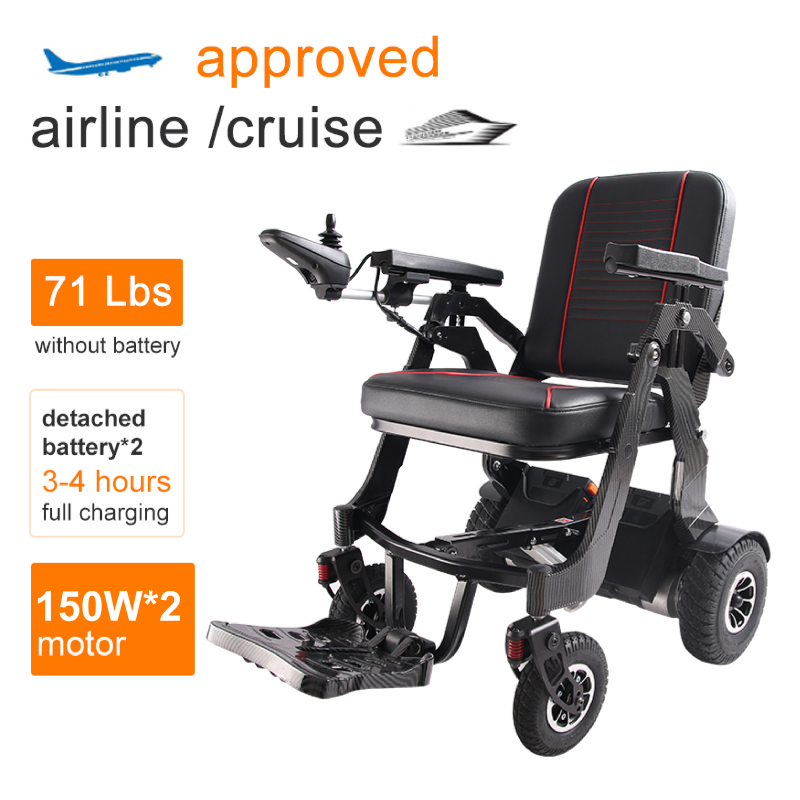

Equipped with two 150W high-efficiency brushless motors, featuring high speed, low energy consumption, and quiet operation. Combined with an electroma=-25gnetic braking system, this electric wheelchair boasts a long lifespan and requires no maintenance. The quick-release dual lithium battery design allows for easy charging when the battery is low, fully charging in 3-4 hours for worry-free range.
2 pieces 150W brushless motors

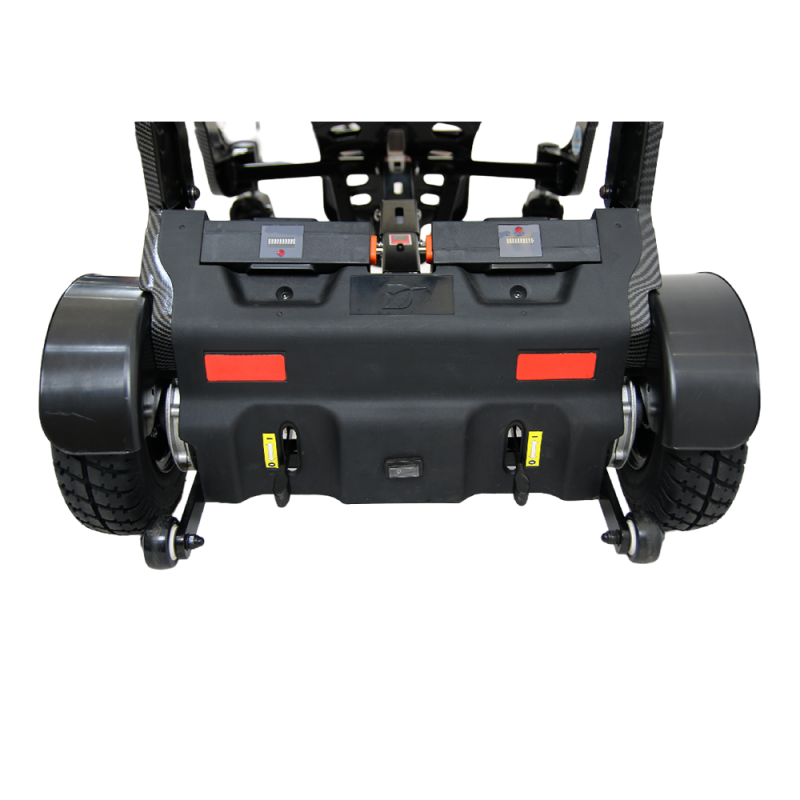

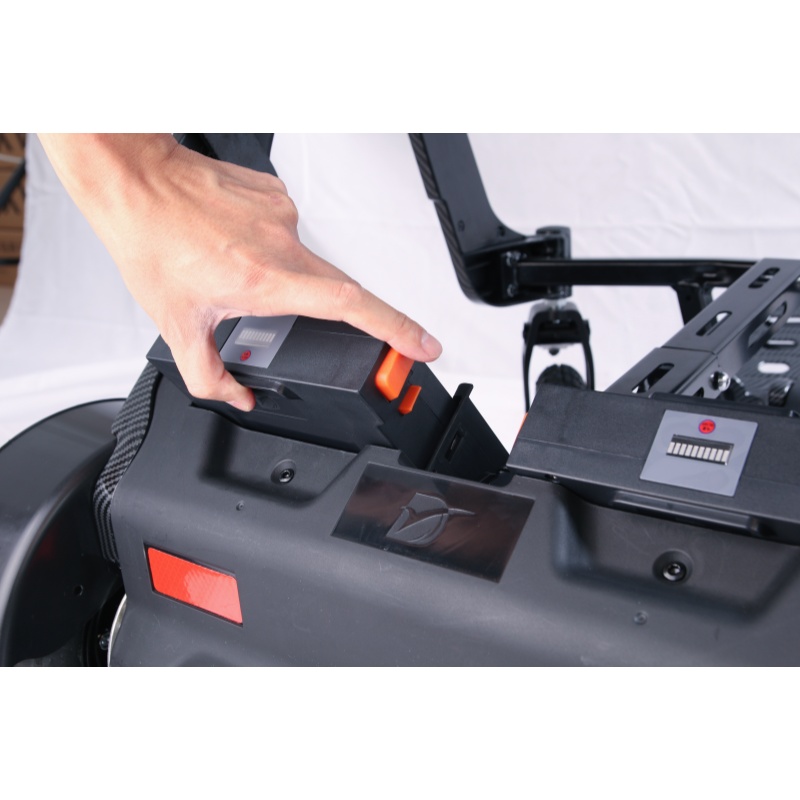

Double detachable battery

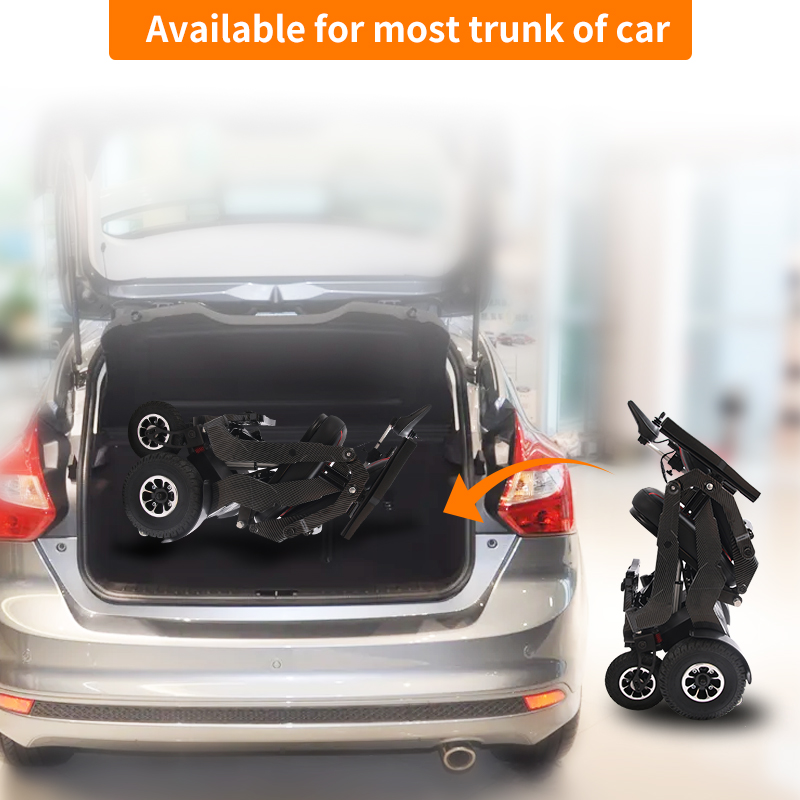

The magnesium wheelchair supports both electric and manual folding modes. One-button unfolding or folding operation results in a compact size that easily fits into a car trunk for convenient portability.

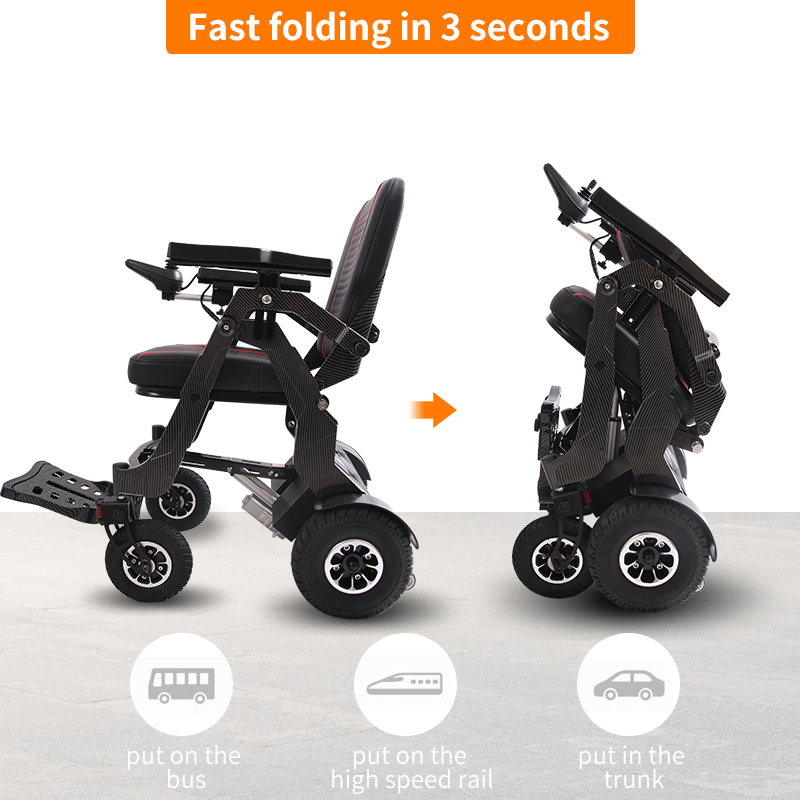

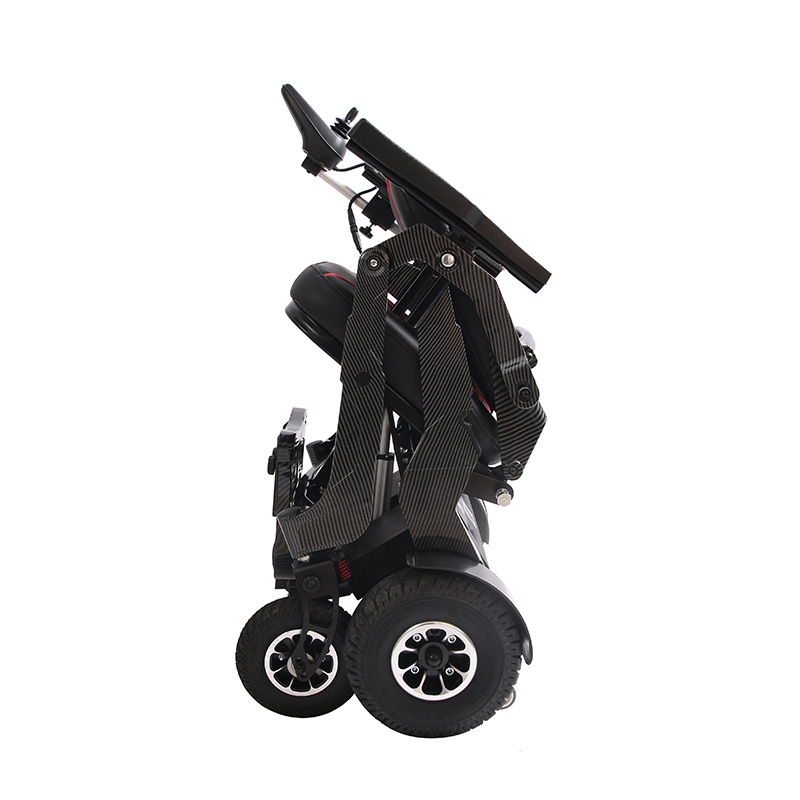

Fast folding in 3 seconds
Small folding size, easy to carry
The controller features an LCD screen integrating remote control switch, folding button, speed adjustment, horn, and battery level display functions. Information is clearly displayed, operation is simple, and release the handle for enhanced safety. The collapsible wheelchair also features triple voice alerts for low battery, reversing, and intelligent faults for added peace of mind.

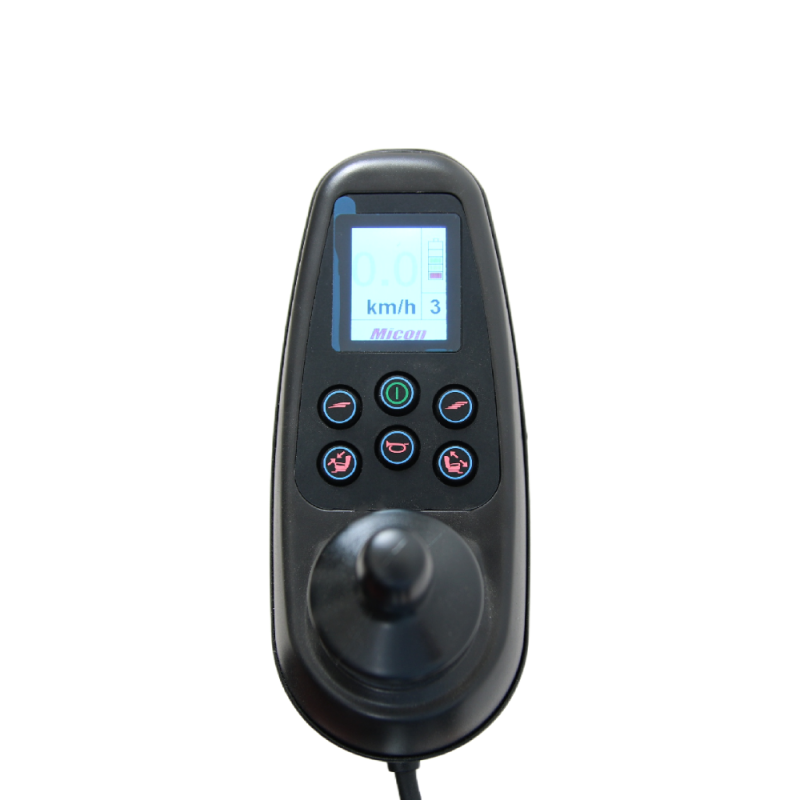

LCD display smart controller

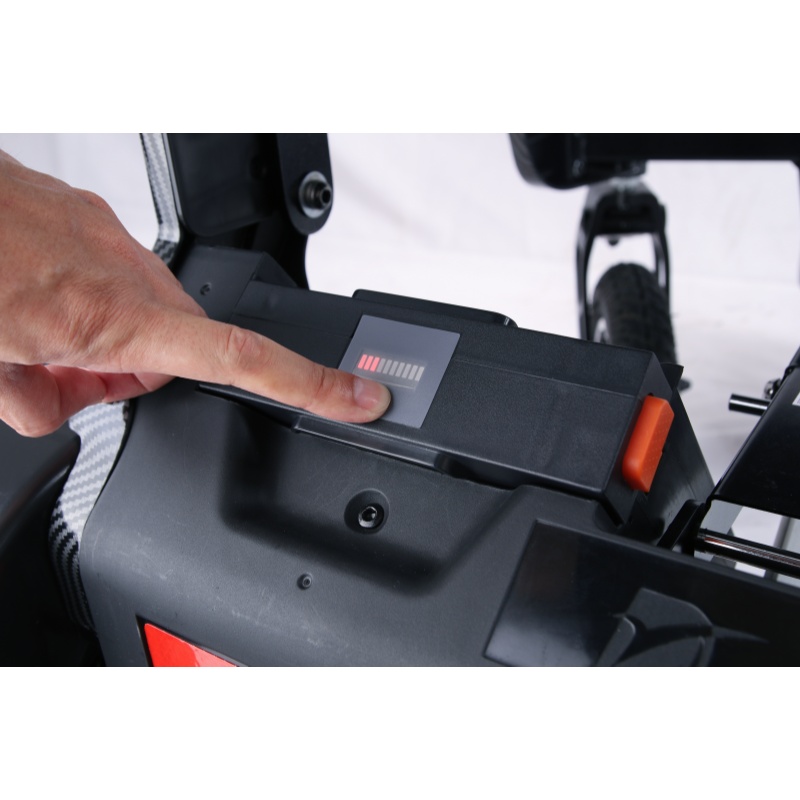

Power display
Equipped with adjustable armrests and a foldable, retractable footrest, this electric wheelchair ensures a customized fit. It supports one-button switching between manual and electric modes, flexibly adapting to different terrains. The 360° precise steering is sensitive enough for easy maneuvering in confined spaces, making elevator entry and exit effortless.

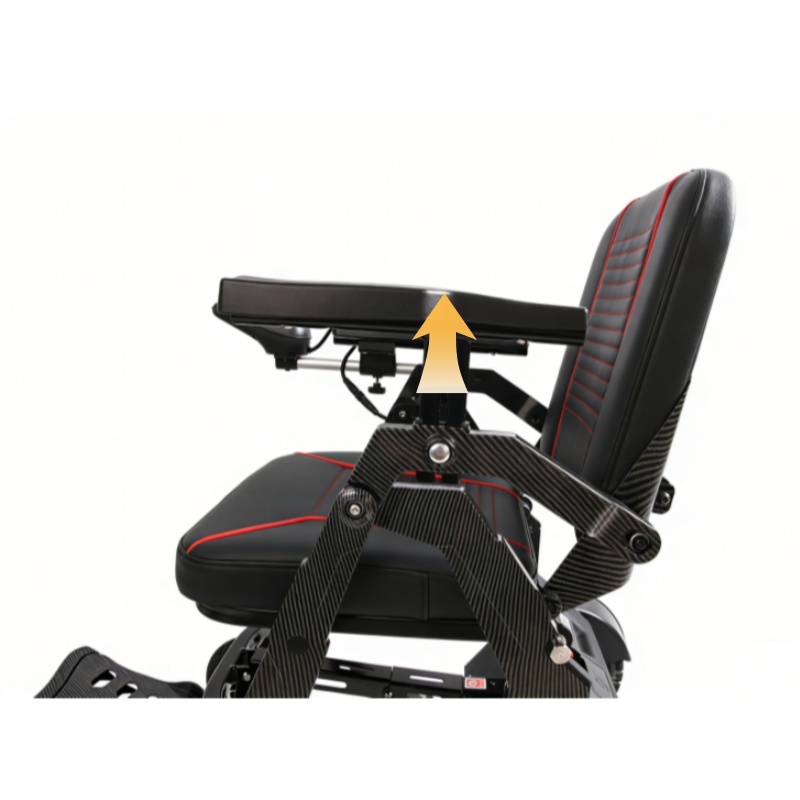

Adjustable height armrest

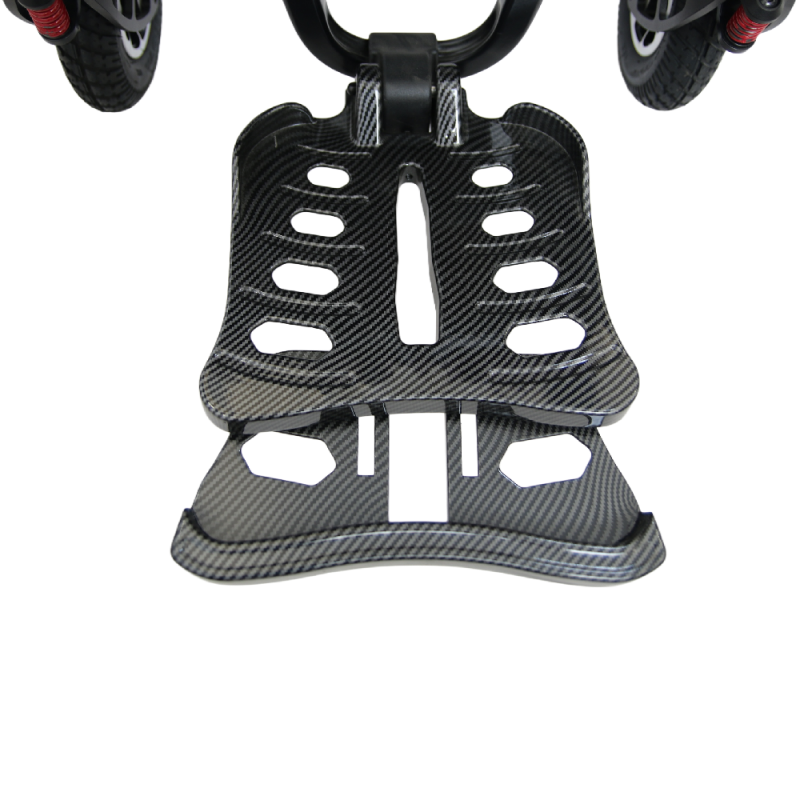

Adjustable length footplate

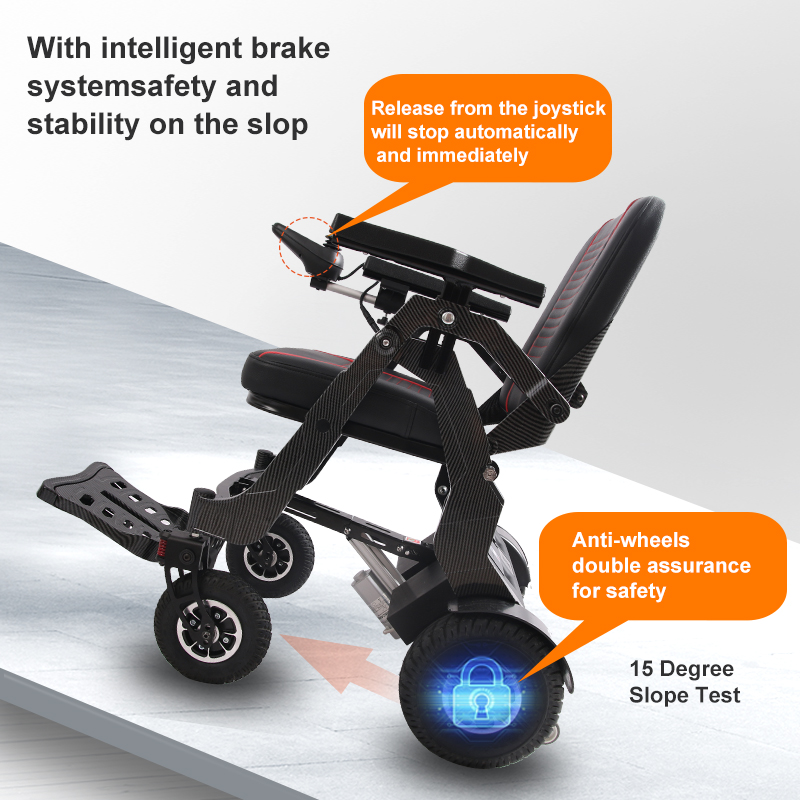

The intelligent braking system has passed a 15° slope test certification, and combined with anti-roll wheel design, it achieves double safety protection, making driving on slopes more stable and safeguarding travel safety throughout.
Intelligent brake systems ensure safety and stability on slopes

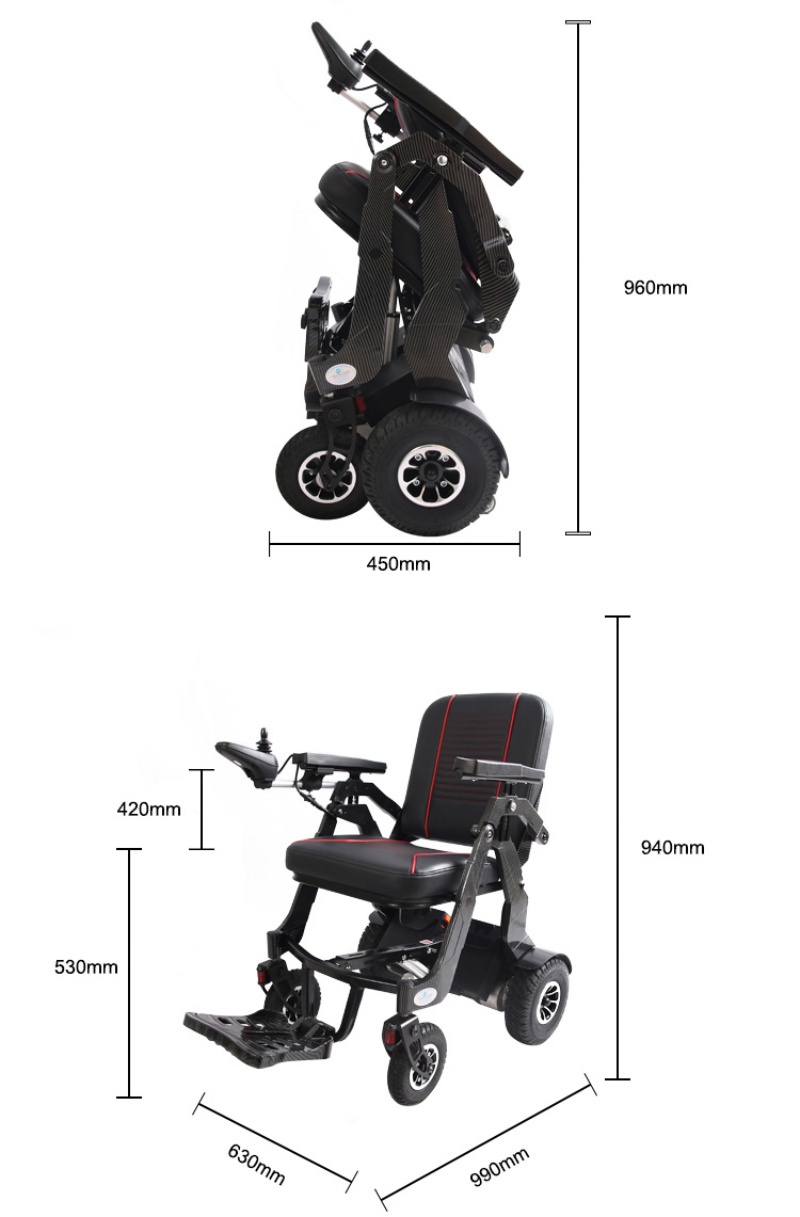

| Name | Parameter | Name | Parameter | Name | Parameter |
| Item no. | DY01117 | Distance from footrest to seat | 500±10mm | Gradeability | ≥3° |
| Total length | 890±10mm | The angle between footrest and seat surface | 103° | Turning diameter | ≤1800mm |
| Overall width | 630±10mm | Front position of the handrail structure | 360±10mm | Endurance ( per single battery) | ≥15km |
| Total height | 940±10mm | Application Type | þIndoor ¨Outdoor | Front wheel | 8-inch |
| Fold length | 630±10mm | Max speed | 4.5 km/h | Rear wheel | 10-inch |
| Fold width | 450±10mm | Braking performance on a level road | ≤1.0m | Motor | Brushless motor |
| Fold height | 900±10mm | Maximum Safe Slope Braking | ≤1.6m (3°) | Motor power | 105W*2pcs |
| Backrest height | 450±10mm | Slop performance | 6° | Frame material | Magnesium alloy |
| Seat width | 440±10mm | Static stability | ≥6° | Battery | DC12V10Ah*2pcs |
| Seat depth | 430±10mm | Dynamic stability | ≥3° | Packaging size | 720*490*900 mm |
| Seat height | 540±10mm | Turning diameter | ≥25mm | Net weight | 34 kg |
| Backrest angle | 10° | Gully width | 100mm | Loading capacity | 100 kg |
CE, ISO9001, ISO13485, US FDA, ANVISA, TGA, Free Sale Certificate
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
