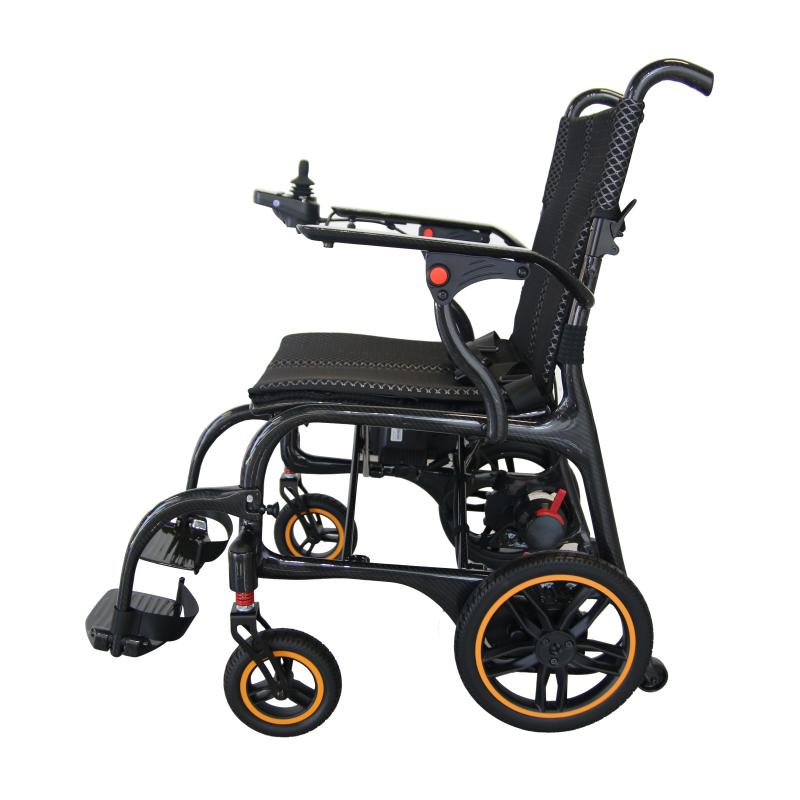

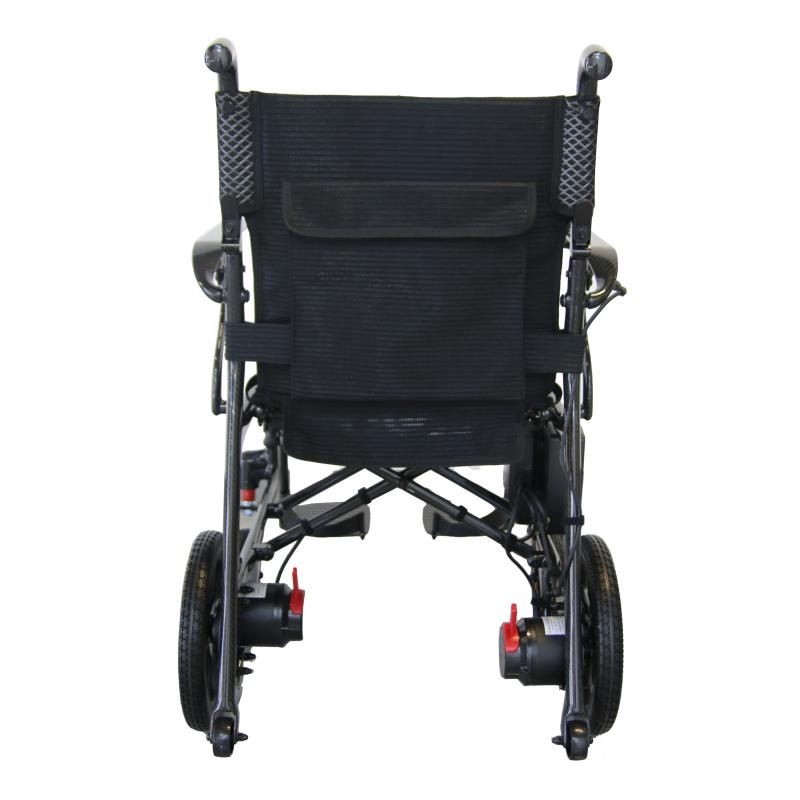

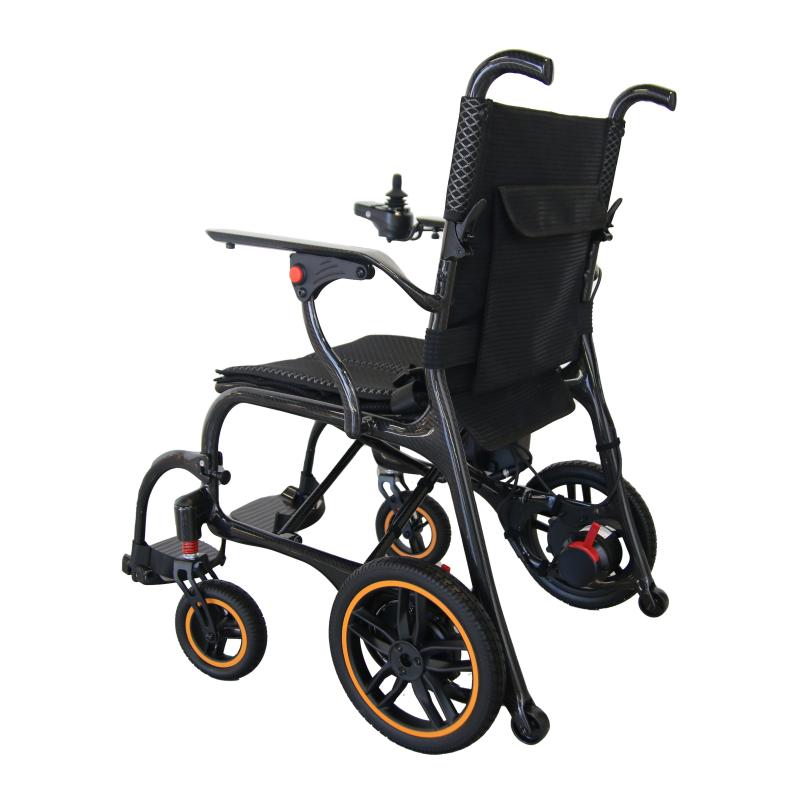

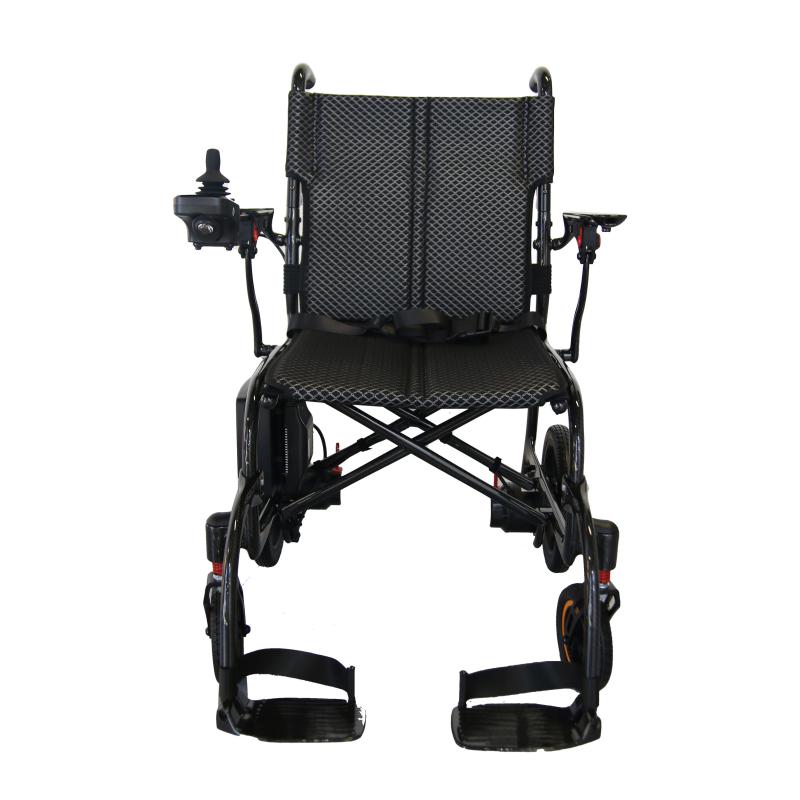

Carbon Fiber 12kg Electric Wheelchair – Ultra Lightweight Mobility Solution

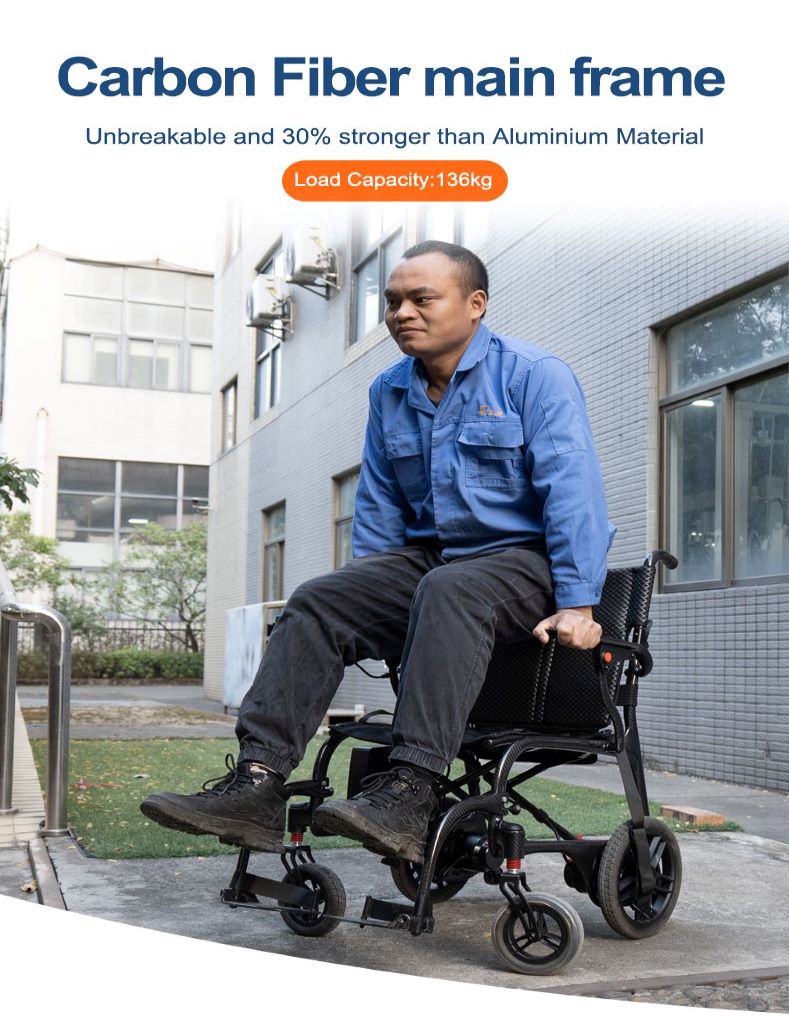

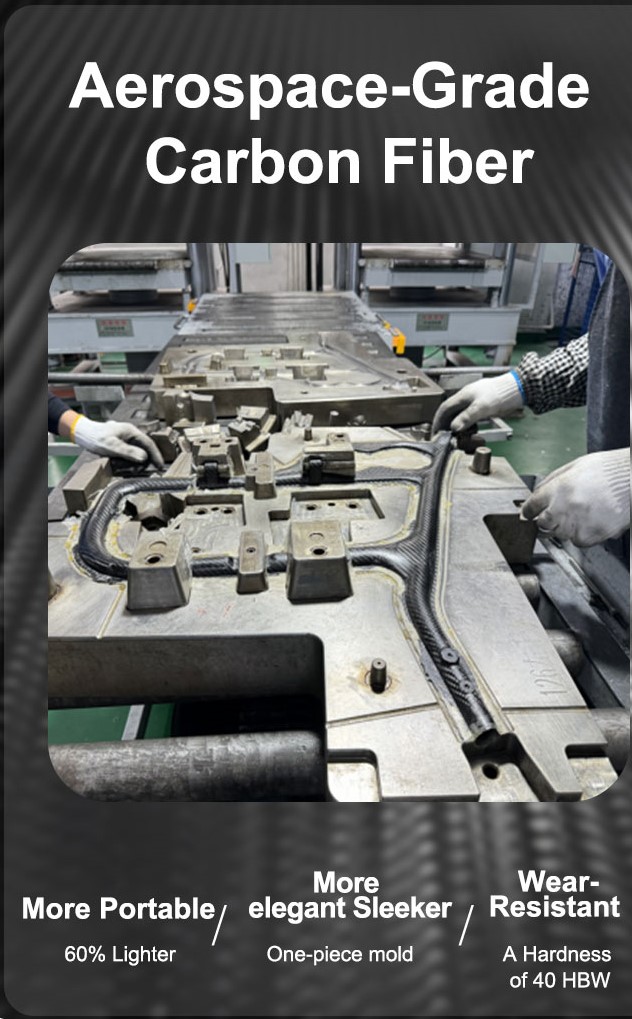

The main body is precision molded in one piece from high strength carbon fiber, delivering exceptional lightness for effortless carrying and transport. With a cost effective profile, its simple yet innovative structure ensures a sleek, modern appearance. Featuring 2mm wall thickness, the carbon tubes combine rigidity, high strength and low weight. The natural carbon weave is preserved, finished with a gloss protective lacquer that offers excellent resistance to corrosion and oxidation.
Supports 300 lbs (136 kg)
One-piece molded frame
The foldable chassis maximizes portability and saves storage space. Its I beam cross structure enhances stability, while the seat carbon tubes follow an ergonomic contour for even support—reducing fatigue during prolonged sitting. The quick release footrest boasts clean, bold lines for a refined yet dynamic look. The flip back armrest design allows easy side access, improving both flexibility and comfort.

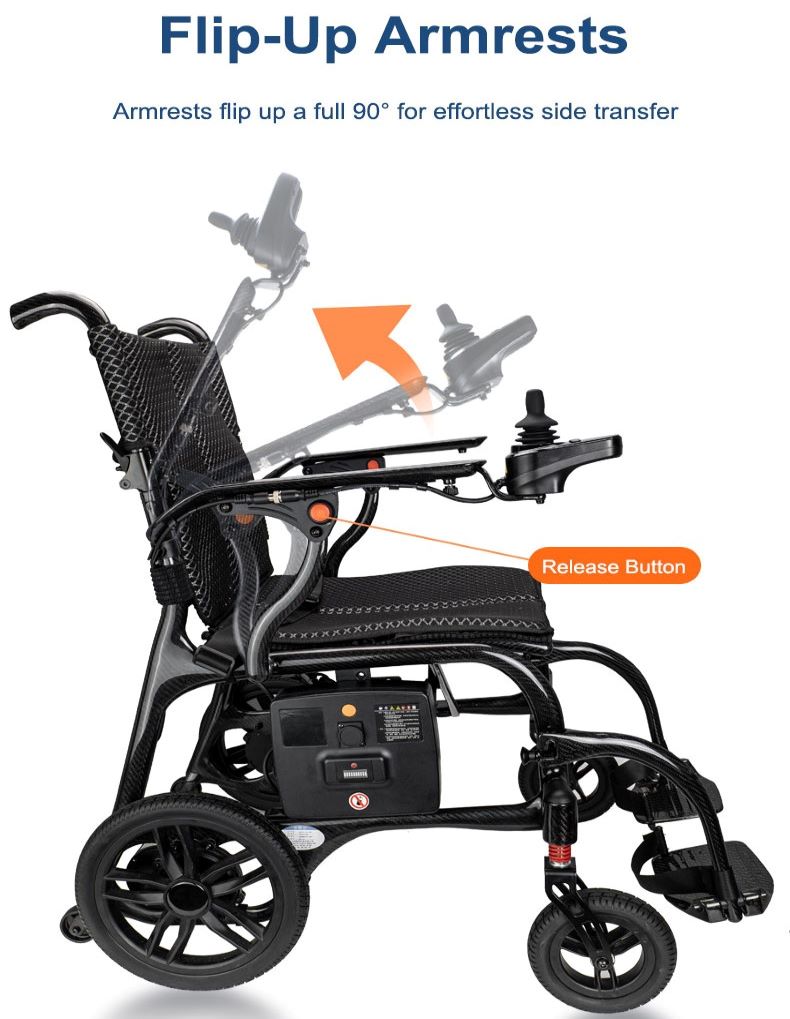

Flip-up armrests make it easier for the user to shift

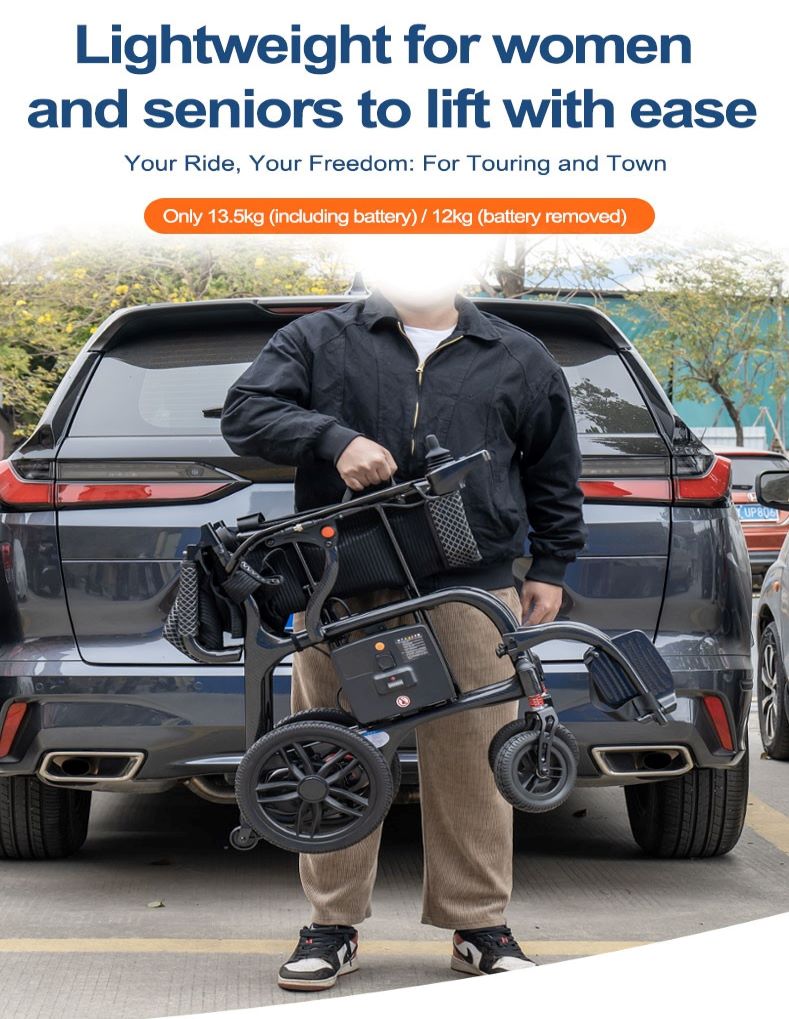

Ultra-lightweight -just 26.5 lb without the battery, 28.7 lb with battery (approx. 12 kg / 13 kg)

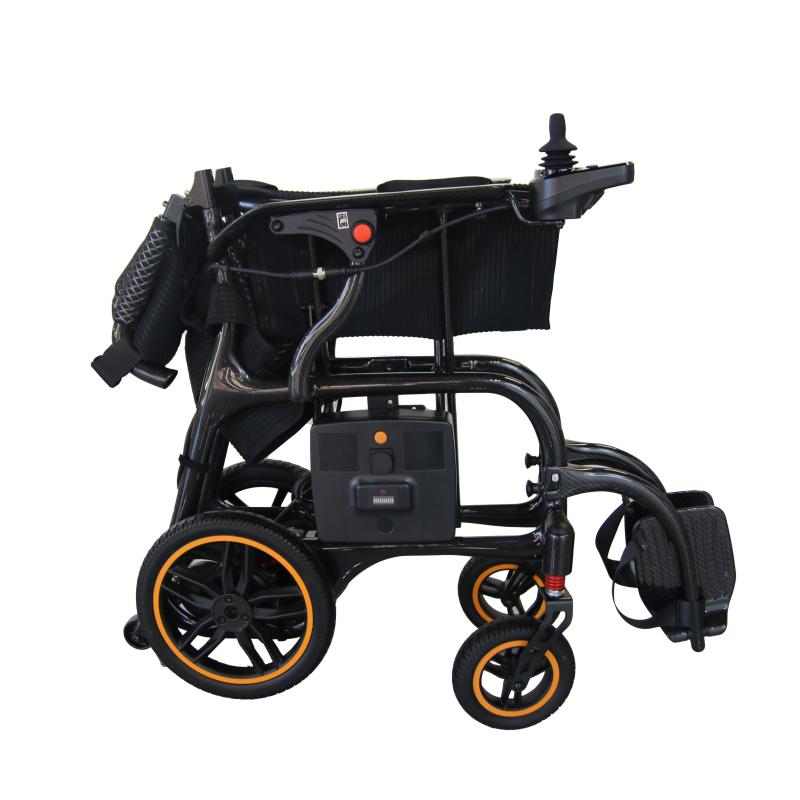

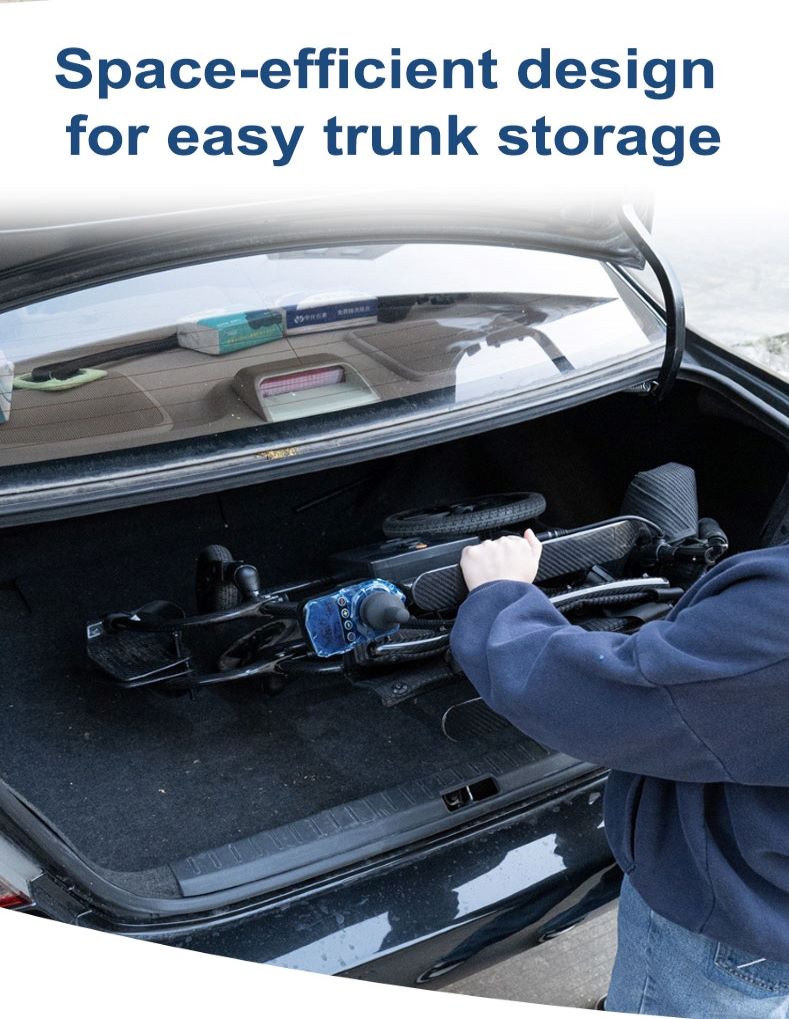

Folds down small enough to fit in a car trunk or be taken on board an airplane

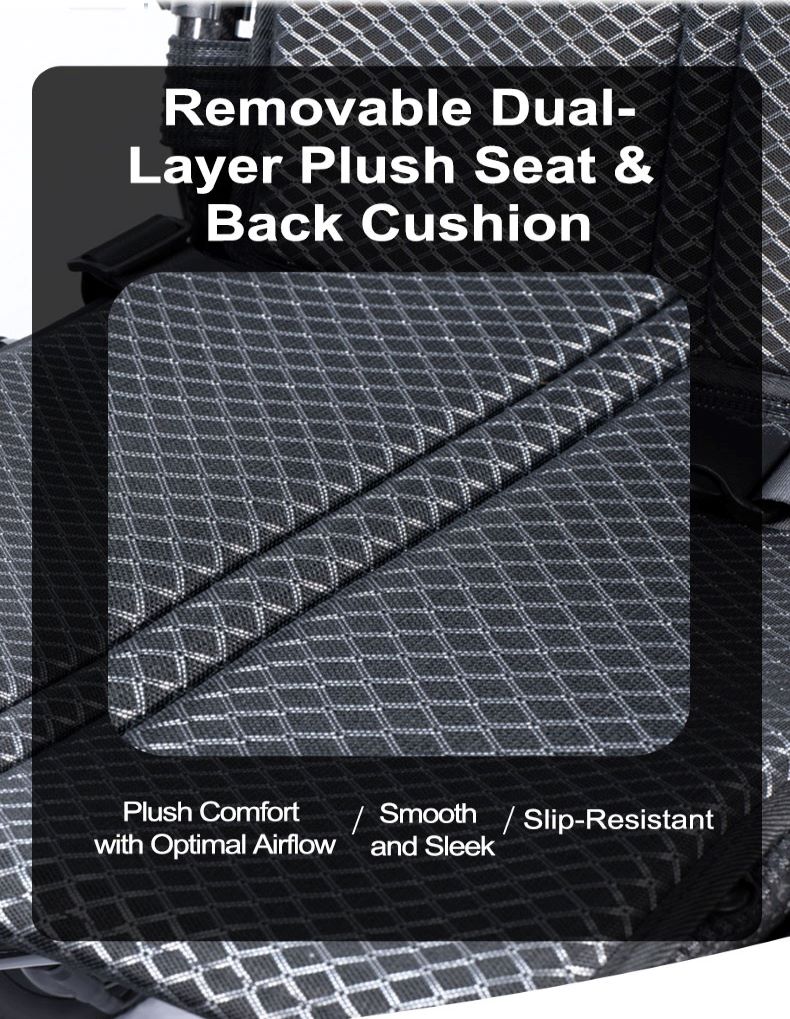

Upholstered in high strength nylon fabric with breathable mesh stitching, the cushions are soft, slip resistant and neatly finished. A reinforced central canvas layer adds durability, and the overall tensile strength reaches an impressive 5,000N.

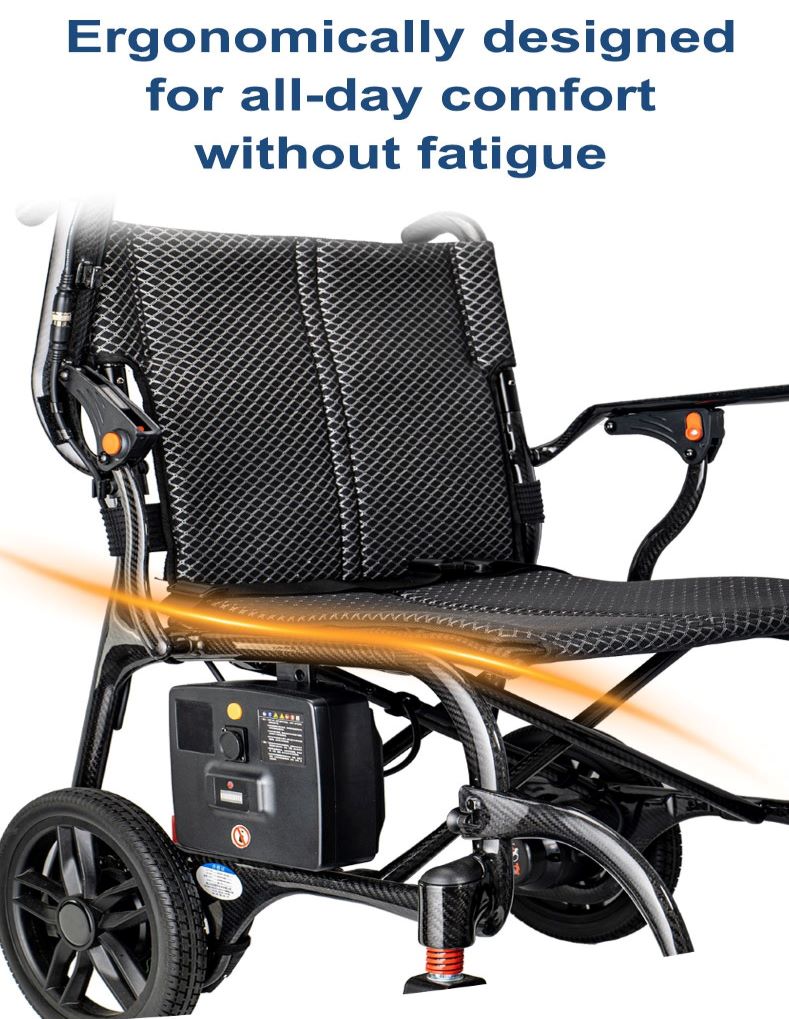

The seat and back cushions are ergonomically designed to provide lasting comfort, helping reduce fatigue even during extended use
Removable, durable padded cushion supports up to 5,000 N (approx. 509 kg)
Front: 6.5″ maintenance free magnesium alloy rims with PU tyres and spring suspension; paired with lightweight aluminum front forks for omnidirectional manoeuvrability.
Rear: 12″ magnesium alloy rims with PU tyres for superior elasticity and ride comfort. The tire chassis integration ensures outstanding stability and long lasting performance, enhancing safety and peace of mind.

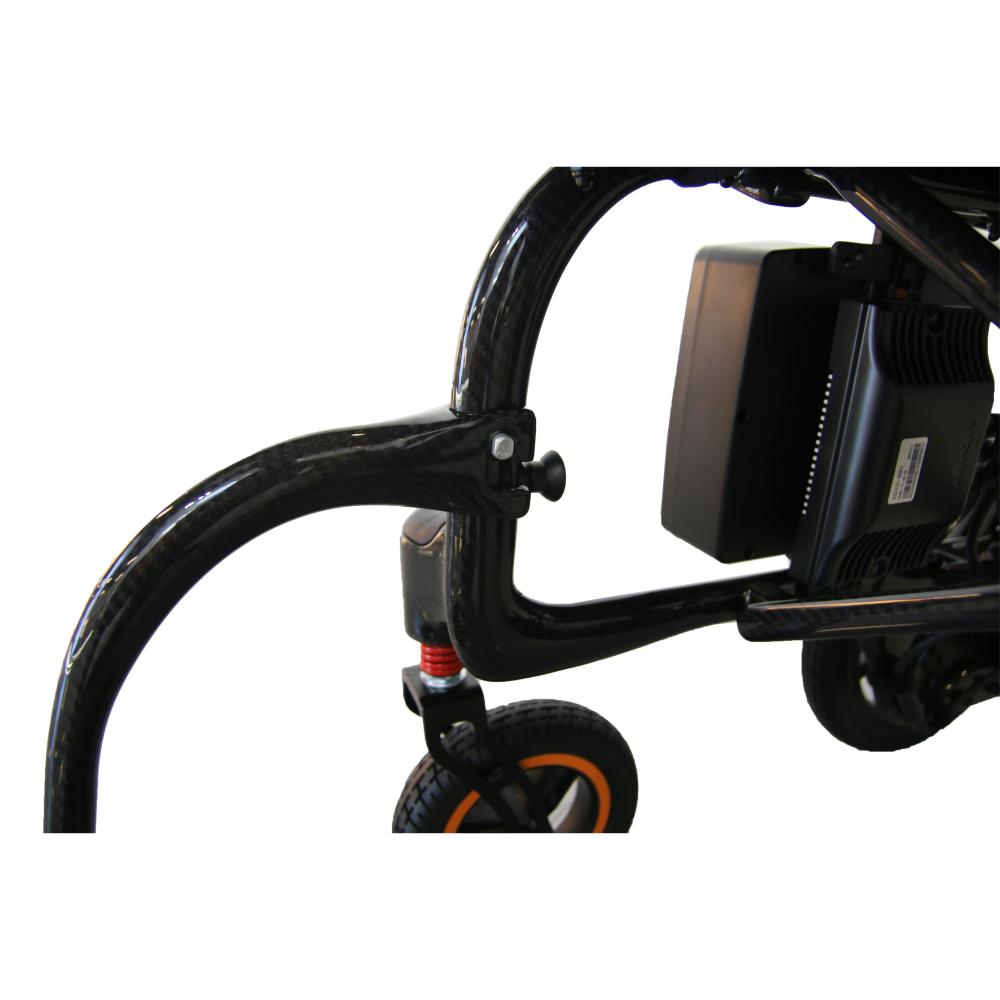

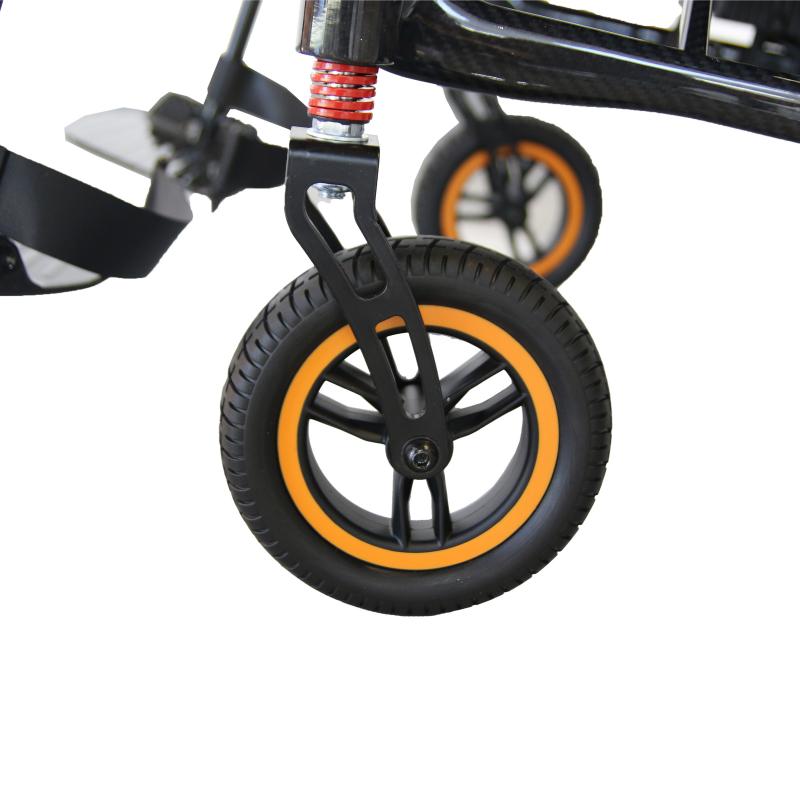

6.5″ PU front casters with built-in shock-absorbing springs for extra comfort on uneven surfaces

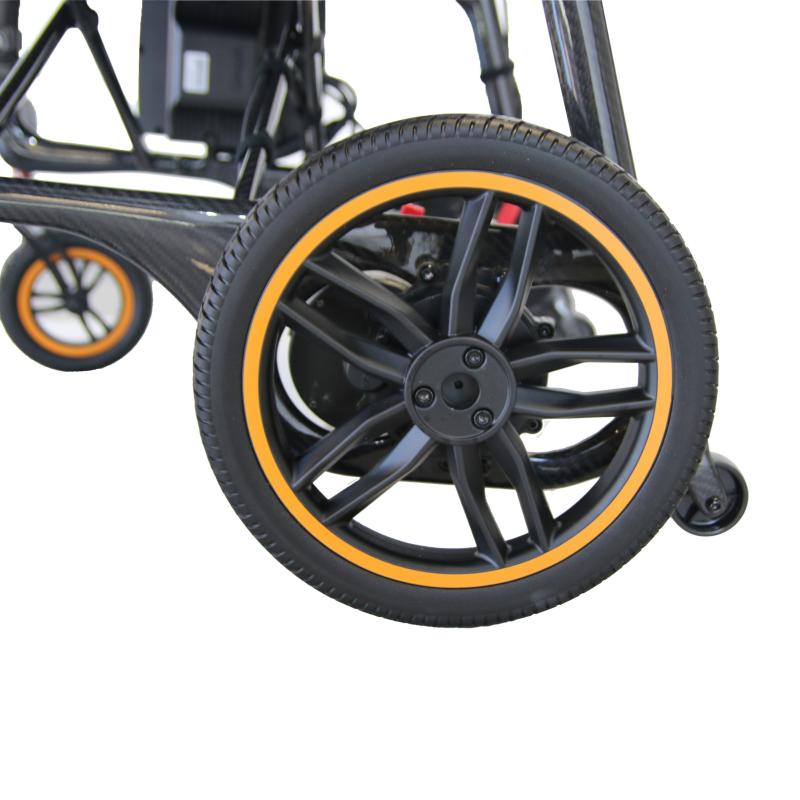

12″ mag-alloy rear wheels- strong, light, and built for performance

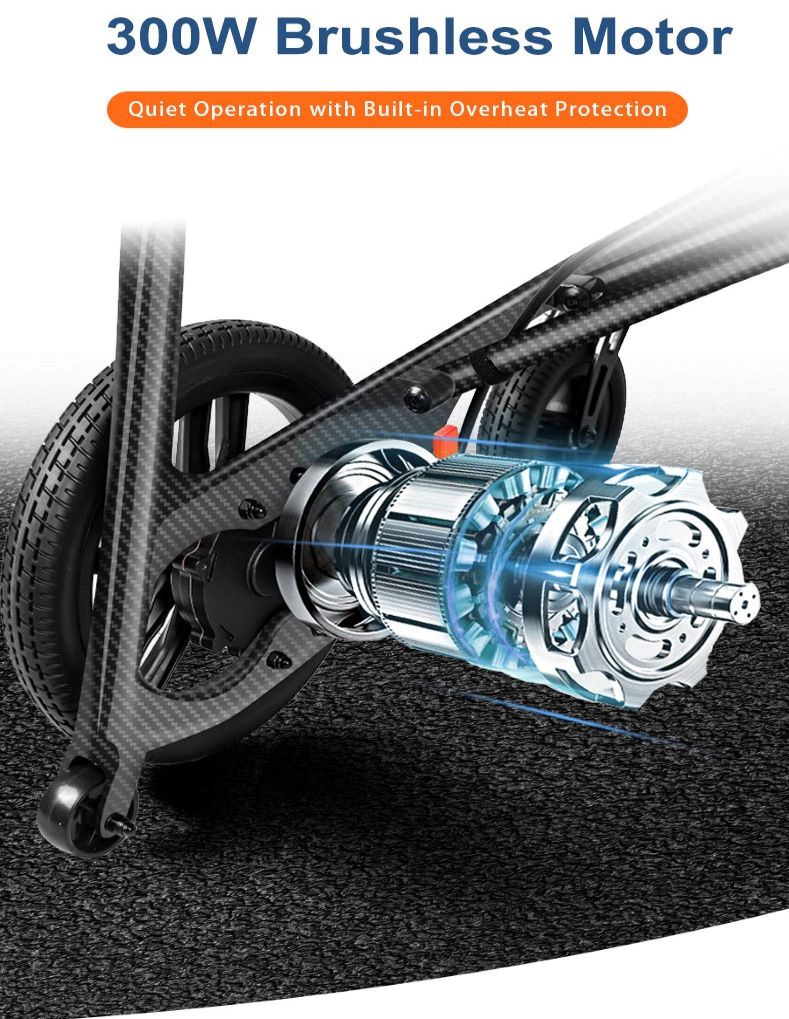

Equipped with dual 150W flange mount brushless motor and electromagnetic braking, it offers lightweight construction, high efficiency and robust power—capable of tackling varied terrain for smooth travel in all conditions.
Powered by dual 150W brushless motors -quiet, reliable, and built for performance
The intelligently designed structure enables seamless switching between powered and manual modes at the touch of a button. Real time speed display and low battery intelligent braking provide added control and reassurance, making the chair suitable for diverse environments and user needs.

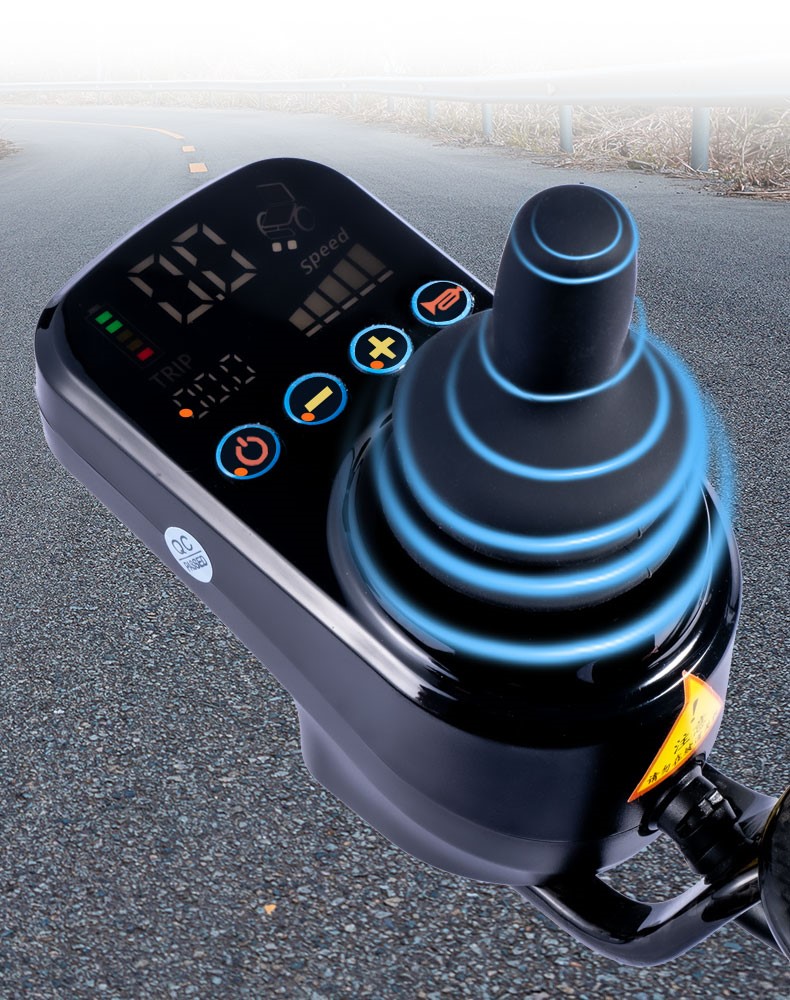

Easy-to-read joystick display shows battery status, drive mode (manual/electric), and speed levels at a glance

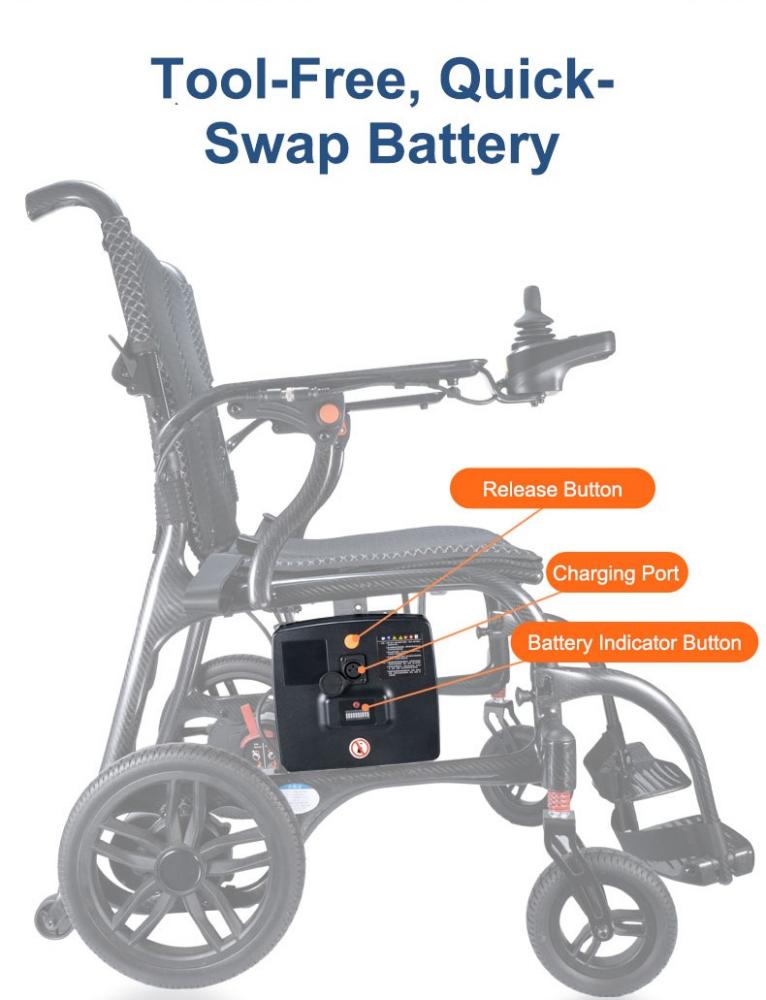

Tool-free quick-release battery for easy removal and replacement

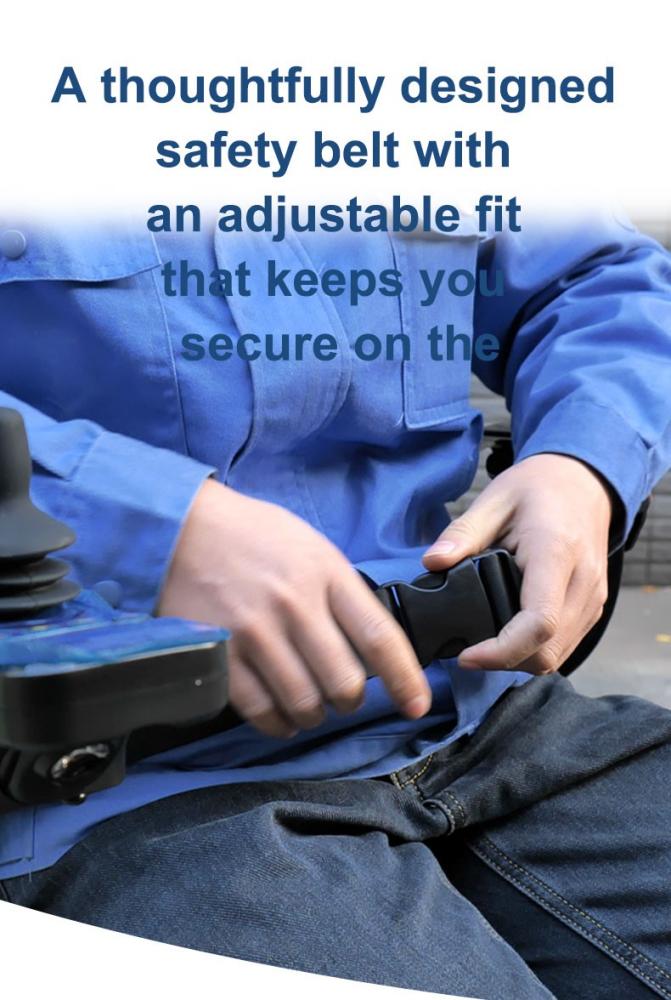

Safety seat belt

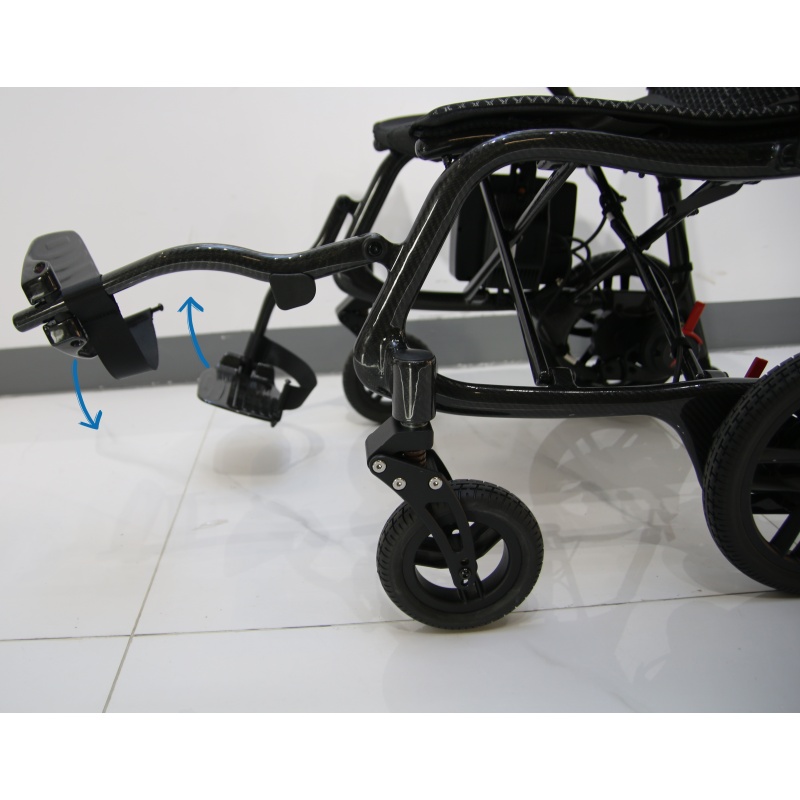

Removable leg rest
Name | Parameters | Name | Parameters |
| Overall Length | 89cm | Frame material | Carbon fiber |
| Overall Width | 60cm | Motor | Brushless motor with electromagnetic brake ZW9012L3A-SF |
| Overall Height | 90cm | Motor power | 150W/2 units |
| Folded Length | 63cm | Battery | 10AH Lithium battery |
| Folded Width | 25cm | Driving range | Maximum range: 15 km |
| Folded Height | 71cm | Maximum speed | 4.5 km/h |
| Seat Width | 41cm | Climbing ability | ≥3° |
| Seat Depth | 40cm | Obstacle crossing ability | ≥25 mm |
Seat height from the ground | 49cm | Package dimensions | 64*26*75 cm |
| Backrest height | 40cm | Net weight | Weight with 10AH lithium battery: 13.5 kg / Without battery: 12 kg |
| Armrest height | 22cm | Load capacity | 136 kg |
| Front wheel diameter | 6.5-inch magnesium alloy PU wheels | Rear wheel diameter | 12-inch magnesium alloy PU wheels |
Carbon Fiber Ultra-Light Electric Wheelchair Certificate

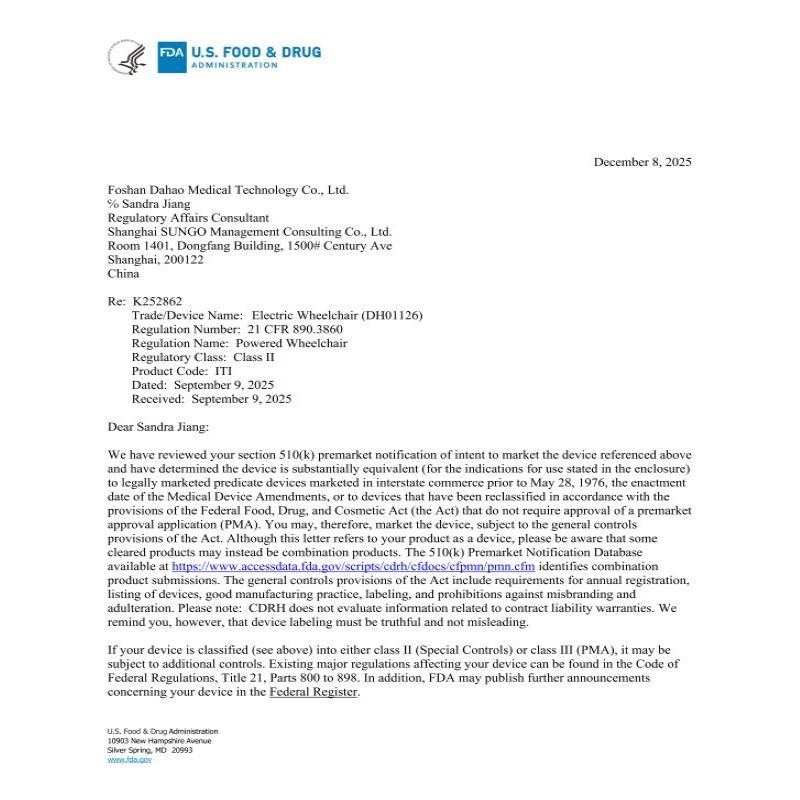

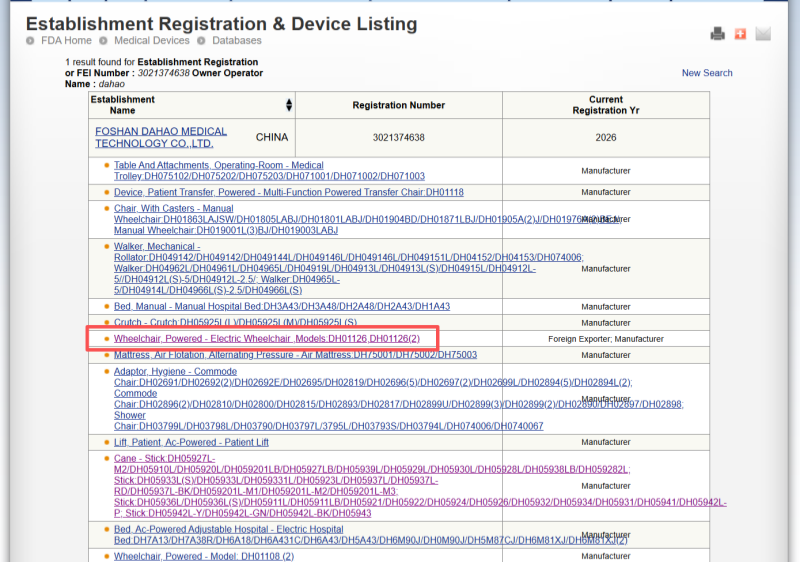

USA FDA 510K

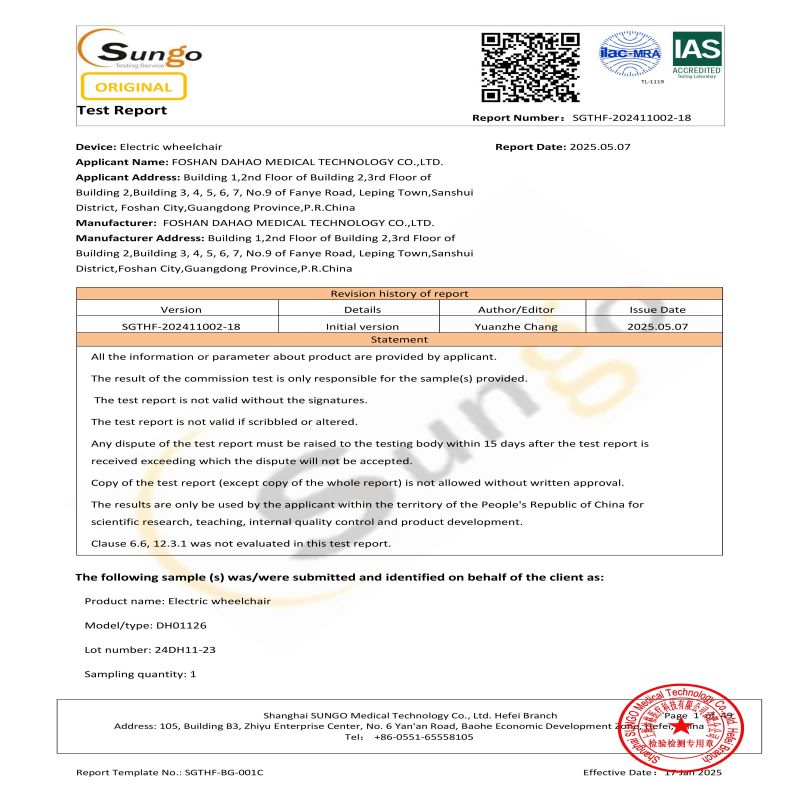

EN 12184 Test Report

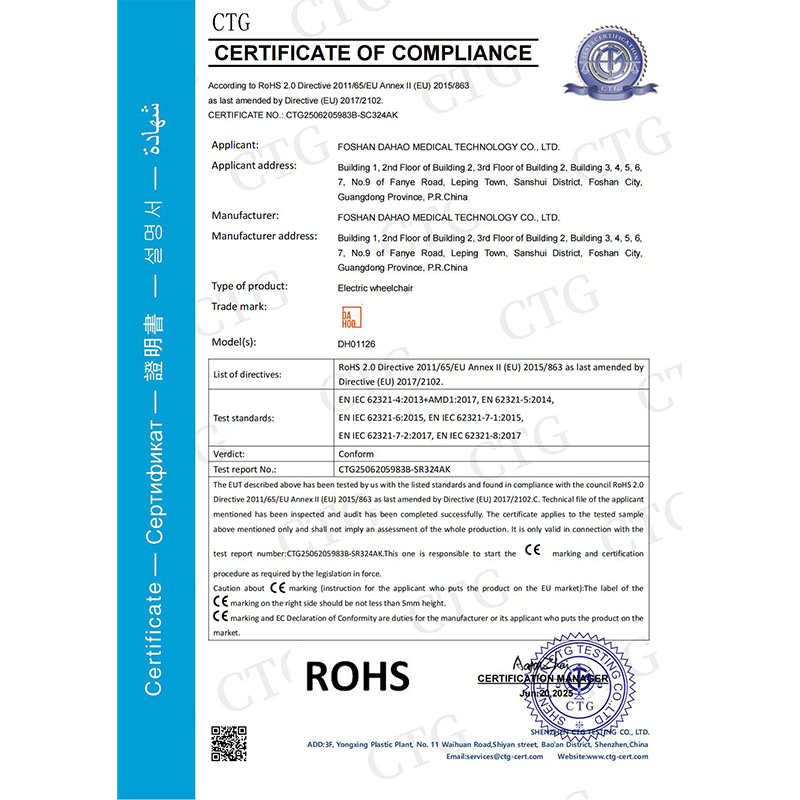

ROHS certificate

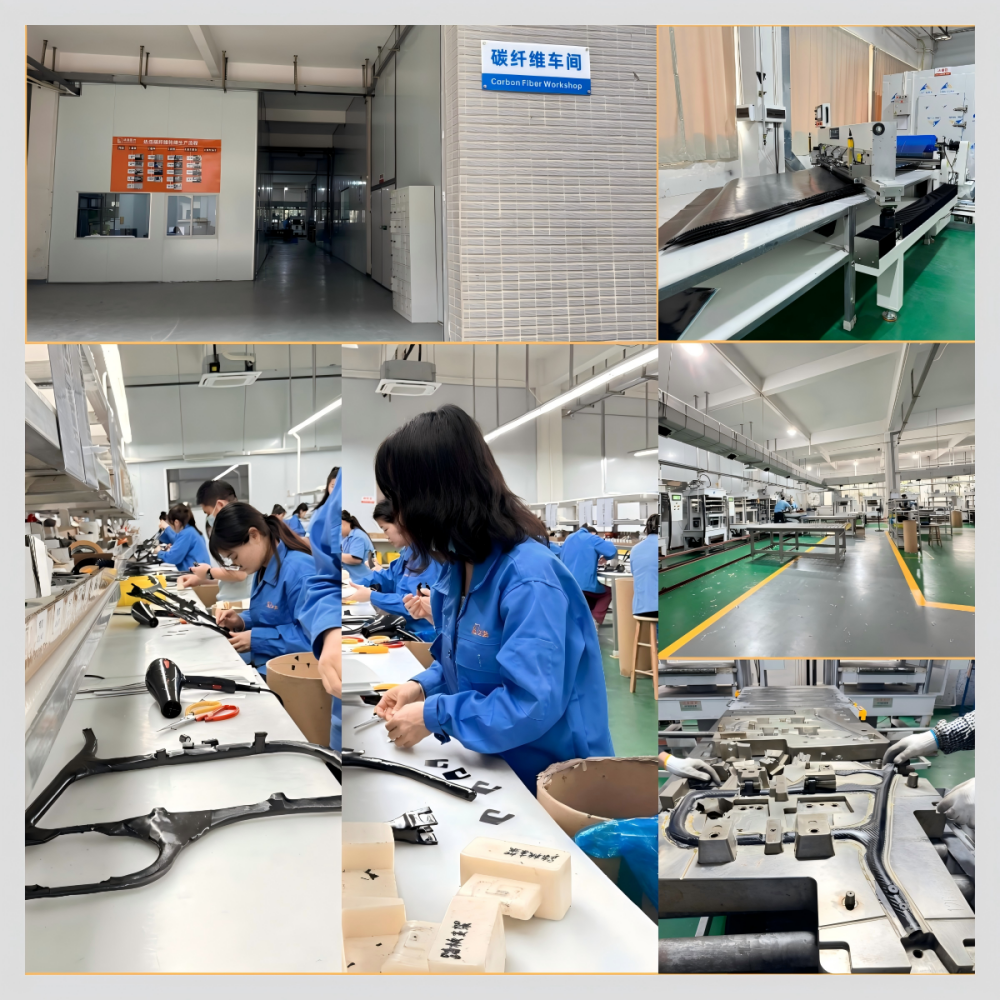

Carbon Fiber Electric Production Workshop

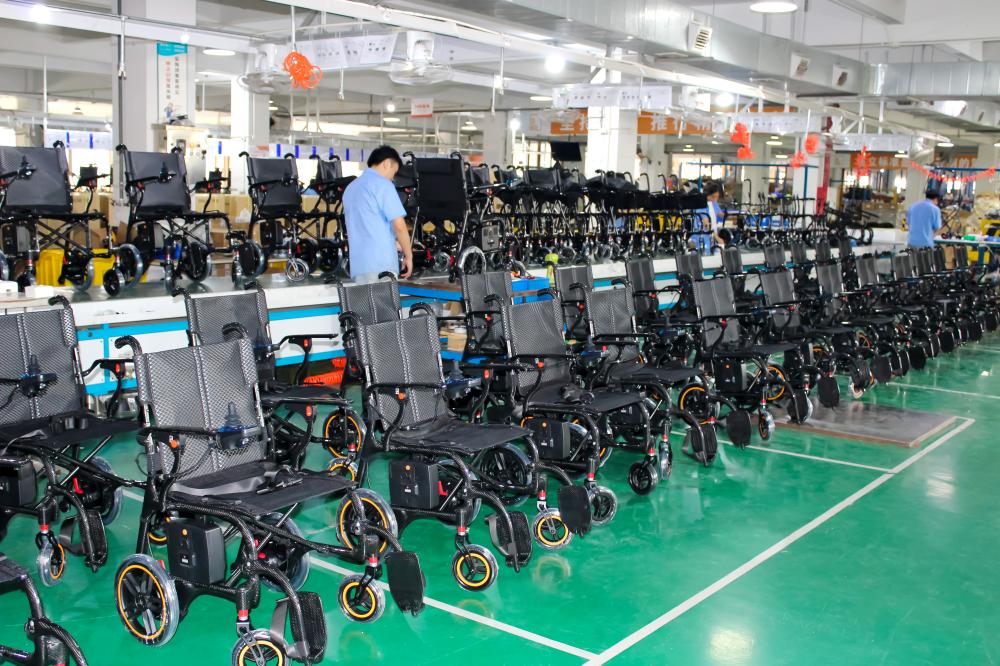

Carbon Fiber Electric Wheelchair Assembly Workshop

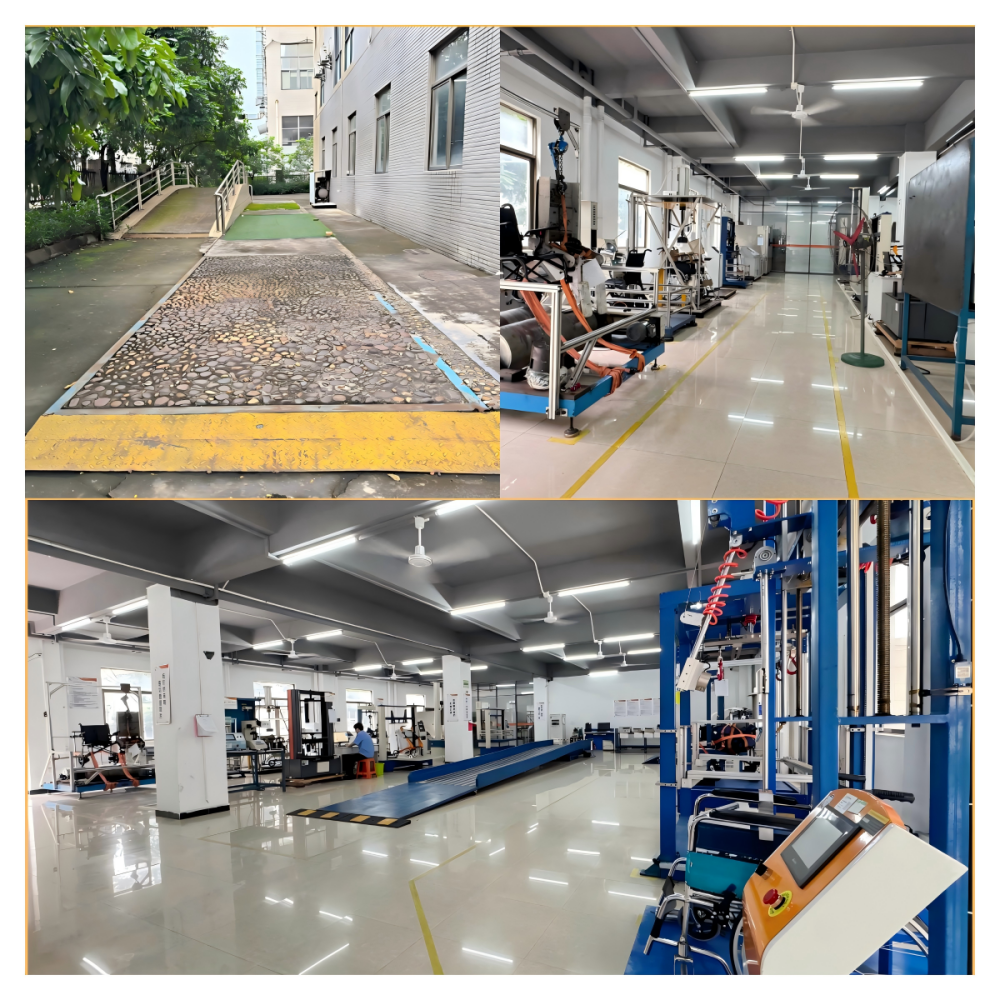

Carbon Fiber Electric Wheelchair Testing Center
CE, ISO9001, ISO13485
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
