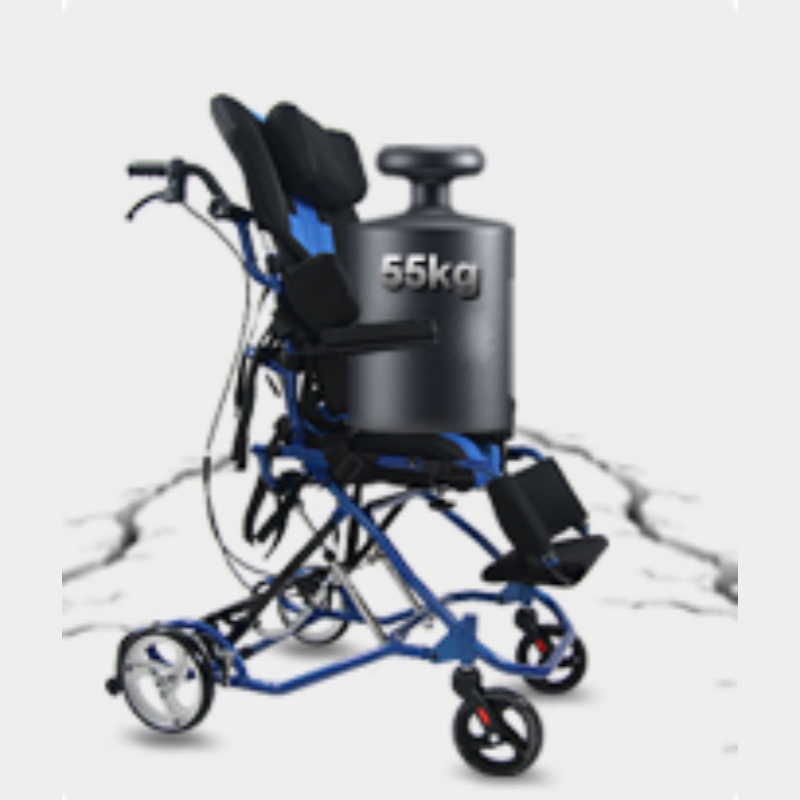

The main frame is welded from high-strength aluminum alloy tubing with a wall thickness of 2.8mm, capable of supporting up to 55kg. As effortlessly portable as a lightweight wheelchair, the entire bike weighs only 15kg, allowing parents to easily lift it with one hand, making transport and storage effortless. The surface is treated with a powder coating, making it resistant to aging and oxidation, ensuring it remains as good as new even after long-term use.
55kg capacity
15kg lightweight tape

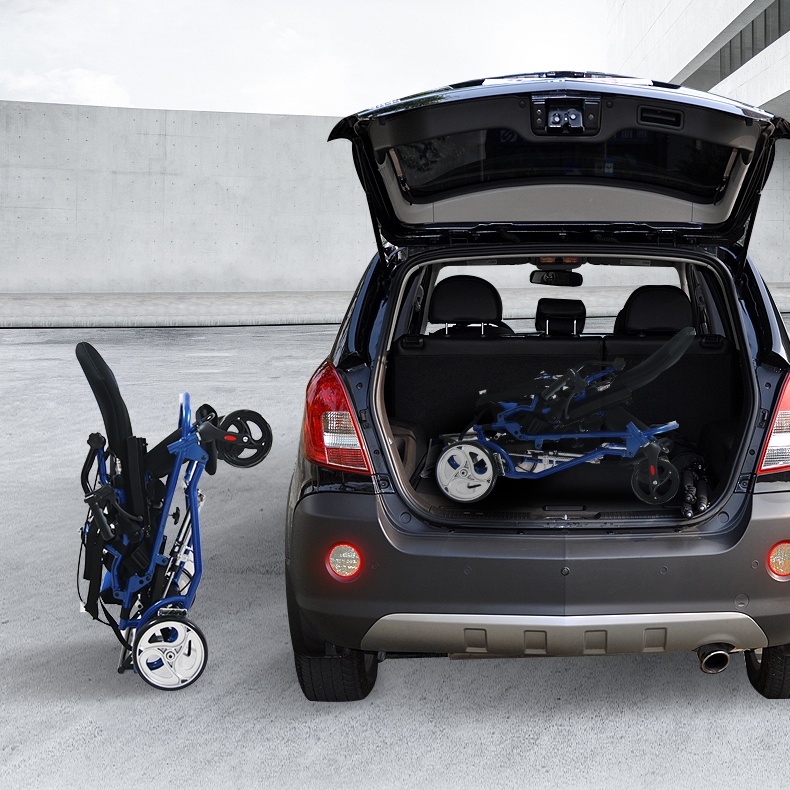

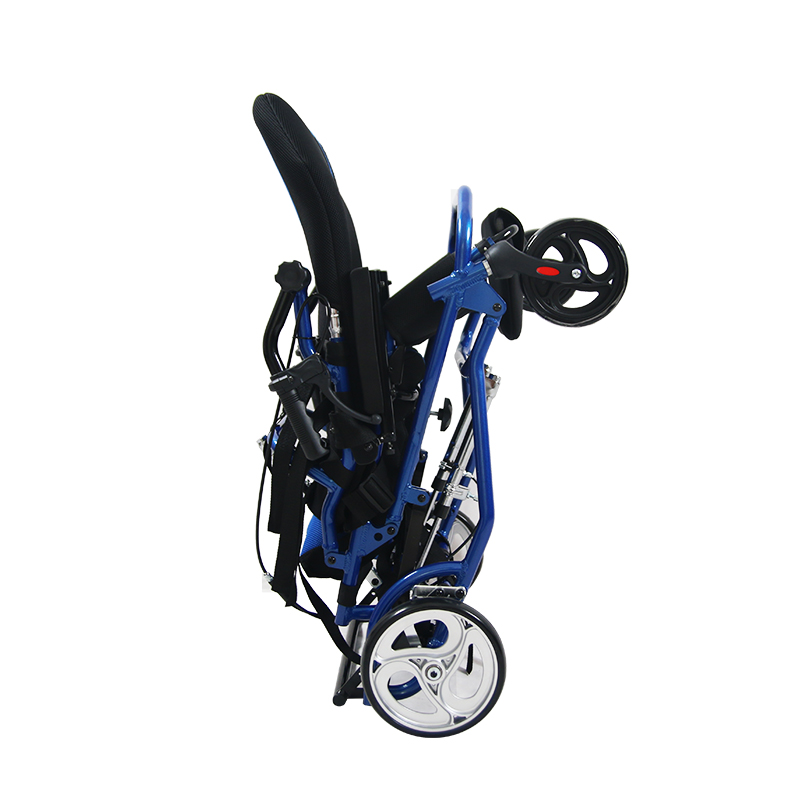

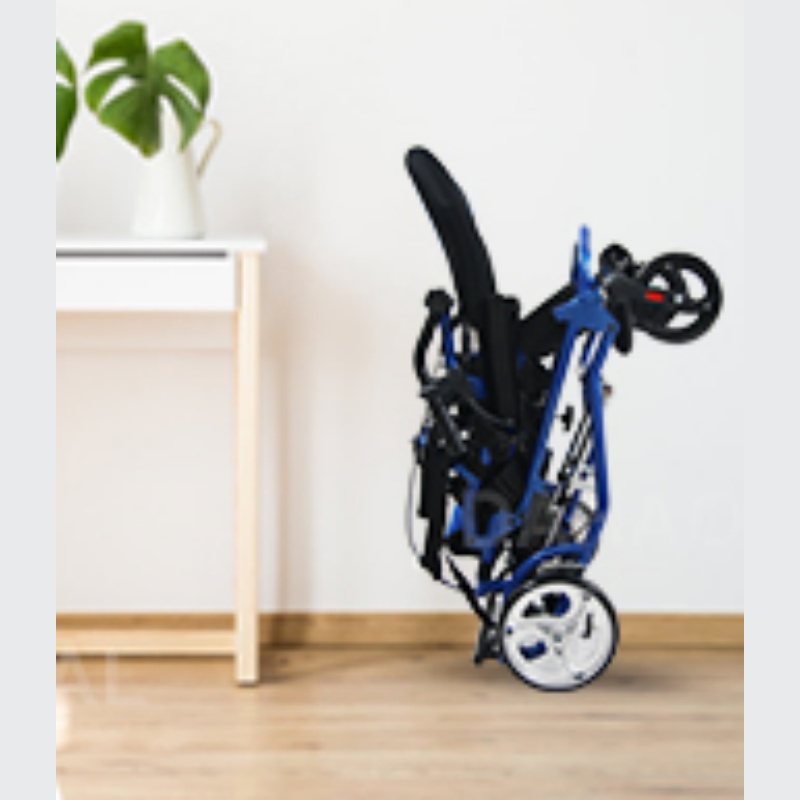

The foldable frame of the manual wheelchair features a safety pin structure, making folding simple and quick. When folded, its compact size allows for easy storage in a car trunk, saving home space and meeting the needs of family outings, medical visits, and rehabilitation, freeing children from the constraints of their environment.
Small folded size
Folded height 46cm

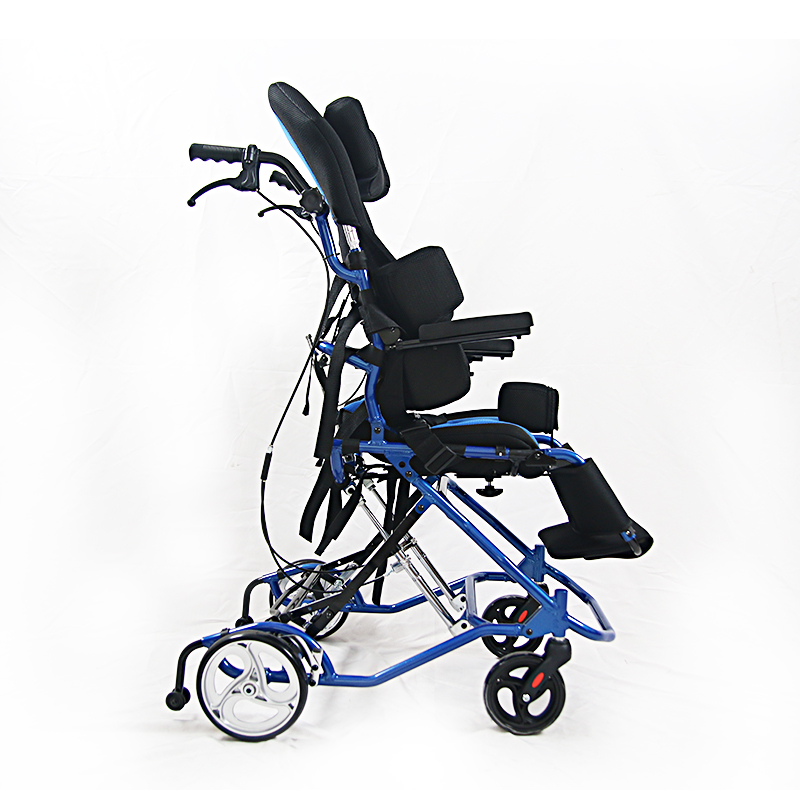

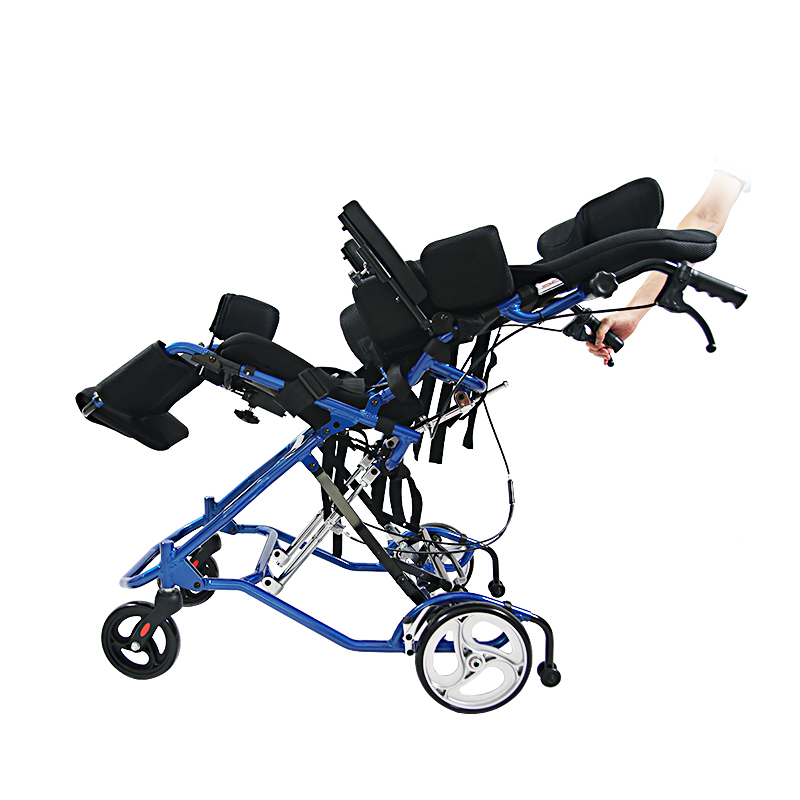

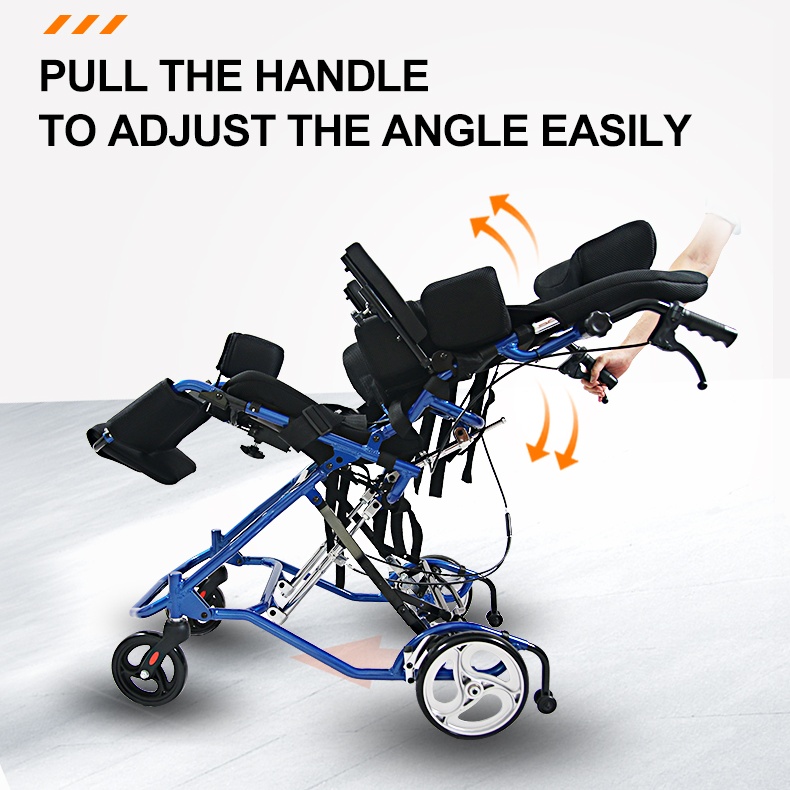

The pediatric wheelchair's seat and backrest feature stepless reclining/forward tilt adjustment with a wide range of angles, allowing for flexible switching of sitting positions according to the child's rehabilitation needs and rest status, effectively relieving fatigue.

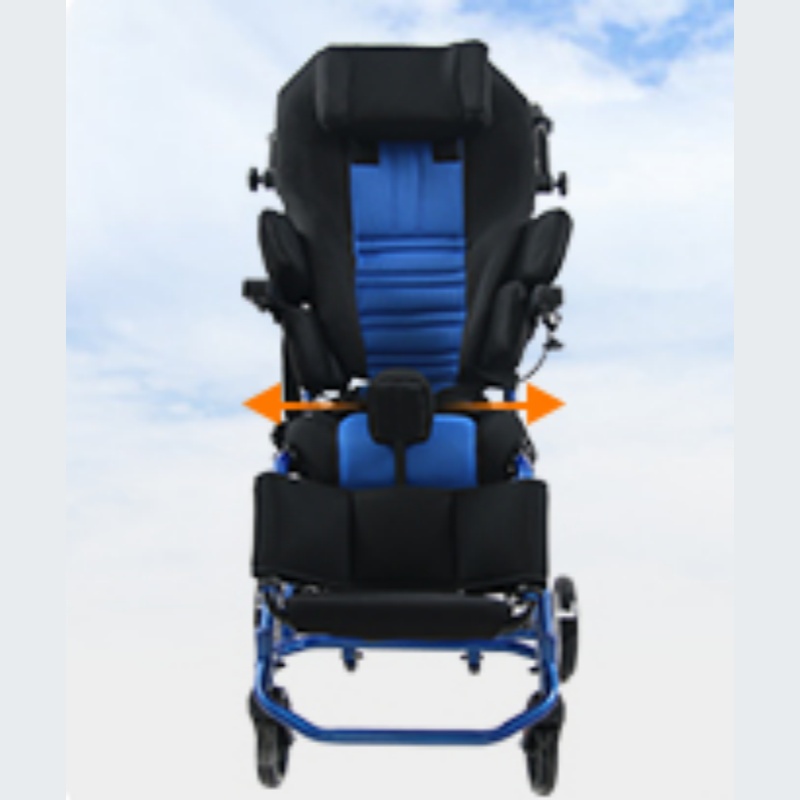

The seat depth, backrest height, armrest height, and footrest height are all adjustable, perfectly adapting to the physical development needs of children of different ages, accompanying the child through every step of their growth.

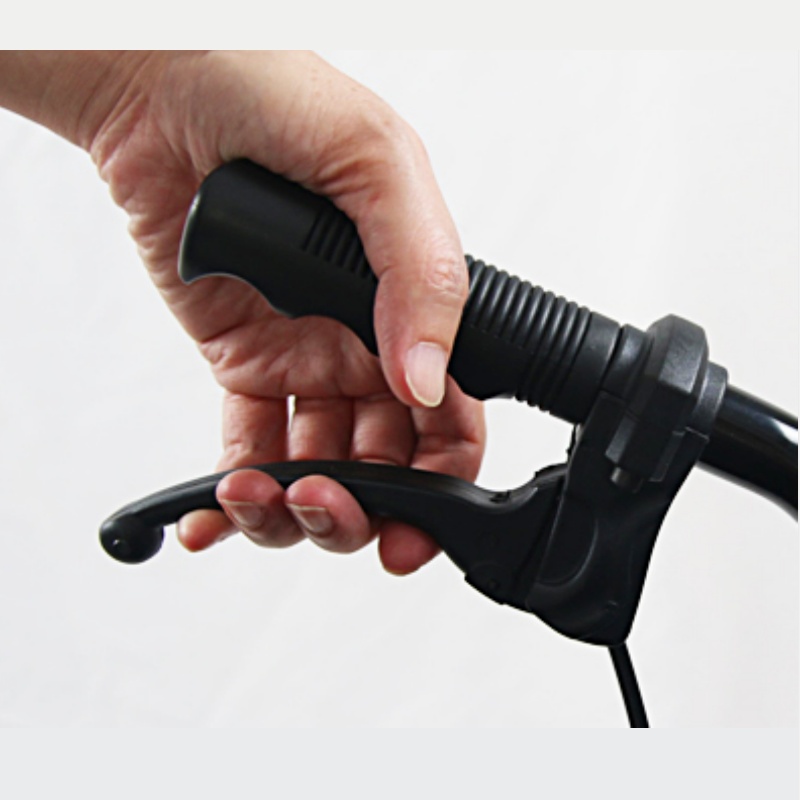

The handle angle has a wide range of adjustment, accommodating the operating habits of caregivers of different heights, making pushing and riding more effortless and comfortable.
Seat and backrest angle adjustment
Multi-protection for head, chest, waist, crotch
Adjusting angle switch

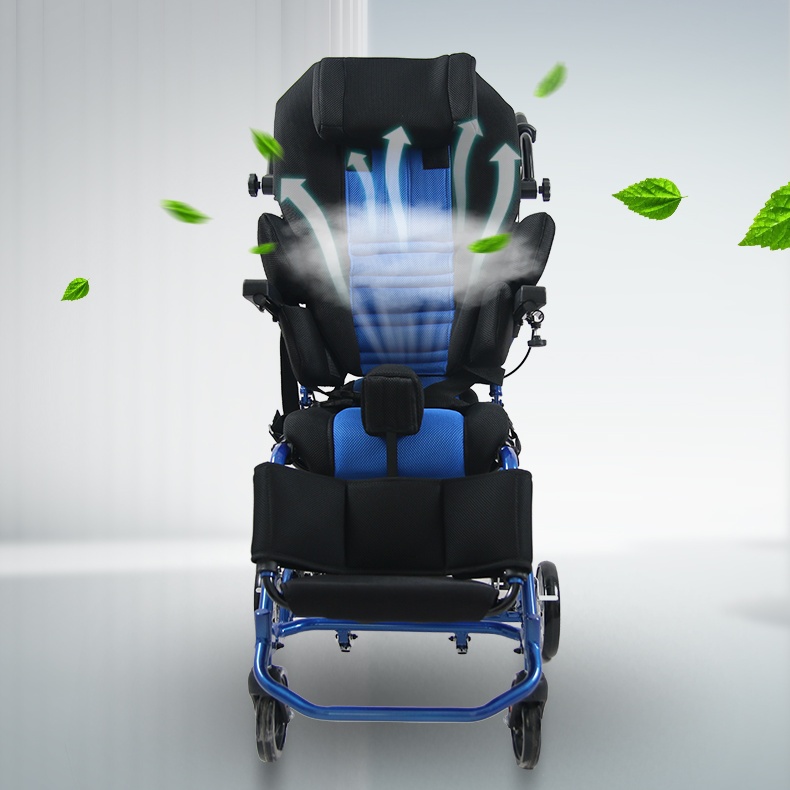

The seat cushion and backrest of this aluminum wheelchair feature a two-tone breathable mesh design, soft in texture, with excellent ventilation and heat dissipation, keeping children cool and sweat-free even on long journeys. The two-tone design also enhances its aesthetic appeal.
Breathable mesh backrest cushion

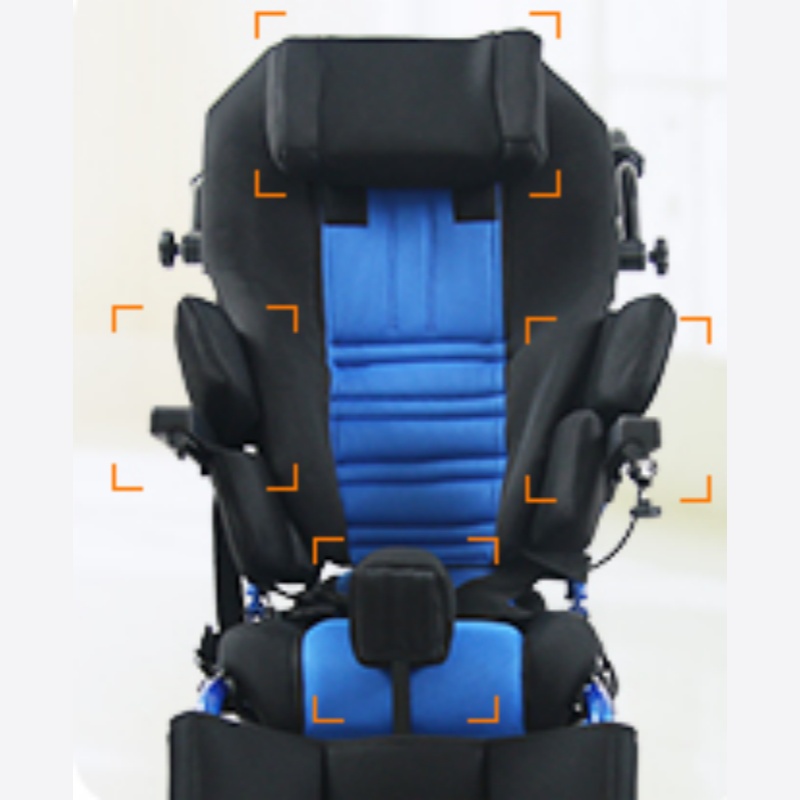

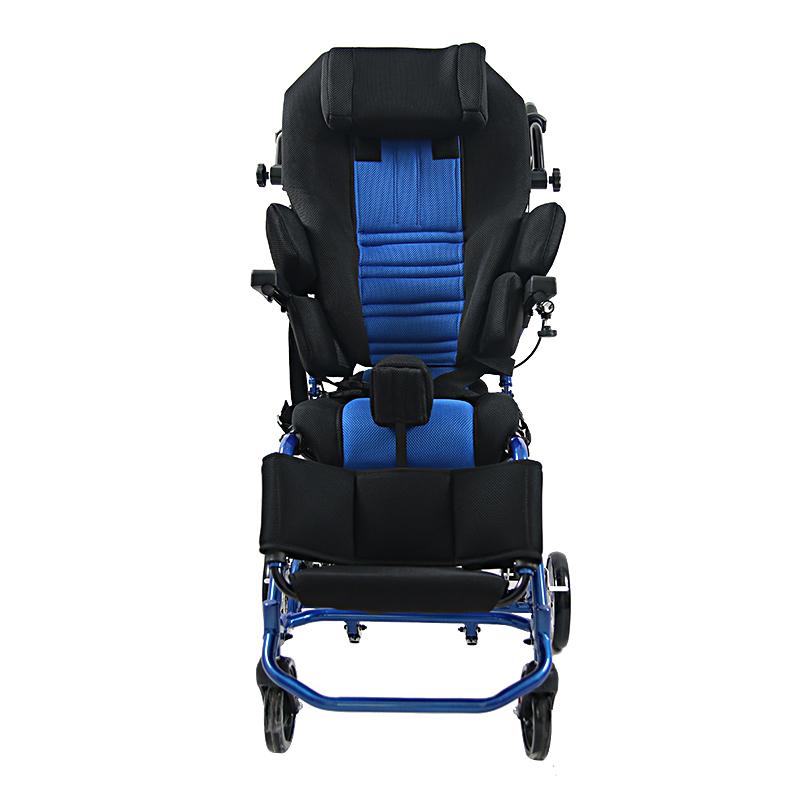

Equipped with an adjustable headrest and triangular padding, along with upper and lower seat belts and a front bumper, multiple layers of protection ensure children's safety.
The foot-operated brake system is easy to operate, provides sensitive and reliable braking, and stops the vehicle instantly with a single press, effectively preventing rollover and enhancing travel safety.
Multi-protection for head, chest, waist, crotch
Pedal brake device
Offers a variety of color schemes such as turquoise, bright yellow, and green plaid. This manual wheelchair becomes a vibrant companion—there are both calm and sophisticated solid colors and lively and refreshing plaid patterns, which can be freely selected according to the child's preferences and usage scenarios, making rehabilitation full of personality and vitality.

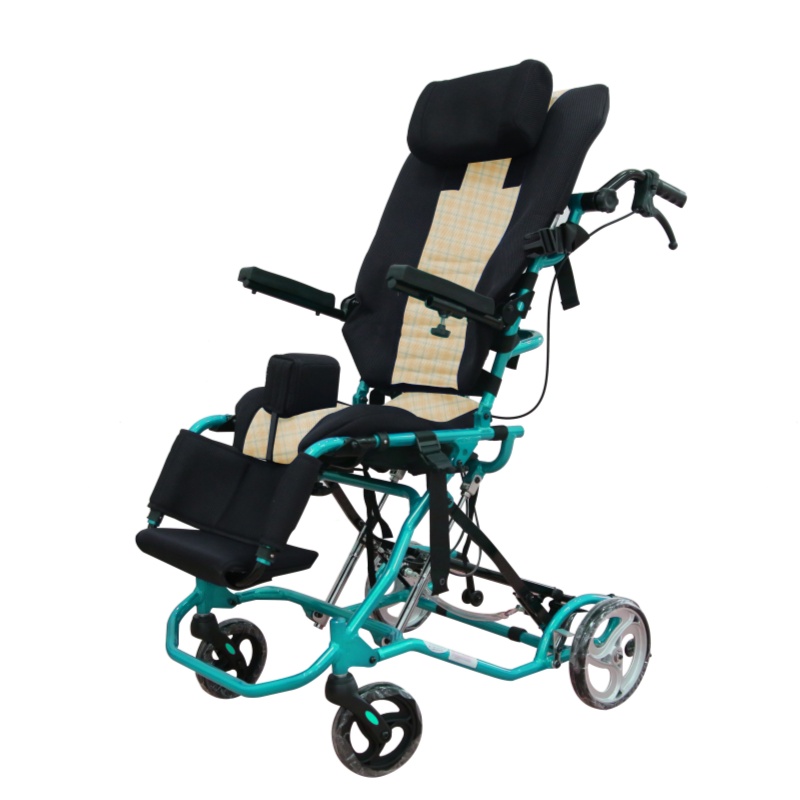

Turquoise

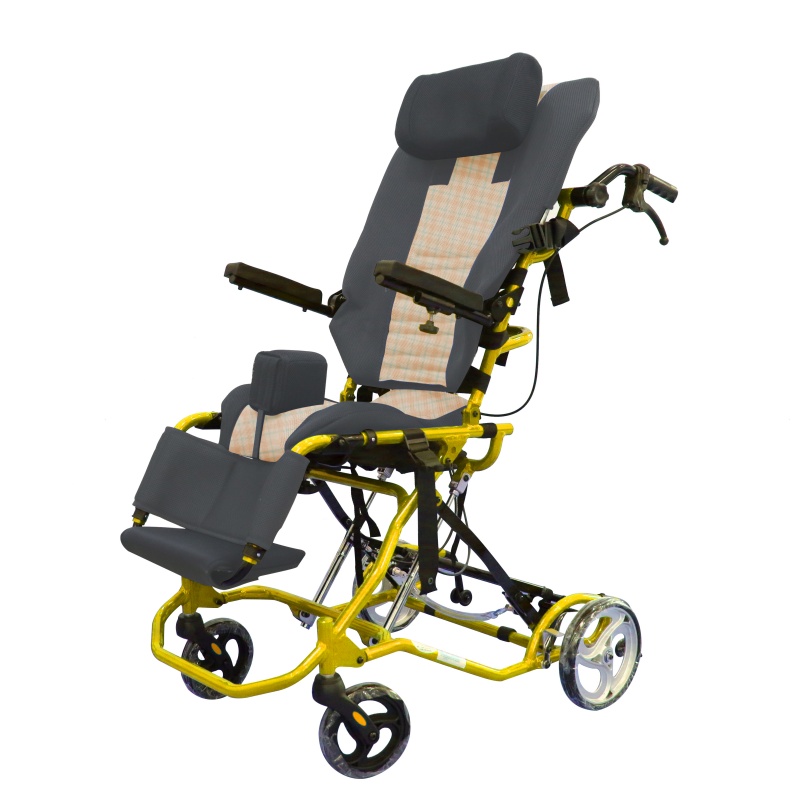

Bright yellow

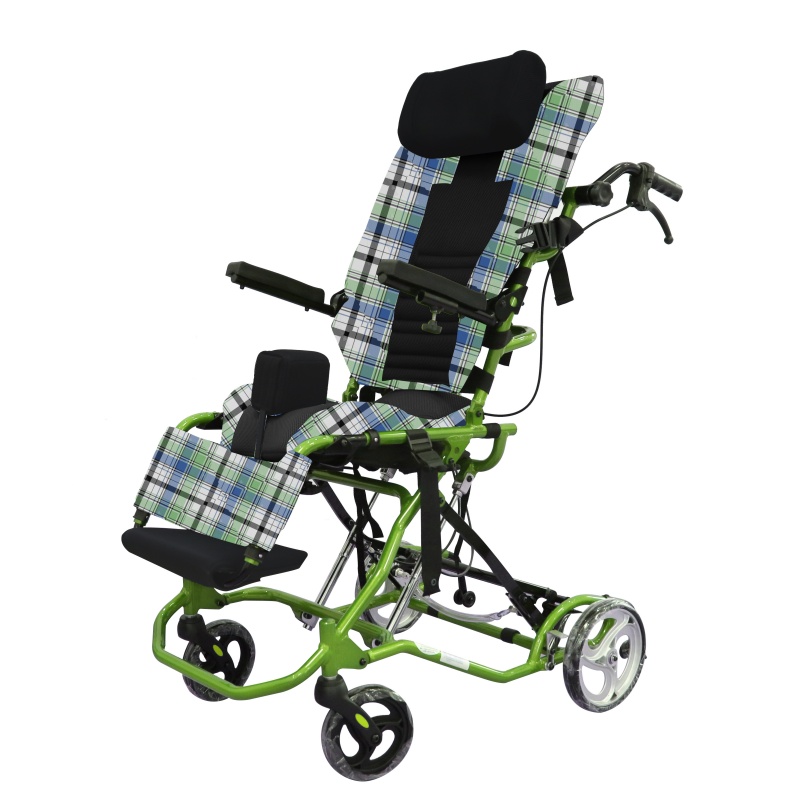

Green plaid

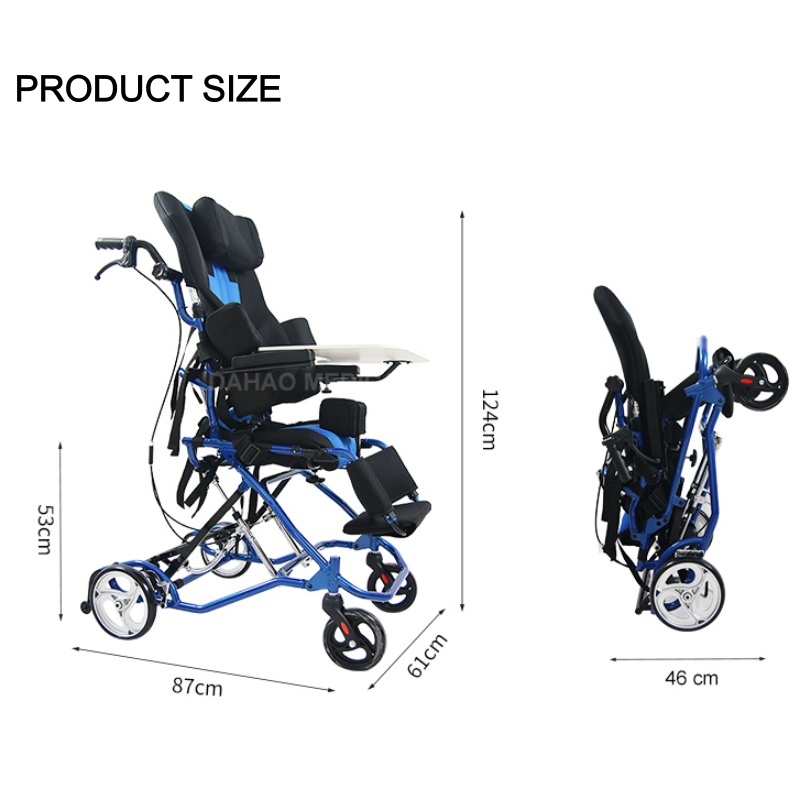

| Name | Parameter |
| Item no. | DY01501L |
| Expand dimensions (L*W*H) | 87*61*(18~124)cm |
| Folded dimensions (L*W*H) | 86*61*46cm |
| Handrail width | 39cm |
| Handrail height | 16-19cm |
| Seat width | 32cm |
| Seat depth | 23-30.5cm |
| Seat height | 53cm |
| Backrest height | 69-75cm |
| Pedal height | 21.5-30.5cm |
| Front/Rear wheel diameter | 6-inch/8-inch |
| Main frame material | Aluminum |
| Backrest angle adjustment | 40°/80° |
| Seat angle adjustment | 45°/5° |
| Packaging size | 630*500*870 mm |
| Net weight | 15kg |
| Gross weight | 18.7kg |
| Loading capacity | 55kg |
| Attachment | Platter, anti-tip wheels, tool kit (optional) |
| Recommended for | 6 to 12 years old, weight 40kg, height 110 to 140cm |
CE, ISO9001, ISO13485, US FDA, ANVISA, TGA, Free Sale Certificate
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
