The main frame is constructed from a high-strength aluminum alloy, ensuring durability and a maximum load capacity of 100 kg. Designed for easy transport, this aluminum wheelchair can be quickly folded and compactly stored in a car trunk, thanks to its lightweight yet sturdy build.

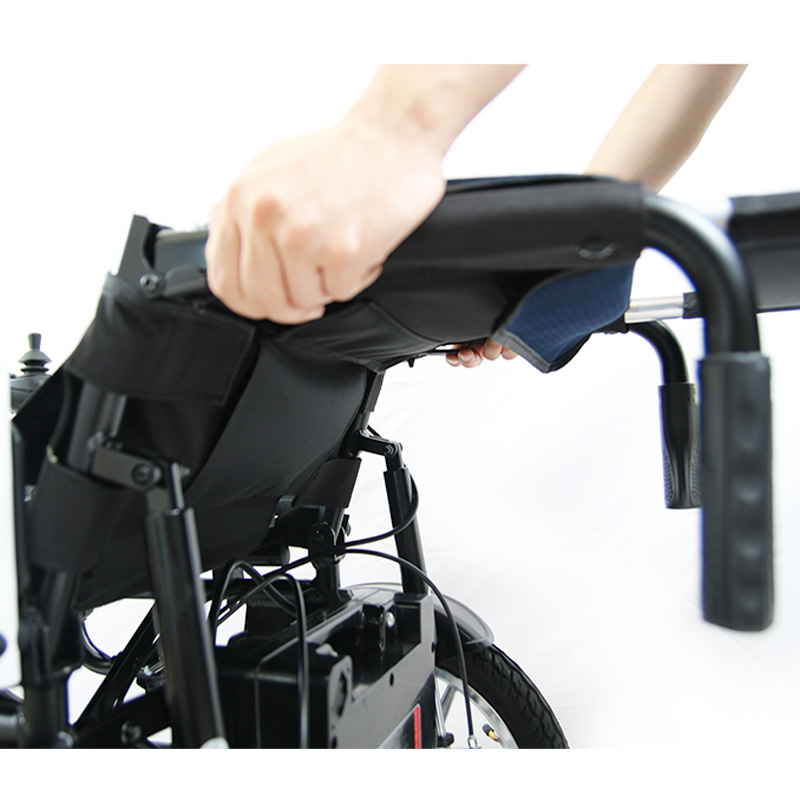

Foldable backrest

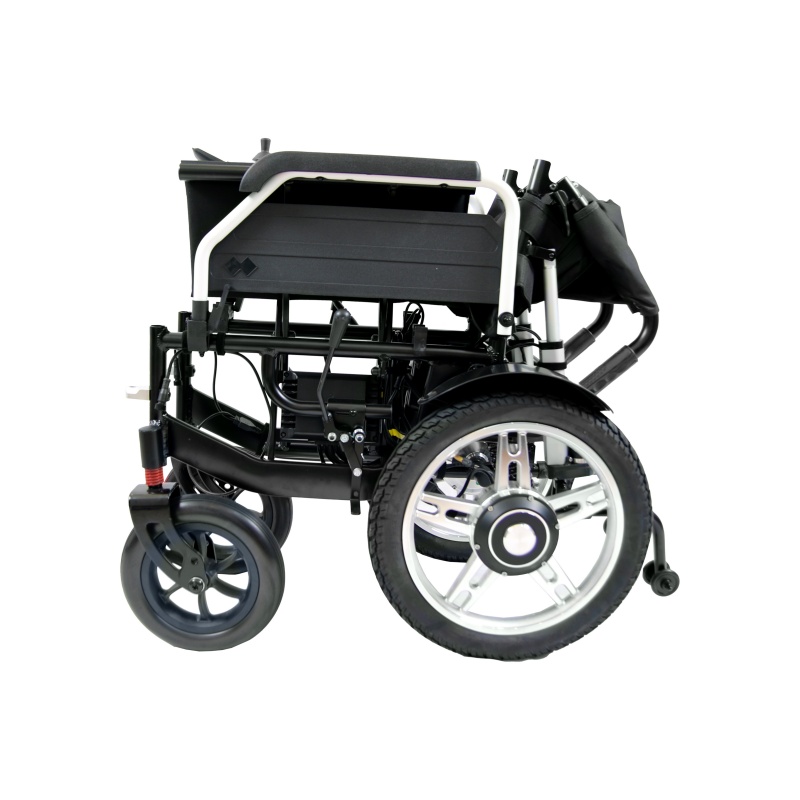

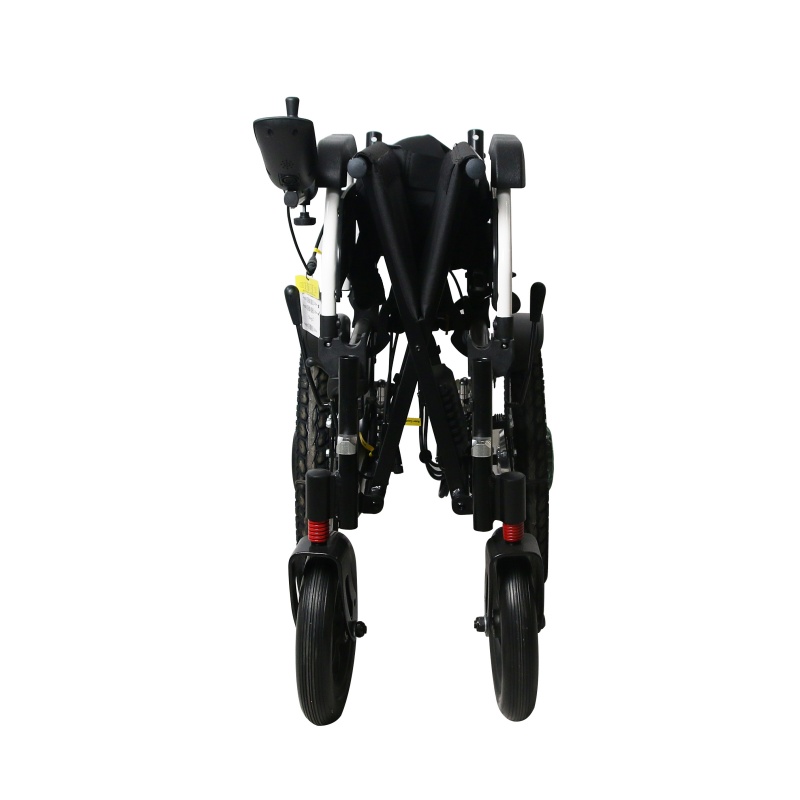

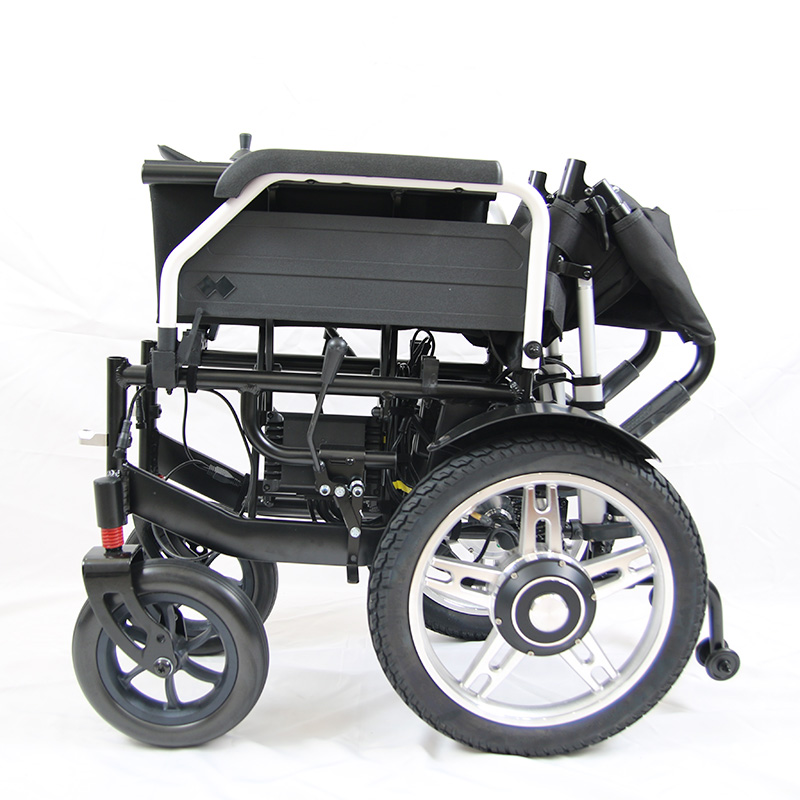

Easy folding and available for trunk

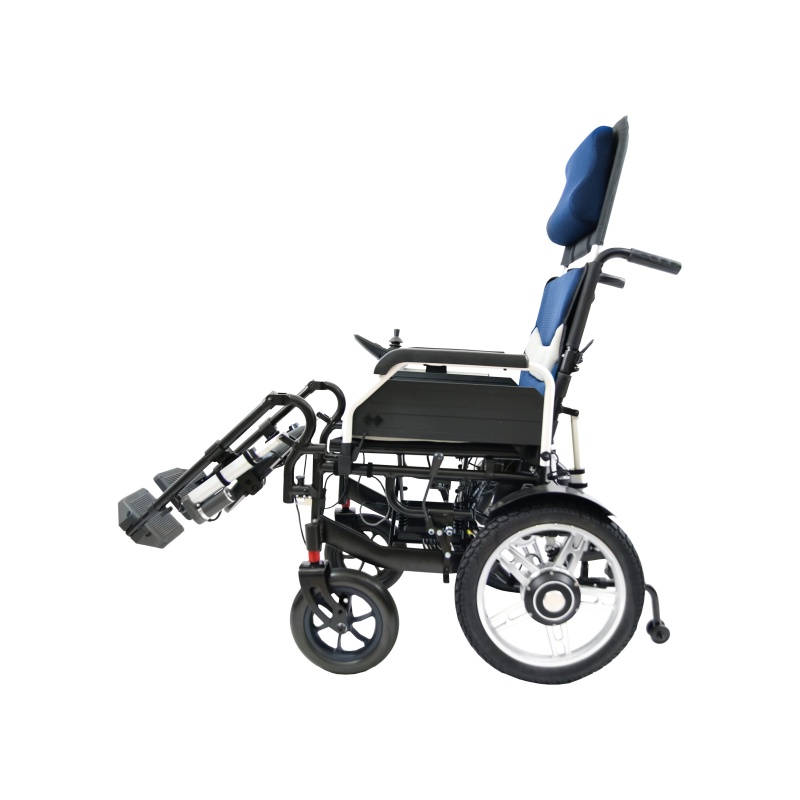

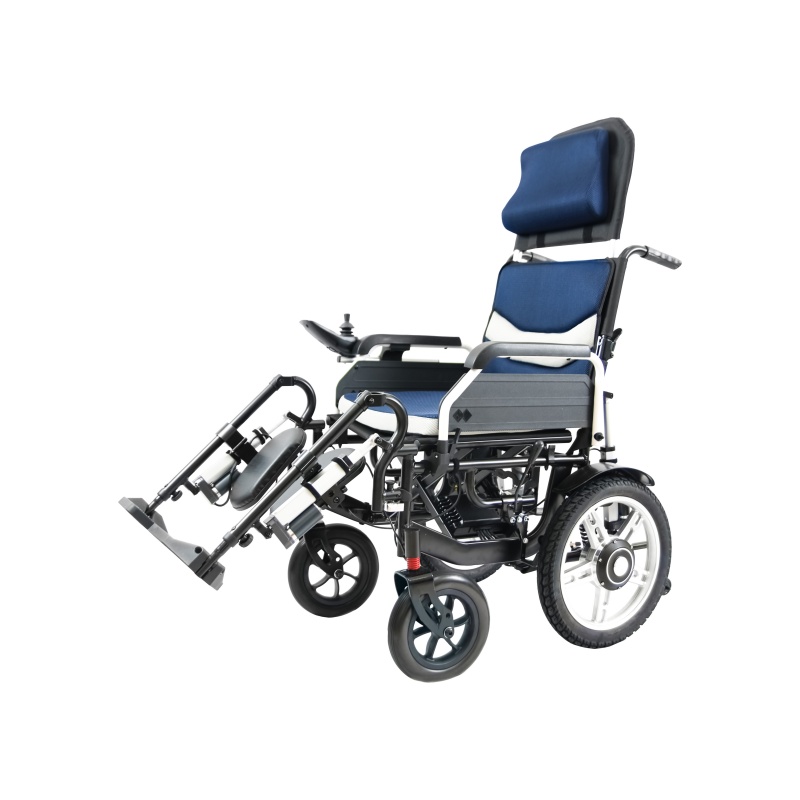

Equipped with an intelligent electric remote control system, users can easily adjust the footrest height and backrest tilt angle. The backrest of this high back wheelchair can recline up to 170°, supporting various postures from upright sitting to near-reclined, meeting comfort needs in different scenarios such as rest and travel.

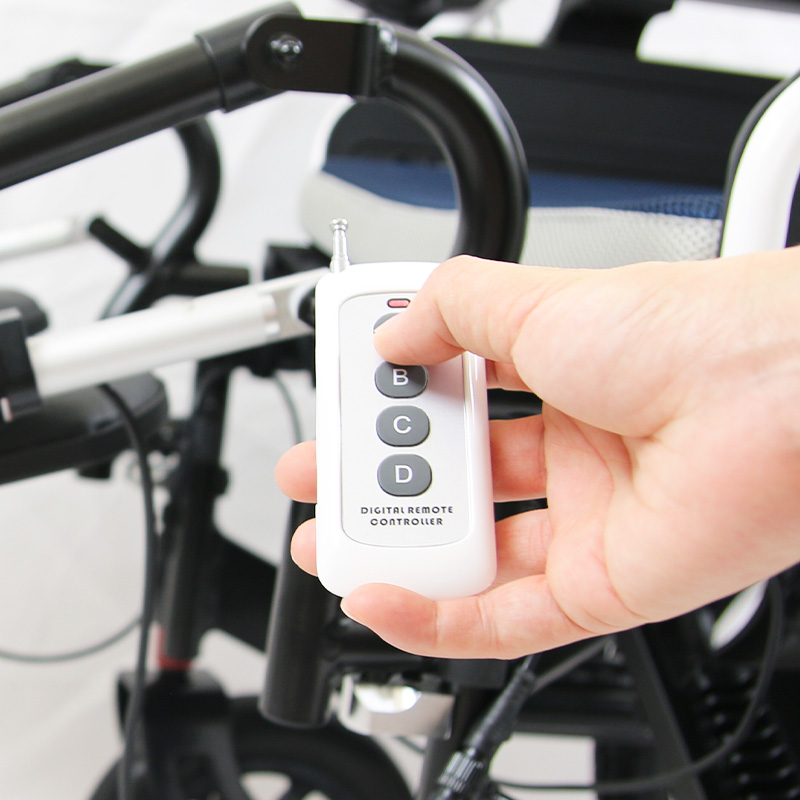

Remote control elevating

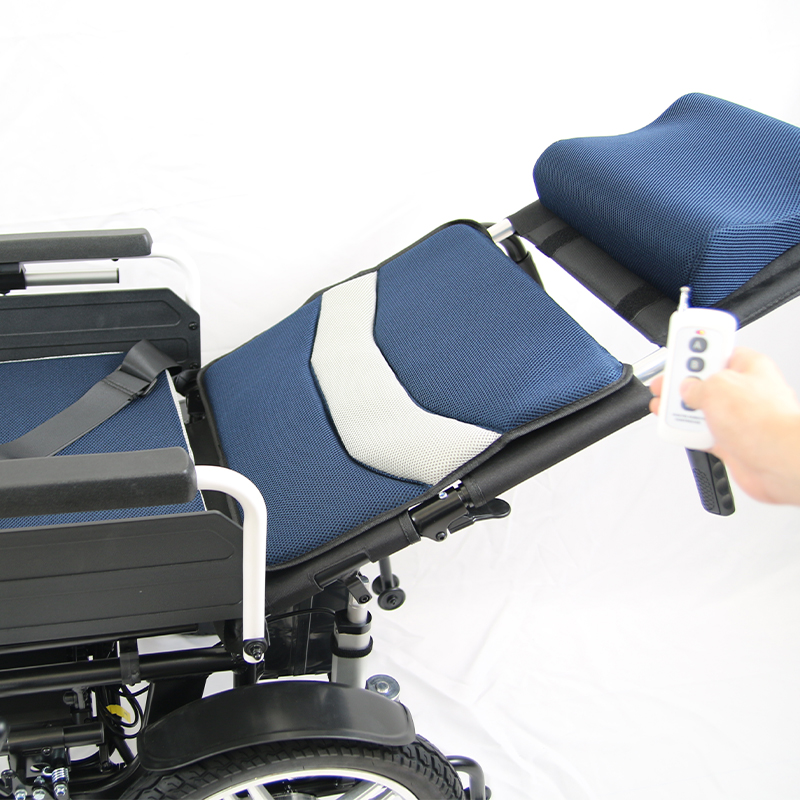

Backrest can recline by remote control

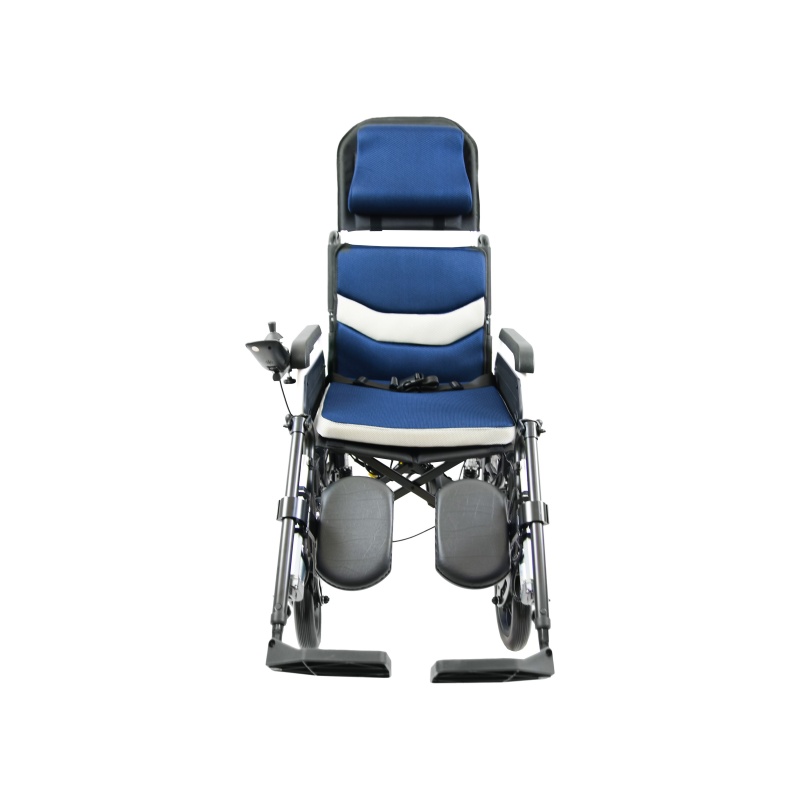

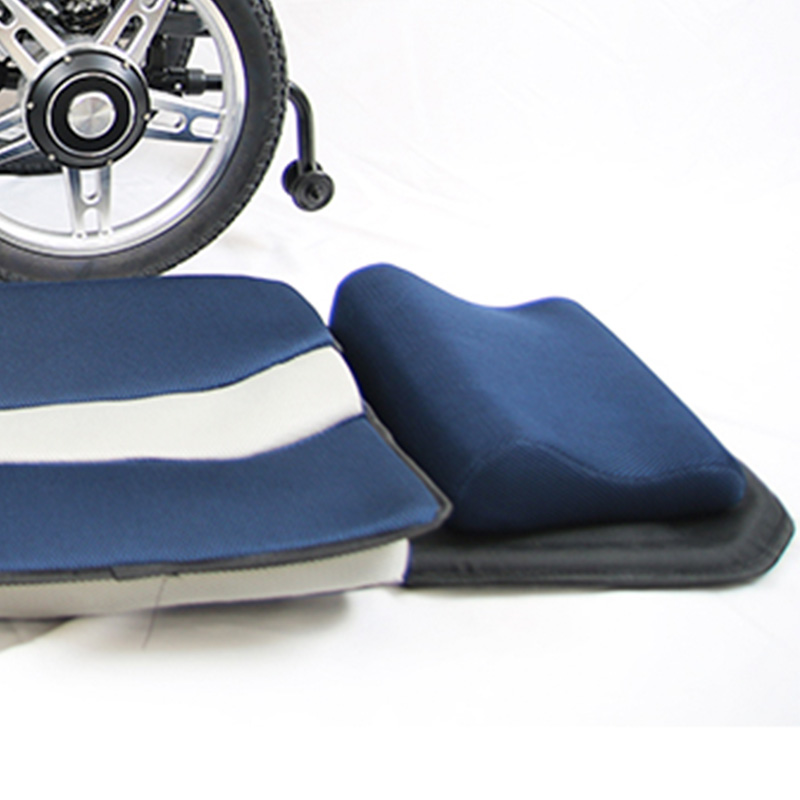

The seat is filled with high-density rebound foam in a two-tone dark blue and off-white color scheme, providing a soft touch and lasting support. The headrest is secured with Velcro, allowing for quick adjustment of position and height according to the user's height, providing head and neck support and enhancing overall riding comfort.
Adjustable headrest

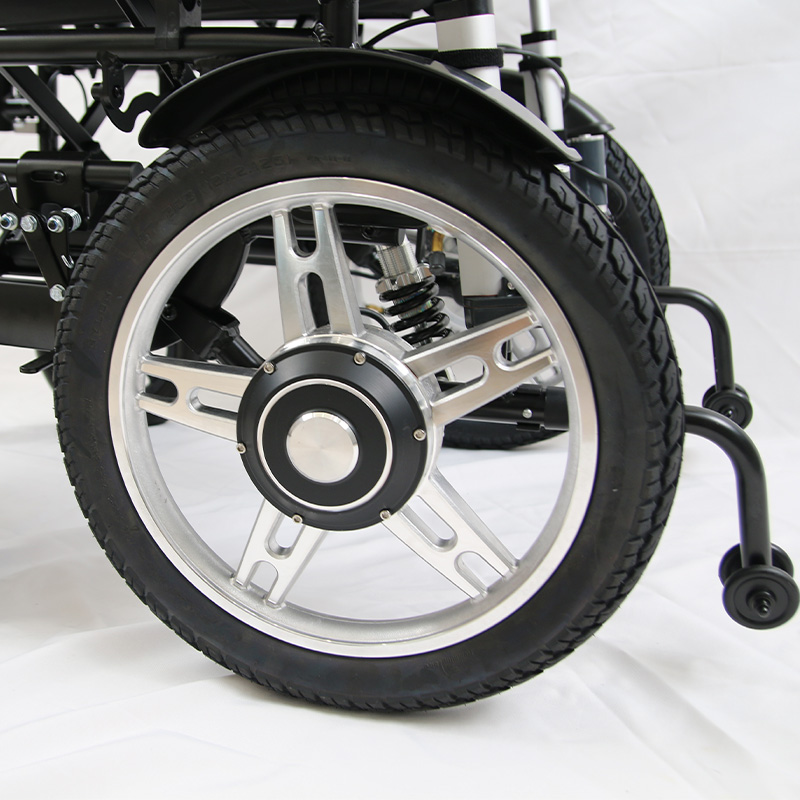

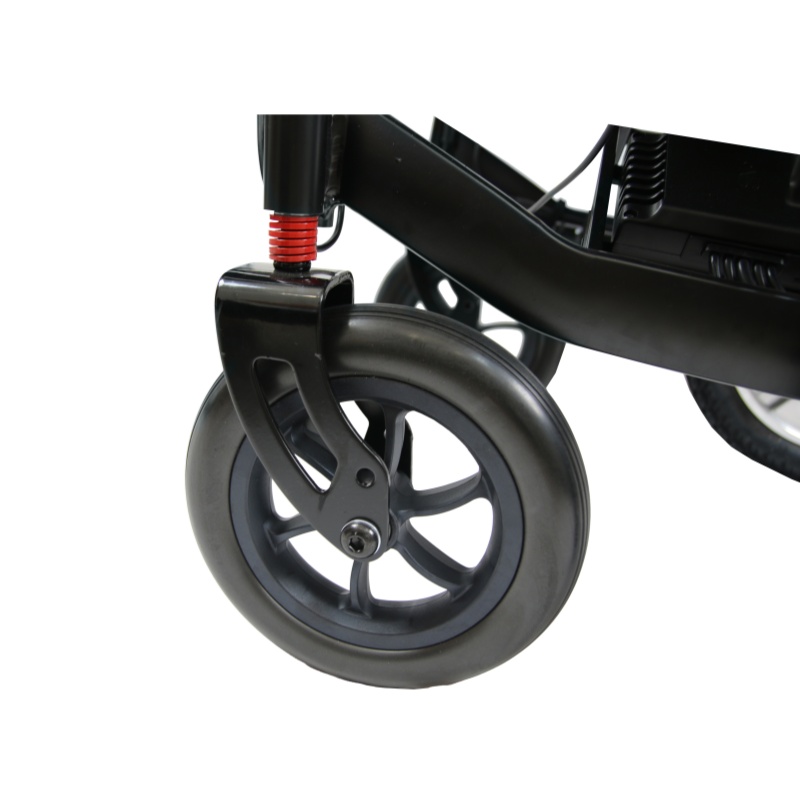

The front wheel is equipped with a 10-inch PU silent swivel wheel, combined with a shock-absorbing front fork structure, effectively mitigating road bumps. The rear wheels of the electric wheelchair are 16-inch widened, anti-slip pneumatic tires with deep treads for strong grip, adapting to various road conditions such as asphalt and gravel roads, providing a stable ride and good passability.
PU solid tire
Powerful and effective brushless motor

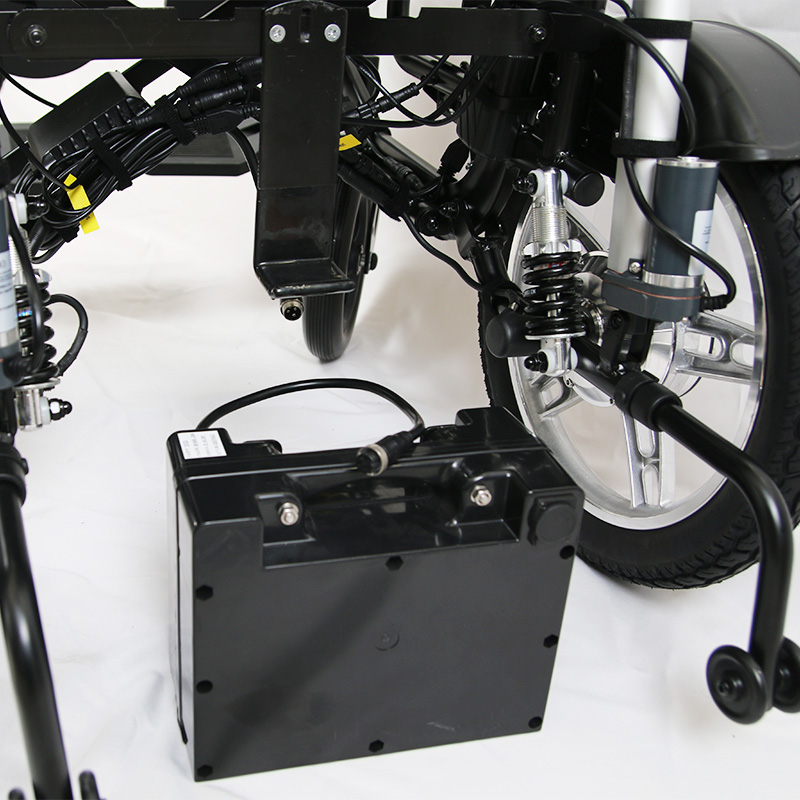

The aluminum wheelchair features a 20 Ah high-capacity removable lithium battery, the maximum range is approximately 25 km on a full charge. The battery can be removed for individual charging. It uses a 700 W high-performance brushless motor, combined with FOC vector control technology, achieving smooth start-stop, a top speed of 6 km/h, and can easily climb 15° slopes.

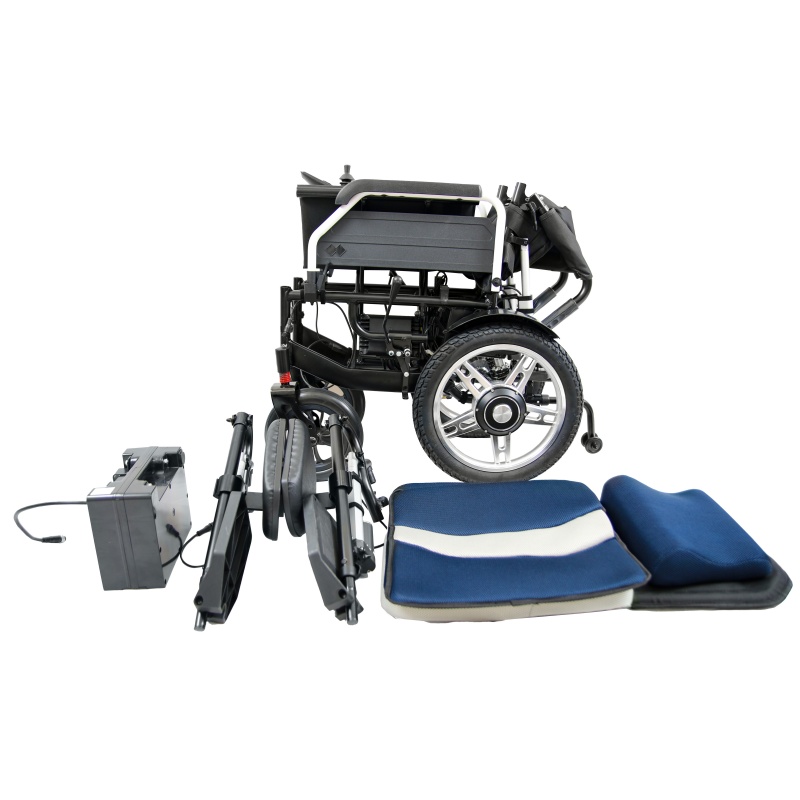

Detached battery

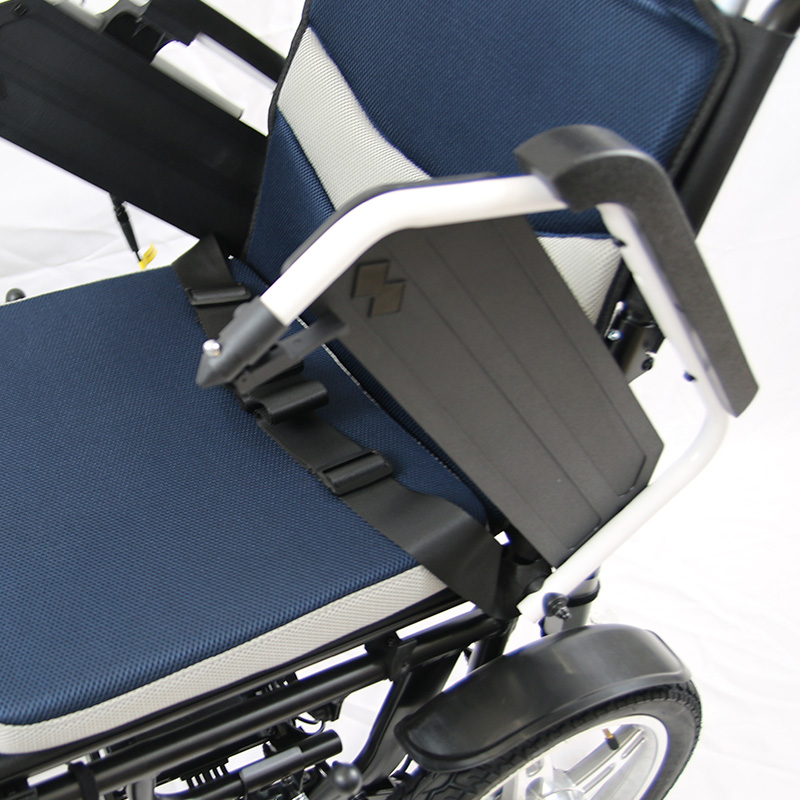

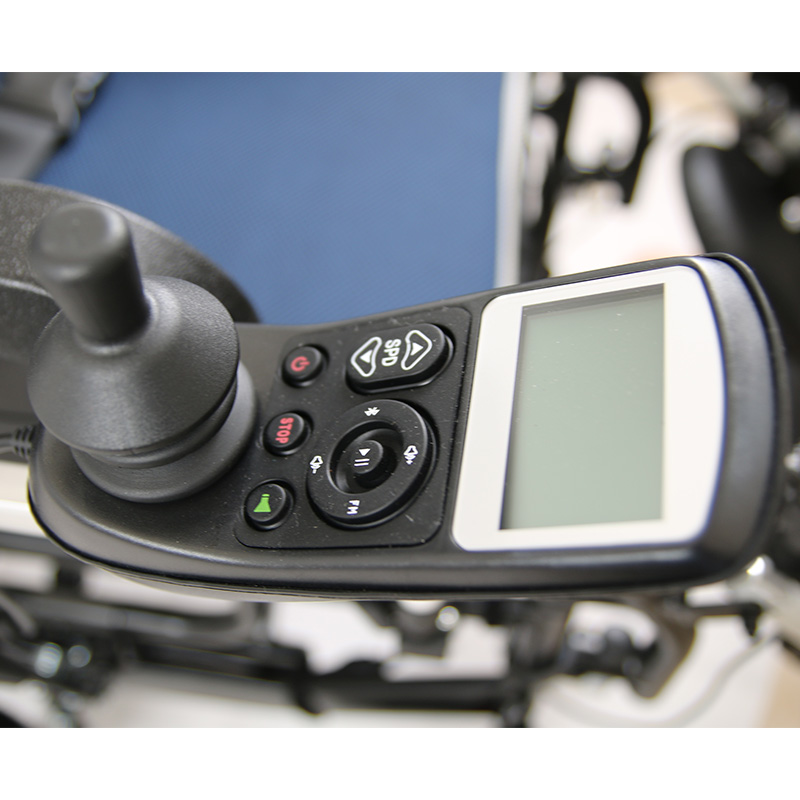

This electric wheelchair enhances both safety and convenience: its side armrests flip down for easy side entry and exit; anti-tip wheels at the rear prevent rollover risks; three-point seat belts provide driving security; and an integrated LCD control panel clearly displays real-time speed, battery, and mileage for intuitive operation.
Flip up armrest
LCD display
| Name | Parameter |
| Item no. | DY01107(6)LAGC-46 |
| Total height | 1240 mm |
| Overall width | 680 mm |
| Total length | 1120 mm |
| Fold width | 390 mm |
| Fold length | 680 mm |
| Fold height | 340 mm |
| Seat width | 460 mm |
| Seat depth | 430 mm |
| Seat height | 510 mm |
| Front wheel | 10-inch |
| Rear wheel | 16-inch |
| Motor power | 350W*2pcs |
| Maximum speed | 6 km/h |
| Endurance | 20-25 km |
| Battery | Lithium 24V 20AH |
| Packaging size | 94*41*82 cm |
| Net weight | 36 kg |
| Loading capacity | 100 kg |
CE, ISO9001, ISO13485, US FDA, ANVISA, TGA, Free Sale Certificate
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
