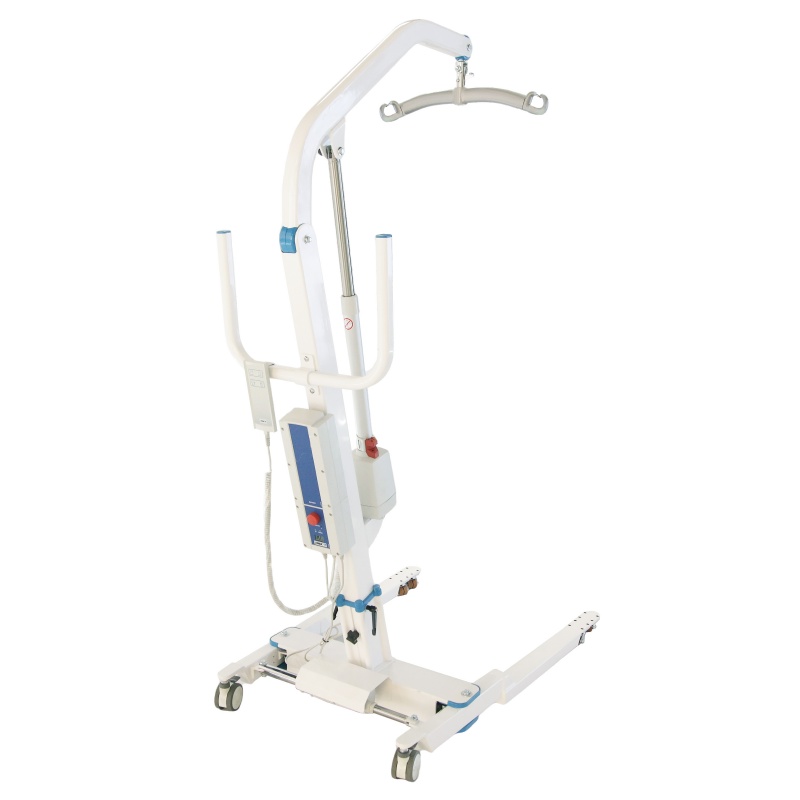

High-Strength Aluminum Alloy Frame: The entire frame of the electric patient lifter is constructed from aerospace-grade high-strength aluminum alloy tubing with a max loading capacity of 205 kg. Its robust design safely distributes the user's weight, significantly reducing physical strain on caregivers and promoting a safer transfer process.
Advanced Powder Coating Surface Treatment: This lift offers excellent anti-aging and anti-oxidation properties, maintaining its aesthetic appeal even after prolonged use and facilitating cleaning and disinfection.

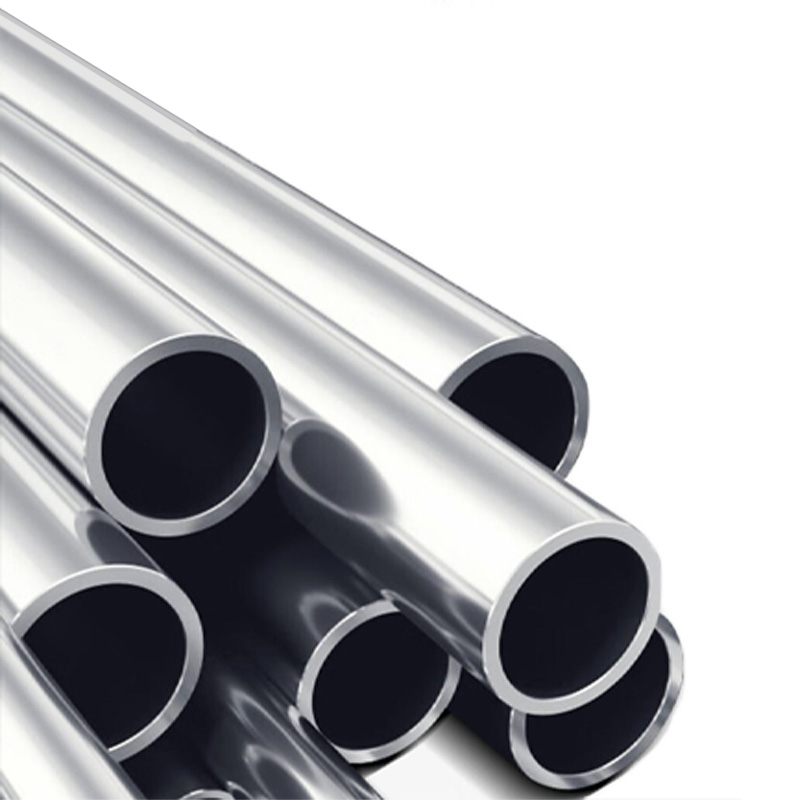

High strength aluminum tube

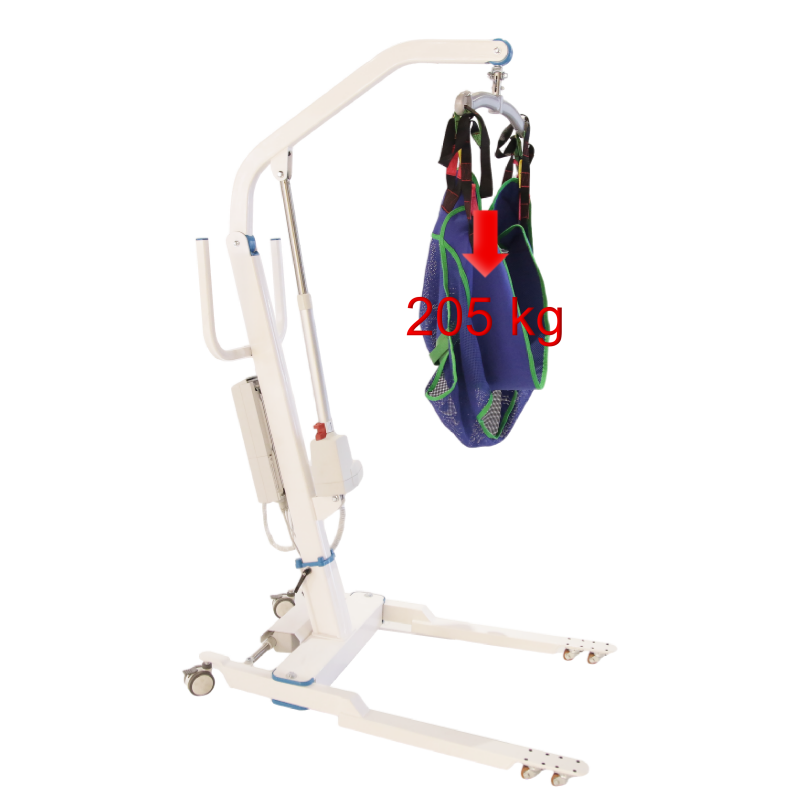

Maximum load capacity up to 205kg

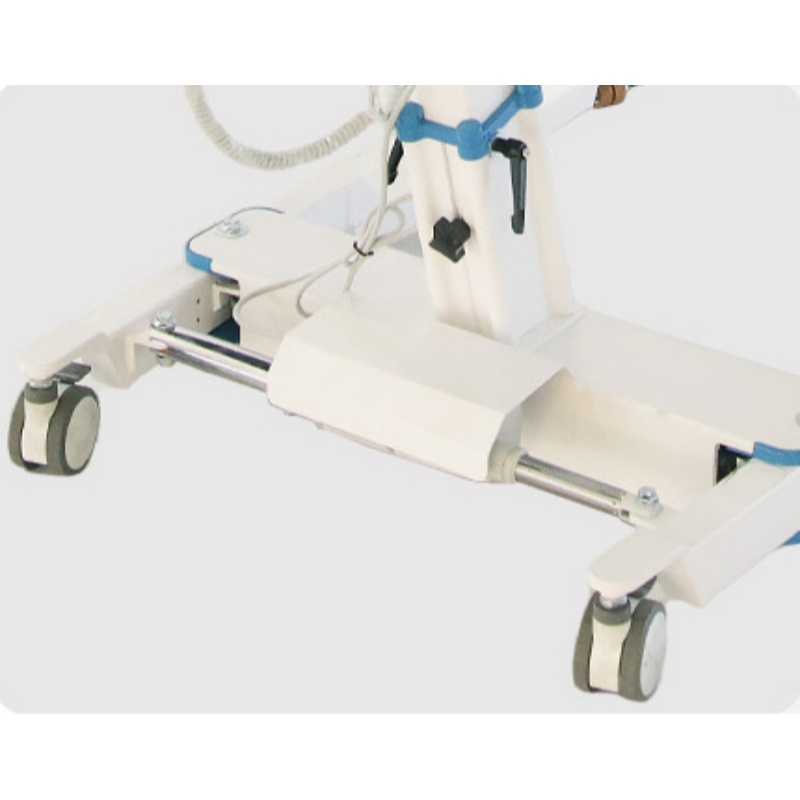

Adjustable Base: The base of the electric transfer lifter can adjust up to 40°, enabling flexible adjustment of the base width and enhancing stability on various ground surfaces.
Ultra-Low Front Wheel and Support Leg Design: Easily slides into low spaces such as under beds and sofas, adapting to most nursing environments and home settings.
Motorized adjustable of base width

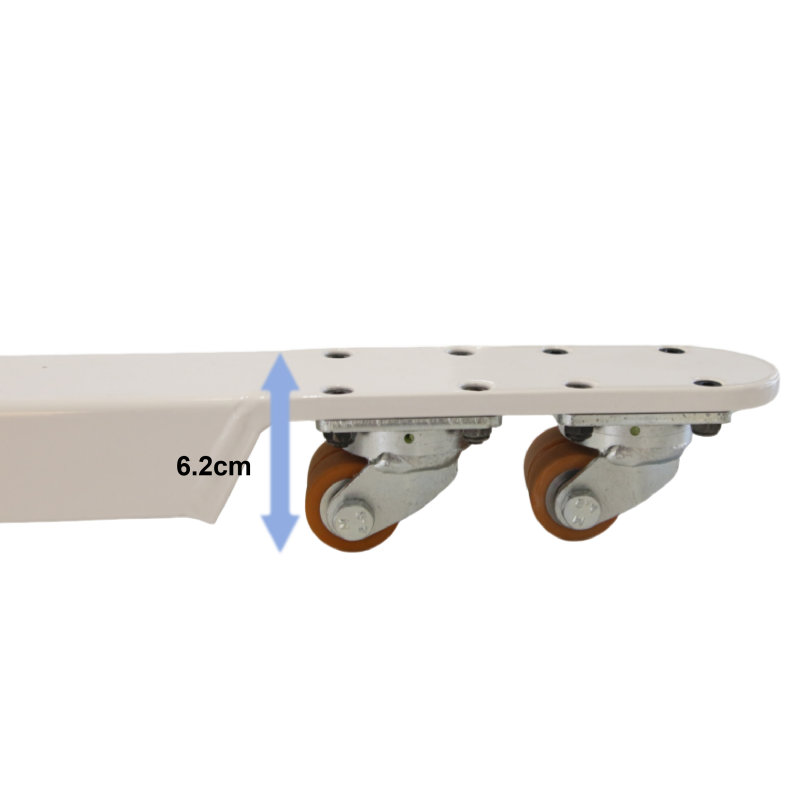

Ultra-low front wheel

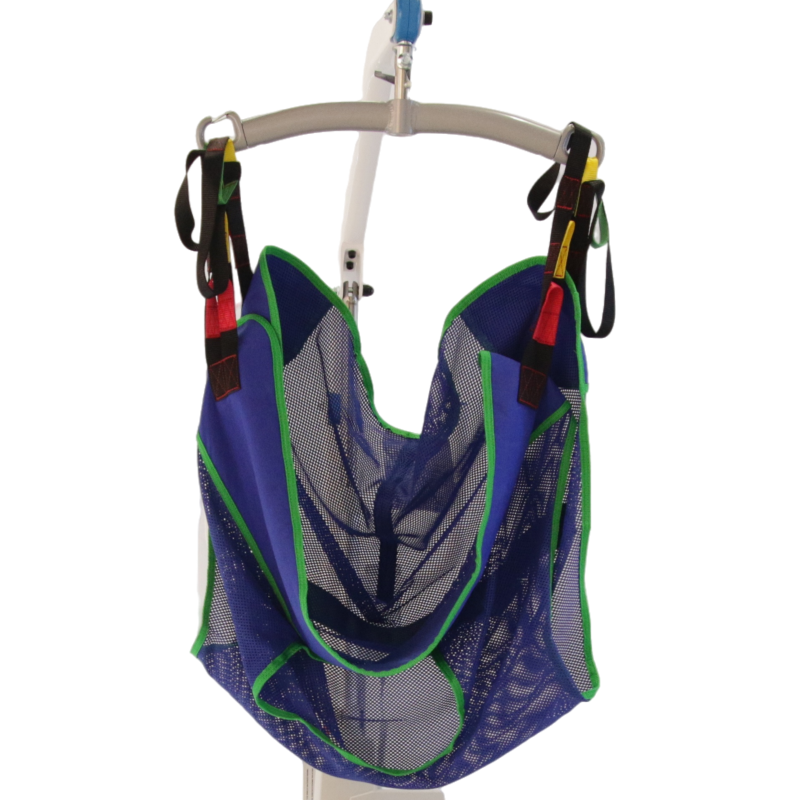

High-Strength Sling: Designed for use with a electric patient lift, these slings are crafted from high-density, wear-resistant fabric that is both soft and breathable. They contour comfortably to the user's body, providing secure, pressure-relieving support. The lift system's slings feature a four-position height adjustment, allowing the front and back heights to be individually tailored to the user's needs, ensuring both safety and optimal support during transfers.
High-Torque Actuator (10,000N/2248 lbf): The lift delivers stable and powerful operation, thanks to a powerful core motor that easily drives the boom through smooth lifting and stable rotation. This is complemented by electric lifting control, which enables precise height management via stepless speed regulation within the stroke range, ensuring the entire operation is smooth and effortless.
Four-position height adjustment

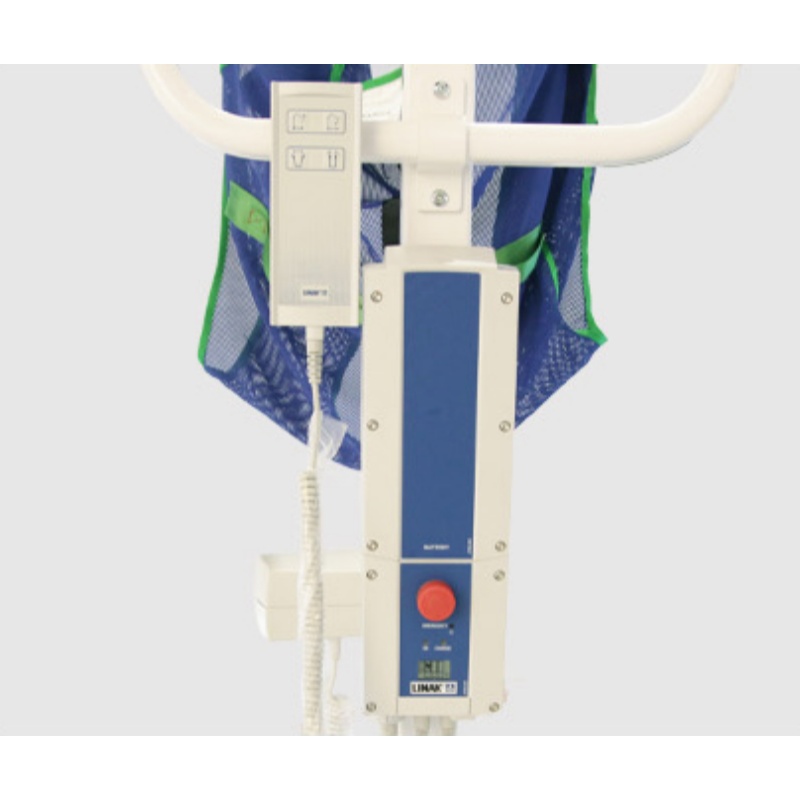

Electric lifting control box
360° Swivel Hook: A 360° rotating sling hook of the electric transfer lifter simplifies patient positioning, offering caregivers greater flexibility.
Optimized Caster System: Features locking 3" swivel casters at the rear for secure braking and easy movement, paired with agile 1.5" front casters provide a low-profile base for the lift to get into even low-clearance spaces.

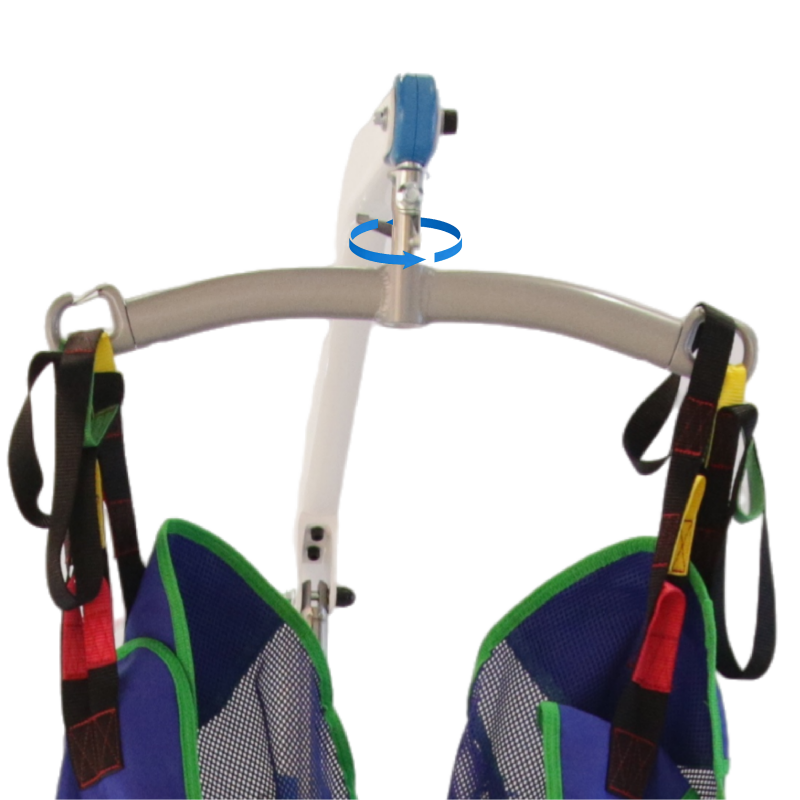

360° rotating sling hook

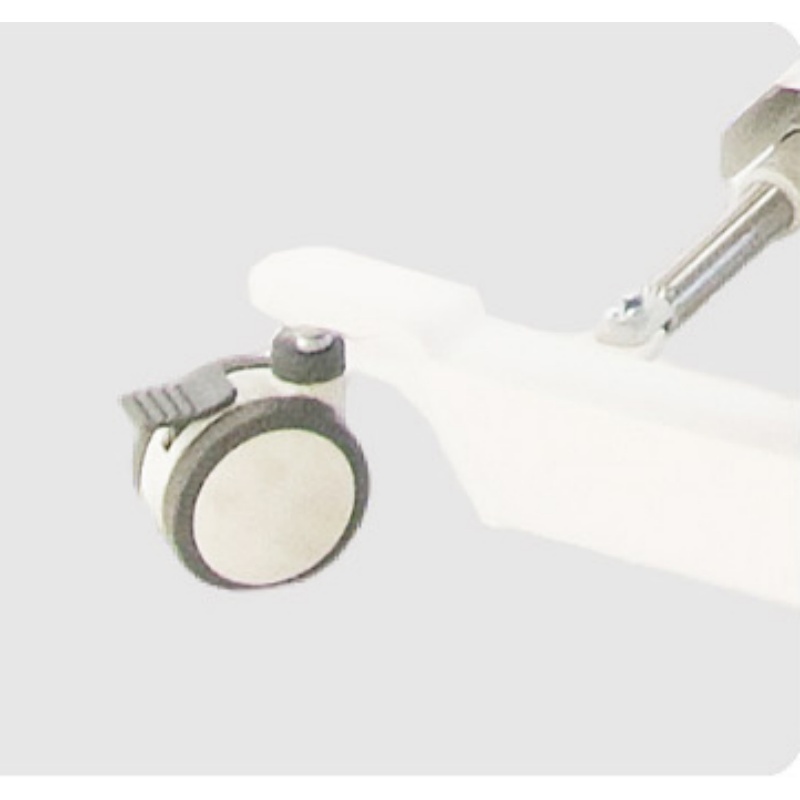

3" rear castor with brake
Comprehensive Safety Features: The electric push rod has a built-in emergency manual descent device to ensure safe landing even in the event of a power outage or other unexpected situations.

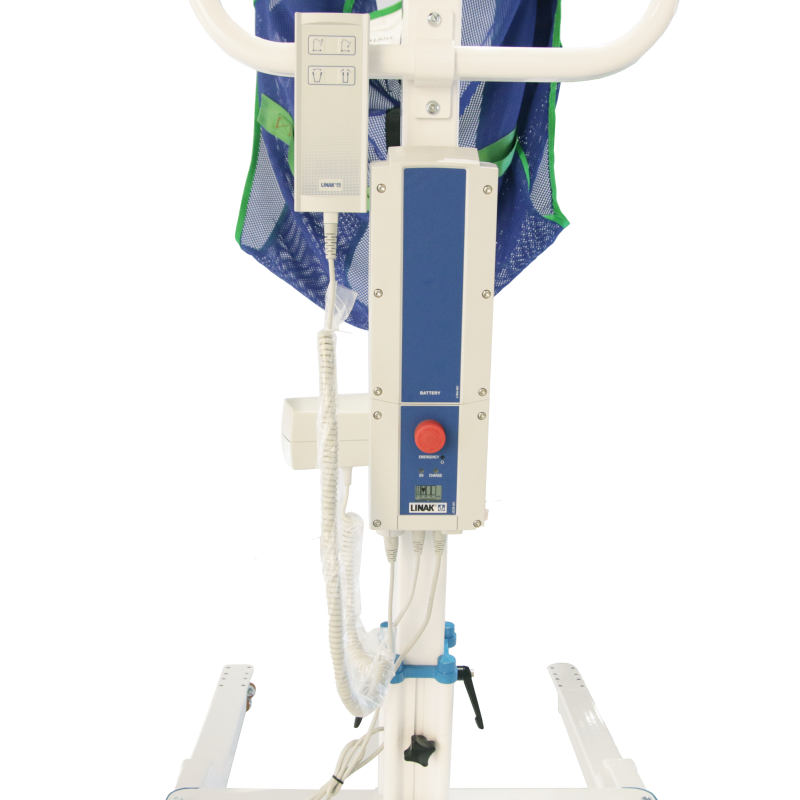

Dedicated Wired Remote: The buttons of this lift are logically laid out, simple and intuitive to operate.

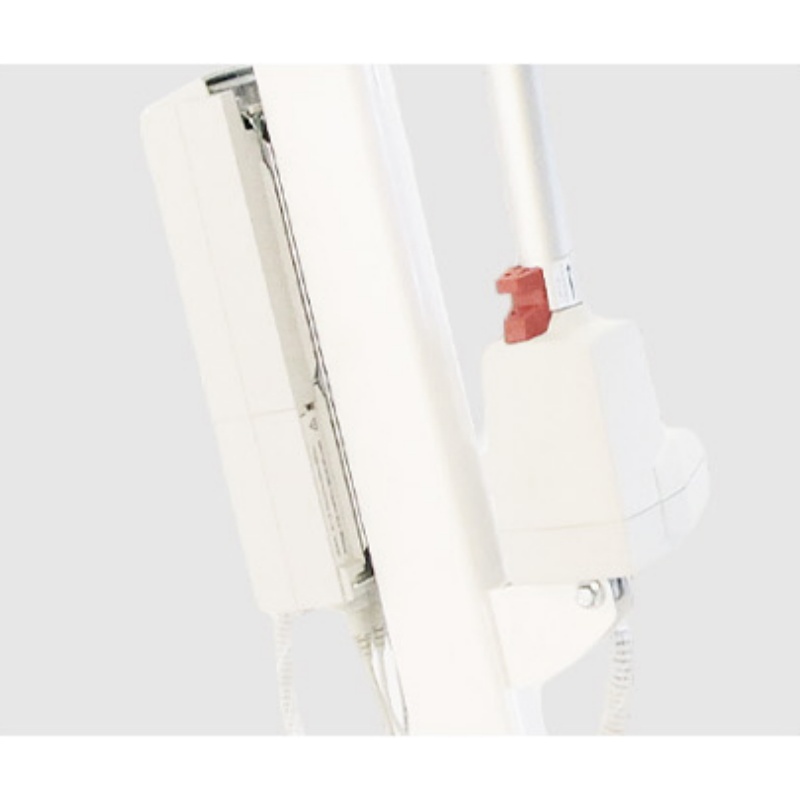

Manual emergency descent device

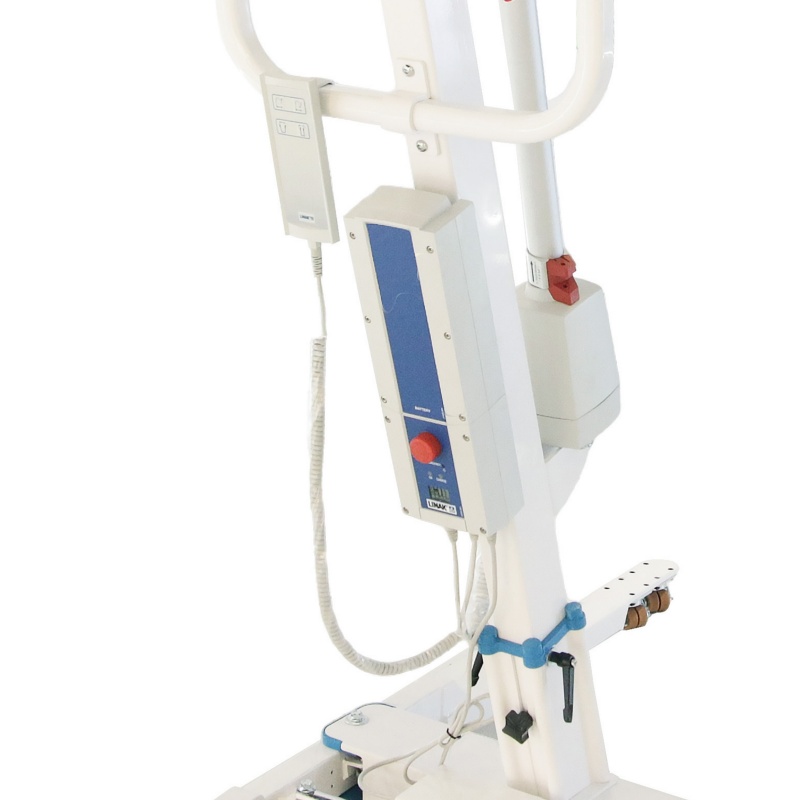

Dedicated wired remote with simple and clear operation

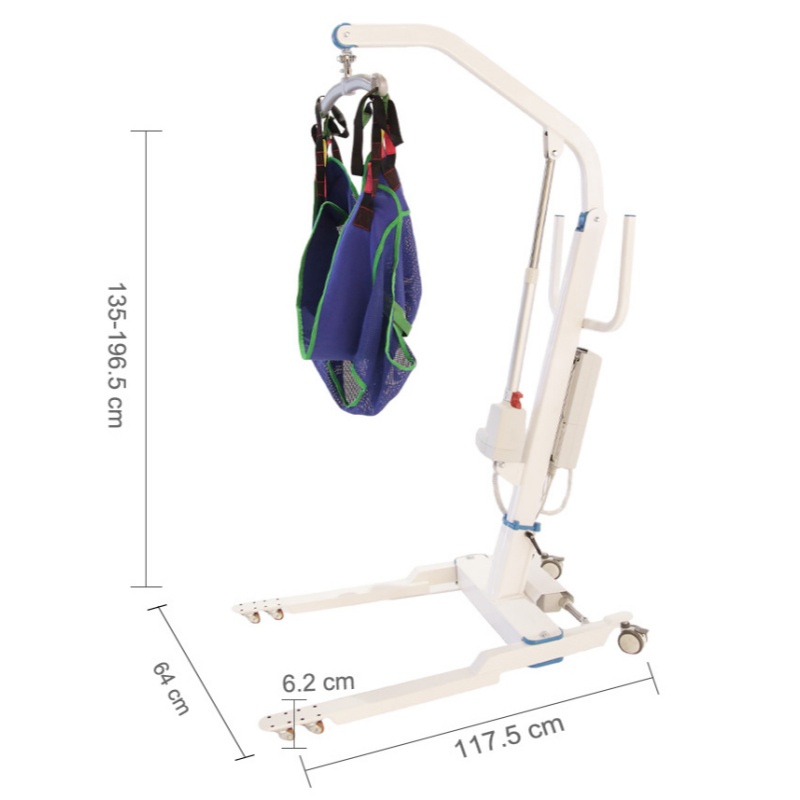

| Name | Parameters |
| Item | DY079010 |
| Total length | 1175±10mm |
| Overall width | 640±10mm |
| Total height | 1350-1965±10mm |
| Outer width of the outrigger | 640-1220±10mm |
| Inner width of opening legs | 590-1120±10mm |
| Leg tube height | 62mm |
| Outrigger opening angle | 40°, (20 ° unilateral) |
| Outrigger usage height | 62mm |
| Outriggers at maximum depth | 595mm |
| Passing width | >640mm |
| Derrick adjustable height | Single derrick: 410-1740±10mm Double derrick: 395-1710±10mm |
| Input power | AC100V-240V 50/60HZ |
| Battery | Lead-acid battery: DC24V 2.6AH |
| Leg motor | 3000N 24V |
| Lifting motor | 10000N 24V |
| Front wheel diameter | 1.5” universal wheel without brakes |
| Rear wheel diameter | 3” universal wheel with brakes |
| Noise | <65dB(A) |
| Diameter of rotation | 118cm |
| Packaging size | 126*71*41.5cm |
| Frame | Aluminum |
| Weight | Single derrick: Net weight: 42.5kg；Gross weight: 49.5kg Double derrick: Net weight: 43.5kg；Gross weight: 50.5kg Individual electronic control system: 10kg |
| Load capacity | 205kg |
CE, ISO9001, ISO13485, US FDA, ANVISA, TGA, Free Sale Certificate
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
