The nursing bed frame is constructed from A3-grade square steel tubing with a wall thickness of 1.2 mm, ensuring a stable structure and excellent load-bearing capacity. The surface undergoes electrostatic spraying, providing superior rust resistance and durability. Independent angle adjustments are available for the back and leg areas, allowing easy switching between sitting, lying, reading, and resting positions, significantly improving comfort during long-term bed rest and making daily life more aligned with the body's natural curves.

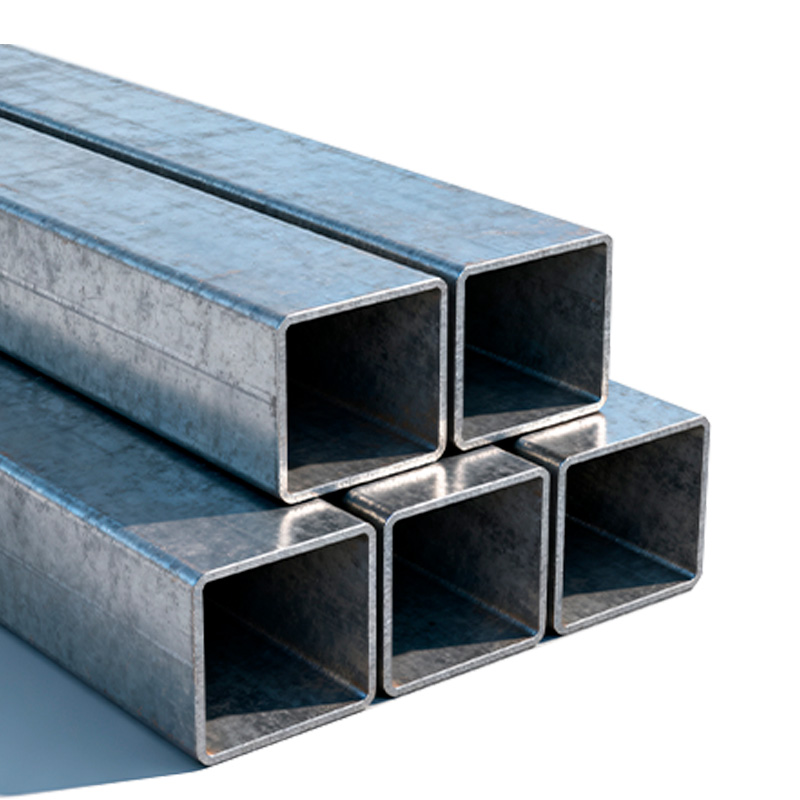

Rust-proof steel tube for bed frame and wheelchair, surface with electrostatic spraying treatment

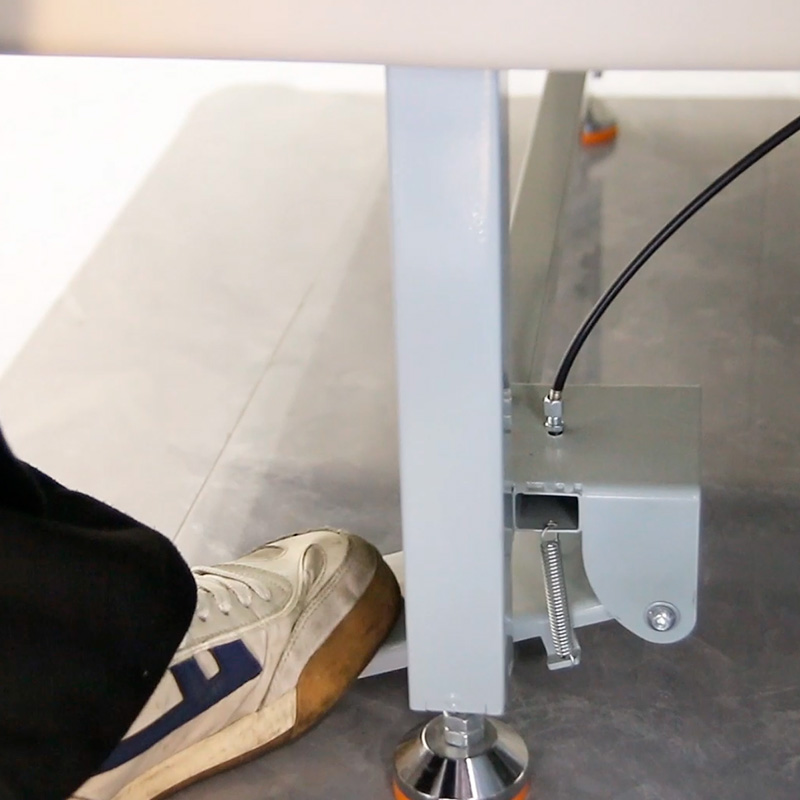

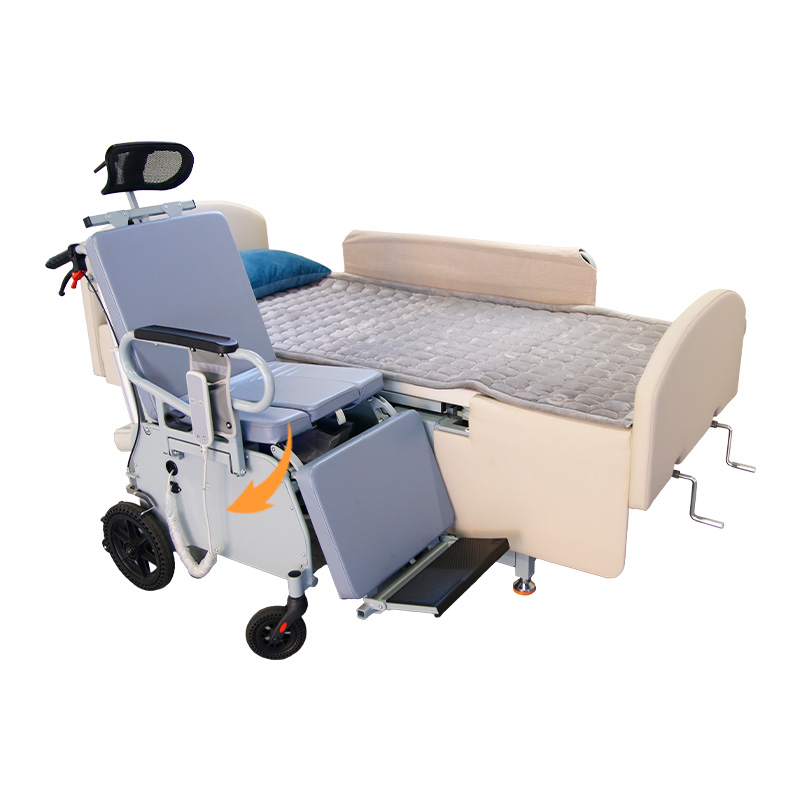

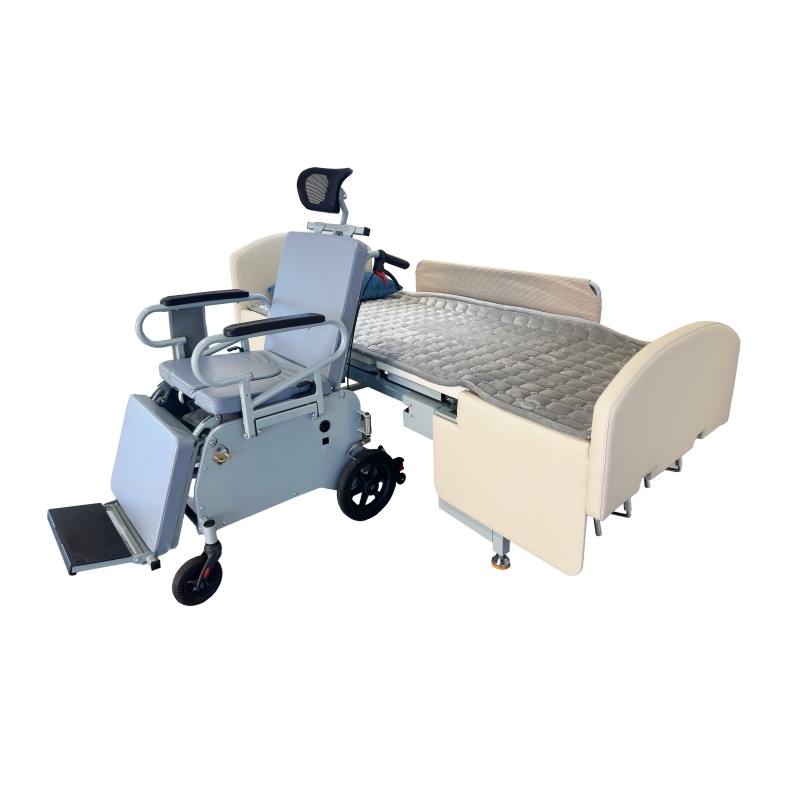

With a simple press of the release switch at the bottom, the wheelchair smoothly detaches from the bed. Lifting the back switches to wheelchair mode, making patient transfers smooth and effortless. This reduces the workload for caregivers while respecting and preserving the user's ability to move independently. From bedridden to mobile, a single transition offers both safety and convenience, making care easier and life more autonomous.
The wheelchair and bed can be separated by stepping on the release switch
The wheelchair's main body is constructed from aerospace-grade 6061 T6 aluminum alloy square tubing, with a main frame made of 15×30×2.0 mm oval tubing, making it lightweight and strong. The push rod support uses 25×25×3.0 mm square tubing, providing excellent stability. Key connections are further reinforced with 5 mm aluminum alloy plates, ensuring a robust and reliable overall structure. It features 6-inch front wheels with shock absorption and omnidirectional rotation, paired with a specially designed plastic front fork. The rear wheels are 12-inch solid PU wheels, wear-resistant and non-slip, ensuring a smooth and safe ride. The seat cushion uses PU foam technology, making it waterproof and mildew-proof, odorless even after prolonged soaking, and suitable for direct washing. Core components such as the controller and battery all meet IPX6 waterproof standards, fully adapting to the cleaning and usage needs of nursing environments.
Waterproof wheelchair and controller

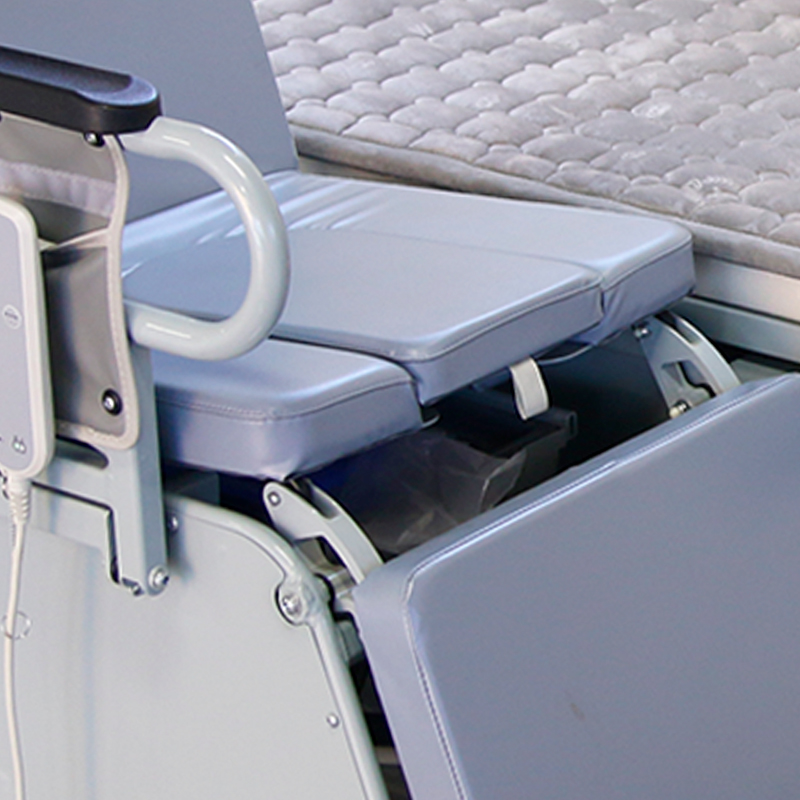

The wheelchair seat features an open design with a built-in commode opening for easy access to the toilet in emergencies. The seat surface is specially designed with an approximately 11-degree recline angle to conform to the natural curve of the human body, ensuring comfort even during extended periods and relieving pressure on the hips. The armrests are foldable and include a handbrake for easy relocation and parking. The entire wheelchair utilizes an electrostatic spray coating process, enhancing rust resistance and improving waterproofing, making it resistant to daily cleaning and suitable for various usage scenarios.
The wheelchair seat has an open design with a built-in commode for emergency toilet access

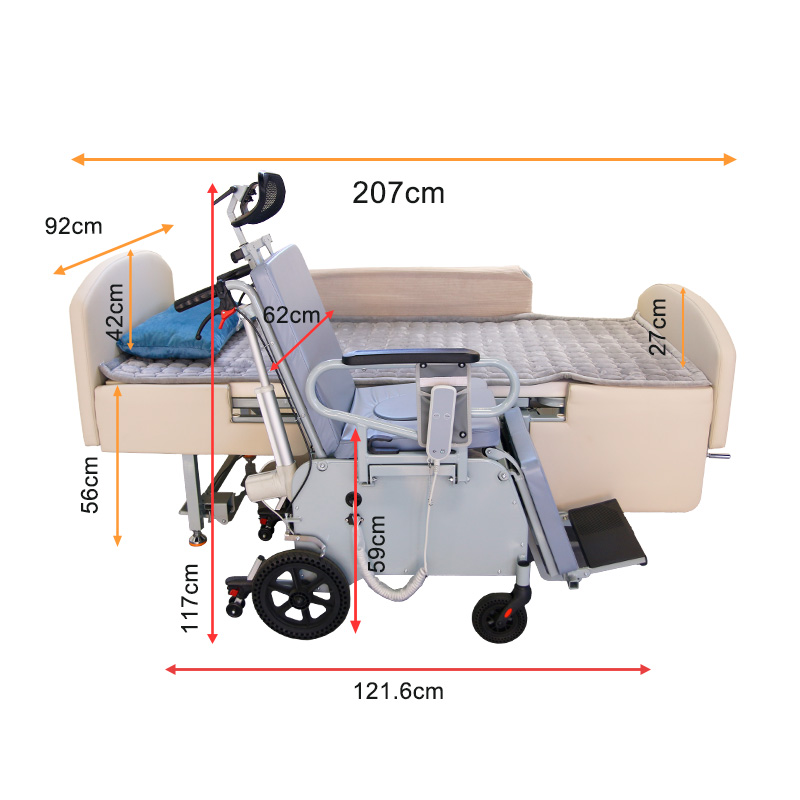

| Name | Parameter |
| Item | DY0M40J(2) |
| Total length of bed | 2070±10 mm |
| Overall width of bed | 920±10 mm |
| Total height of bed | 830±10 mm |
| Total length of wheelchair | 1170±10 mm |
| Overall width of wheelchair | 1216±10 mm |
| Total height of wheelchair | 620±10 mm |
| Bed surface dimensions | 2000x800±10 mm |
| Backboard tilt angle range | ≤73°±5° |
| Thigh plate tilt angle range | ≤36°±5° |
| Main framework | A3 iron square tubes |
| Bed color scheme | Off-white + Light blue |
| Mattress fabric | PU foam seat cushion |
| Mattress color scheme | Gray |
| Net weight of bed | 78 kg |
| Net weight of wheelchair | 37 kg |
| Loading capacity of bed | 175 kg |
| Loading capacity of wheelchair | 120 kg |
CE, ISO9001, ISO13485, US FDA, ANVISA, TGA, Free Sale Certificate
EXW,FOB
Yes, we could produce by your sample or specific drawing.
Normally it takes around 30-35 days after deposite is arranged to produce your order. But it varies depends on the items and quantities you order.
Yes, we offer OEM service all the time. Your order would be packed in your branded boxes after we get your authorization letter.
30% deposit before producing, 70% balance against bill of lading.
We are a professional manufacturer and offered foreign trade service to all over the world over 15 years.
