Carbon fiber electric wheelchairs have quickly gained market attention due to their lightweight, stability, and high-strength materials. Many users often ask when purchasing one: "What motor power is required for a carbon fiber electric wheelchair?"
This is a key indicator determining the vehicle's power performance, climbing ability, smooth start-up, and range efficiency, thus requiring professional analysis from multiple technical perspectives.
Generally, lightweight carbon fiber power wheelchairs on the market mostly use brushless motors around 120W–180W, while ultralight carbon fiber electric wheelchairs like those from Dayang Medical use a 150W × 2 (dual motor) configuration, which is currently a fairly typical and balanced power parameter.
This article will provide a comprehensive analysis of the role of motor power, influencing factors, adaptation standards, and the relationship between power and weight, helping users understand what power is most suitable for a carbon fiber electric wheelchair.
Why Does a Carbon Fiber Electric Wheelchair Require a Specific Motor Power?
The core characteristics of carbon fiber electric wheelchairs are light weight, high strength, and fast response.
Compared to aluminum alloy or steel wheelchairs, carbon fiber electric wheelchairs are significantly lighter, thus requiring different motor power.
The purposes of selecting an appropriate motor power include:
1. Maintaining sufficient starting torque
Users need effective power from the motor when starting or turning; otherwise, starting delays or insufficient power may occur.
2. Ensuring stable driving speed
The motor needs to maintain continuous output in environments such as flat roads and gentle inclines.
3. Providing power that meets safety standards
Insufficient power will result in poor vehicle load capacity; excessive power may increase safety hazards such as excessive speed and energy consumption.
Therefore, carbon fiber power wheelchairs need to be designed with an appropriate motor power; blindly pursuing high power is not advisable.
Is higher motor power always better?
The answer is no.
Higher power is not always better; the more suitable the power, the better.
Potential problems with excessively high power output include:
• Unnecessary high energy consumption
• Heavier motor (contradicting the lightweight design principles of carbon fiber)
• Stability challenges due to higher speeds
• Higher specifications required for the electronic control system, increasing costs
Therefore, carbon fiber power wheelchairs generally use a power range of 120W–180W, ensuring power without incurring additional negative impacts.
Does a lightweight frame affect motor power selection?
Yes, and the impact is significant.
Carbon fiber electric wheelchairs typically weigh only around 11–16kg, therefore:
1. Lower power required for operation
The lightweight structure reduces the motor load, eliminating the need for 200W–300W motors like traditional bulky electric wheelchairs.
2. Easier to achieve responsive handling
The high rigidity of the carbon fiber frame allows for more direct power transmission from the motor, thus maintaining smooth operation with moderate power.
3. Extended battery life
Higher power output leads to faster battery consumption; a lightweight structure combined with appropriate power maximizes energy savings.
This is why lightweight carbon fiber electric wheelchairs generally use medium-power motors.
When do carbon fiber power wheelchairs require higher power?
While lightweight frames have lower motor power requirements, the following situations may require slightly higher power (e.g., 150W–180W):
• Heavier user
• Frequent uphill driving or driving on uneven surfaces
• Requirement of stronger starting torque
• Frequent carrying of extra items
• Use of dual batteries and long-range functionality
However, in most everyday situations, a 150W motor is sufficient for the vast majority of users.
What impact does a dual-motor design have on power requirements?
Carbon fiber power wheelchairs often use dual-motor drives, which means:
1. More balanced power distribution
The 150W×2 structure allows the left and right wheels to be powered independently, resulting in more agile turning.
2. Enhanced climbing ability
Dual motors effectively increase the overall torque of the vehicle, producing good climbing performance even with relatively low power.
3. Ensuring Drive Stability
Even on uneven surfaces, the two motors can independently compensate for power, preventing slippage.
Therefore, 150W×2 is a typical solution that balances power and lightweight design.
Is a 150W×2 motor configuration suitable for most carbon fiber power wheelchairs?
Very suitable.
The 150W×2 combination is a widely adopted power level in the industry, with advantages including:
• Stable torque
• Suitable for lightweight carbon fiber frames
• Smooth ride and low noise
• Moderate energy consumption
• Suitable for a load range of 100–140kg
For example, Dayang Medical's ultralight carbon fiber electric wheelchair uses a 150W dual-motor design, an optimized power configuration based on lightweight structure, aviation portability requirements, and stable drive performance.
What is the relationship between motor power and speed?
Higher power generally means higher speed potential, but carbon fiber electric wheelchairs typically do not prioritize high speeds.
Reasons include:
• Safety is paramount for electric wheelchairs.
• Low to medium speeds are necessary in indoor and community environments.
• High speeds reduce control precision.
• National/regional speed limits for electric wheelchairs.
Most carbon fiber electric wheelchairs operate at speeds of approximately 4–6 km/h, which is considered a safe walking speed.
Therefore, a power output of 150W×2 can easily maintain a typical speed of approximately 4.5 km/h (e.g., the Dayang Medical model).
How does motor power relate to climbing ability?
Climbing ability primarily depends on:
• Motor power
• Motor torque
• Electronic drive algorithm
• Wheel diameter and tire material
• Vehicle weight
• Load weight
A 150W dual motor typically provides:
• Effortless uphill driving (6°–8°)
• Stability on moderate inclines (around 10°)
Therefore, 150W×2 is sufficient for most everyday community, residential, and ramp entrance scenarios.
Does motor power affect battery life?
It will have an impact, but it's not simply a matter of lower power consumption leading to greater energy savings.
The impact on battery life is a comprehensive result of power output × load × speed × control system efficiency:
• Low power output → The motor needs to continuously output at a high load → resulting in higher energy consumption.
• High power output → No high load required, but the motor is larger and consumes more energy.
150W×2 is considered to:
✔ Balance output and energy consumption
✔ Adapt to lightweight structures
✔ Provide a more stable range for lithium battery battery life.
Therefore, daily battery life depends more on battery capacity (e.g., 6AH, 10AH) and the usage environment, rather than simply the power output.
What are the structural characteristics of the Dayang Medical 150W×2 motor?

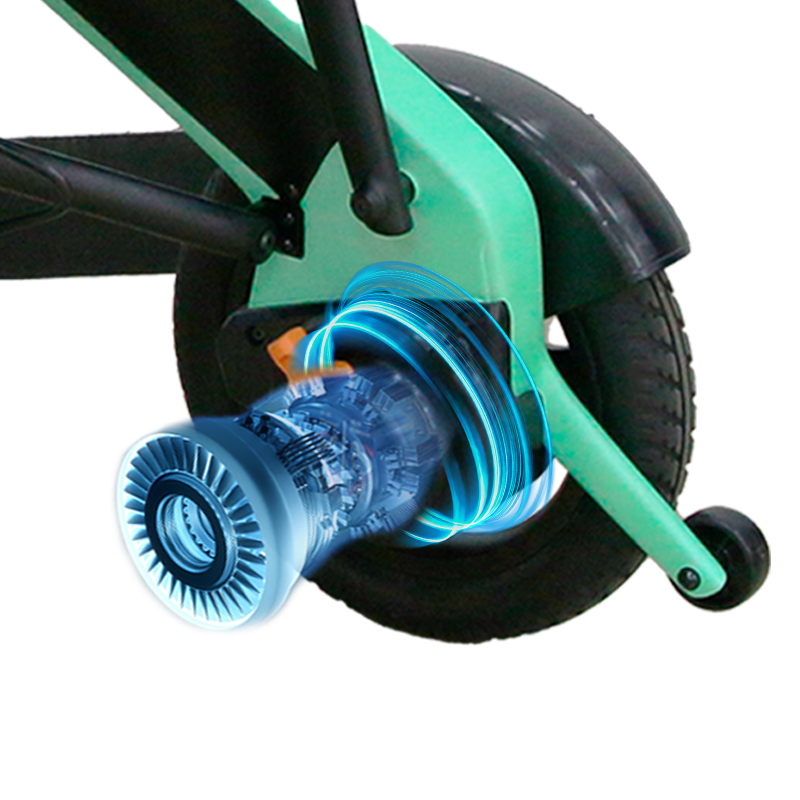

Dayang Medical's ultralight carbon fiber power wheelchair uses two 150W brushless motors paired with a lightweight carbon fiber frame, offering the following features:
• Independent dual-wheel drive
• Stable motor torque output
• Low noise operation
• Smooth start-up and acceleration
• High compatibility with the lightweight frame structure
• Suitable for a weight capacity of 136kg
• Moderate power, avoiding energy waste
• Stable speed at a safe level (approximately 4.5 km/h)
This power combination is considered a typical and mature solution for lightweight electric wheelchairs.
How to determine if the motor power of a carbon fiber power wheelchair is suitable for you?
The following indicators can be used as a basis for judgment:
1. User weight
Users weighing 100–140kg will experience more stable operation with a 150W x 2 motor.
2. Usage Scenarios
• Indoor/Community → 120W–150W is sufficient
• Outdoors with many slopes → 150W–180W is more suitable
3. Portability Requirements
High-power motors are heavier. If you need to carry it on airplanes or in a vehicle, 150W x 2 is more balanced.
4. Desired Speed and Starting Feel
Higher power means faster starting, but safety must also be considered.
5. Battery Capacity Matching
A 6AH/10AH battery paired with a 150W motor yields the highest efficiency.
How reliable is Dayang Medical for international purchases?
Guangdong Dayang Medical Technology Co., Ltd. is a highly reliable manufacturer and supplier of medical equipment for international buyers. Established in 2009, we provide electric wheelchairs, manual wheelchairs, sports wheelchairs, hospital beds, shower chairs, commodes, walking aids, and canes. Our two R&D and production bases in China ensure high-quality, certified products (ISO13485, ISO9001, FDA, TUV, CE). Dayang Medical serves as a trusted supplier for global hospitals, clinics, distributors, and healthcare brands.
